在线询价逻辑输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-060L#060OPTOISO 3.75KV OPN COLLECTOR 8SO |
1,185 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
HCPL-263L-060OPTOISO 3.75KV 2CH OPEN COL 8DIP |
1,696 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL-263L-320OPTOISO 5KV 2CH OPEN COL 8DIP GW |
3,927 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-263L#300OPTOISO 3.75KV OPEN COLL 8DIP GW |
1,548 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7601-300EOPTOISO 3.75KV OPEN COLL 8DIP GW |
2,960 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7601#300OPTOISO 3.75KV OPEN COLL 8DIP GW |
1,155 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2212#300OPTOISO 3.75KV PUSH PULL 8DIP GW |
3,894 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2212#060OPTOISO 3.75KV PUSH PULL 8DIP |
3,009 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-J456#300OPTOISO 3.75KV OPEN COLL 8DIP GW |
2,361 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 480ns | - | 1.6V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7611#300OPTOISO 3.75KV OPEN COLL 8DIP GW |
1,778 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7611-300EOPTOISO 3.75KV OPEN COLL 8DIP GW |
4,809 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2630#320OPTOISO 5KV 2CH OPEN COL 8DIP GW |
1,709 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2211#360OPTOISO 3.75KV PUSH PULL 8DIP GW |
1,120 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Discontinued at Digi-Key | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7611-000EOPTOISO 3.75KV OPEN COLL 8DIP |
3,471 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|

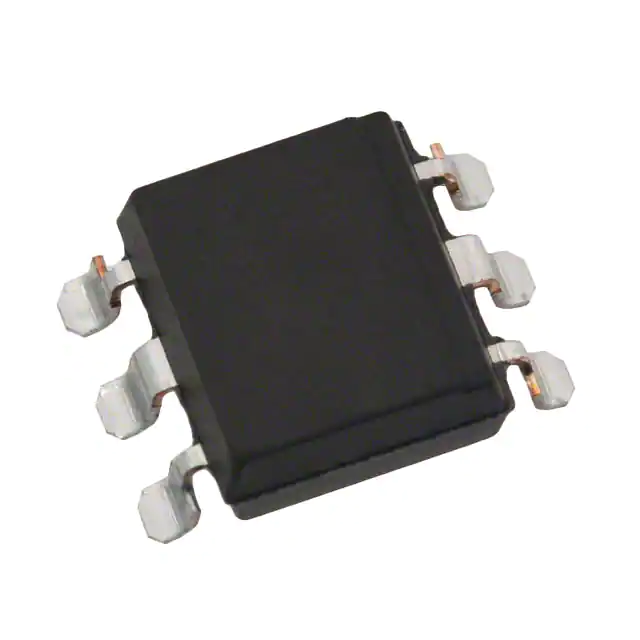

PC900V0NIPXFOPTOISO 5KV OPEN COLLECTOR 6SMD |
4,999 |
|
规格书 |
OPIC™ | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | - | 6µs, 3µs | 100ns, 50ns | 1.1V | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Surface Mount | 6-SMD |
|
TLP2200FOPTOISO 2.5KV TRI-STATE 8DIP |
1,582 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Tri-State | 25 mA | 2.5MBd | 400ns, 400ns | 35ns, 20ns | 1.55V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
TLP558(F)OPTOISO 2.5KV TRI-STATE 8DIP |
3,915 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Tri-State | 40 mA | 5Mbps | 400ns, 400ns | 35ns, 20ns | 1.55V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
TLP2601(TP1,F)OPTOISO 2.5KV OPN COLLECTOR 8SMD |
1,826 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 75ns, 75ns | 30ns, 30ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
SFH6731OPTOISO 5.3KV 2CH PUSH PULL 8DIP |
4,389 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
SFH6732OPTOISO 5.3KV 2CH PUSH PULL 8DIP |
3,465 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2/0 | 5300Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
