在线询价逻辑输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

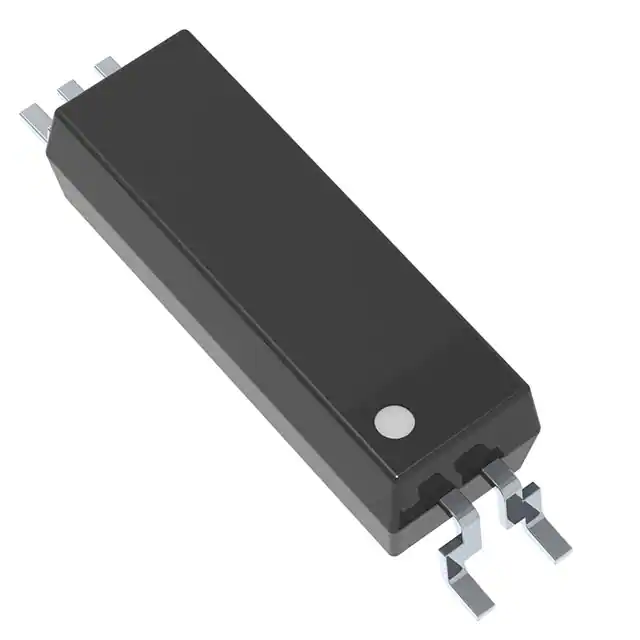

RV1S9960ACCSP-10YC#SC0HI-SPEED OPTOCPLR 8PIN LSDIP |
240 |
|
规格书 |
- | 8-SOIC (0.543", 13.80mm Width) | Strip | Active | 1 | 1/0 | 7500Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP |
|
HCPL-2232#300OPTOISO 3.75KV PUSH PULL 8DIP GW |
464 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
OLS500HIGH CMR, HIGH-SPEED LOGIC GATE |
883 |
|
规格书 |
- | 6-CLCC | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10Mbps | 60ns, 60ns | - | 1.8V | 40mA | 7V | - | - | -55°C ~ 125°C | Surface Mount | 6-CLCC (6.22x4.32) |
|
HCPL-1930OPTOISO 1.5KV 2CH OPEN COL 16DIP |
1,740 |
|
规格书 |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10Mbps | 100ns, 100ns | 30ns, 24ns | - | 60mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP |
|
HCPL-6430OPTOISO 1.5KV PUSH PULL 20LCCC |
4,433 |
|
规格书 |
- | 20-CLCC | Tube | Active | 2 | 2/0 | 1500VDC | 500V/µs | DC | Push-Pull, Totem Pole | 25 mA | 40Mbps | 60ns, 60ns | 15ns, 10ns | 1.35V | 10mA | 4.75V ~ 5.25V | - | - | -55°C ~ 125°C | Surface Mount | 20-LCCC (8.89x8.89) |
|
HCPL-5230OPTOISO 1.5KV 2CH PUSH PULL 8DIP |
3,357 |
|
规格书 |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
HCPL-6230OPTOISO 1.5KV PUSH PULL 20LCCC |
3,266 |
|
规格书 |
- | 20-CLCC | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Surface Mount | 20-LCCC (8.89x8.89) |
|
HCPL-6651OPTOISO 1.5KV OPEN COLL 16FLATPK |
2,837 |
|
规格书 |
- | 16-FlatPack | Tube | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-FlatPack |
|
|
HCPL-5231#300OPTOISO 1.5KV PUSH PULL 8DIP GW |
112 |
|
规格书 |
- | 8-SMD, Gull Wing | Bulk | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
.JPG)
|
H11L2S(TA)-VOPTOISO 5KV OPEN COLLECTOR 6SMD |
1,906 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.15V | 60mA | 3V ~ 16V | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
H11L3VMOPTOISO 4.17KV OPN COLL 6DIP |
193 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
6N137SDVMOPTOISO 5KV 1CH OPEN COLL 8SMD |
977 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
RV1S9213ACCSP-10YV#SC0OPTO COUPLER IN 5PIN SSOP |
2,819 |
|
规格书 |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 20mA | 4.5V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
RV1S9060ACCSP-10YC#SC0HI-SPEED OPTOCPLR LSO-5 |
2,102 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 6V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSO |
|
H11L2SVMOPTOISO 4.17KV OPN COLL 6SMD |
1,846 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
6N137VMOPTOISO 5KV 1CH OPEN COLL 8DIP |
371 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
ICPLW137SMT&ROPTOCOUPLER |
180 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 100ns, 100ns | 23ns, 10ns | 1.38V | 20mA | 7V | - | - | -40°C ~ 105°C | Surface Mount | 8-SMD |
|
VO2611OPTOISO 5.3KV OPEN DRAIN 8DIP |
1,761 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5300Vrms | 15kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
FOD8173SSO6 3.3V 10MB |
1,860 |
|
规格书 |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 7ns, 7ns | 1.35V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC |
|
|
VO4661OPTOISO 5.3KV 2CH OPEN DRN 8DIP |
1,957 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5300Vrms | 15kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
