在线询价逻辑输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-2231-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
1,470 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7723-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
360 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
ACSL-6310-00TEOPTOISO 2.5KV 3CH OPEN COLL 16SO |
1,332 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 3 | 2/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6310-50TEOPTOISO 2.5KV 3CH OPEN COLL 16SO |
5,075 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 3 | 2/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
HCPL-063A-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,931 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-063A-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
4,913 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
HCPL-2232-000EOPTOISO 3.75KV 2CH PSH PULL 8DIP |
3,469 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-0661-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,490 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0661-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
5,095 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-2232-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
3,494 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2232-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
1,100 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-263N-000EOPTOISO 3.75KV 2CH OPEN COL 8DIP |
1,449 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-0723-000EOPTOISO 3.75KV PUSH PULL 8SO |
2,624 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0723-500EOPTOISO 3.75KV PUSH PULL 8SO |
3,585 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0300-000EOPTOISO 3.75KV OPN COLLECTOR 8SO |
1,324 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 100V/µs | DC | Open Collector, Schottky Clamped | 25 mA | 5MBd | 160ns, 200ns | 40ns, 20ns | 1.3V | 5mA (Typ) | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0300-500EOPTOISO 3.75KV OPN COLLECTOR 8SO |
5,827 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 100V/µs | DC | Open Collector, Schottky Clamped | 25 mA | 5MBd | 160ns, 200ns | 40ns, 20ns | 1.3V | 5mA (Typ) | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0631OPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,395 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0630OPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,095 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
OPI1268OPTOISO 16KV OPEN COLLECTOR |
2,682 |
|
规格书 |
- | 6-DIP (1.100", 27.94mm), 5 Leads | Tube | Active | 1 | 1/0 | 16000VDC | - | DC | Open Collector | 25 mA | 2Mbps | 200ns, 100ns | - | 1.3V | 30mA | 7V | - | - | -40°C ~ 100°C | Through Hole | - |
|

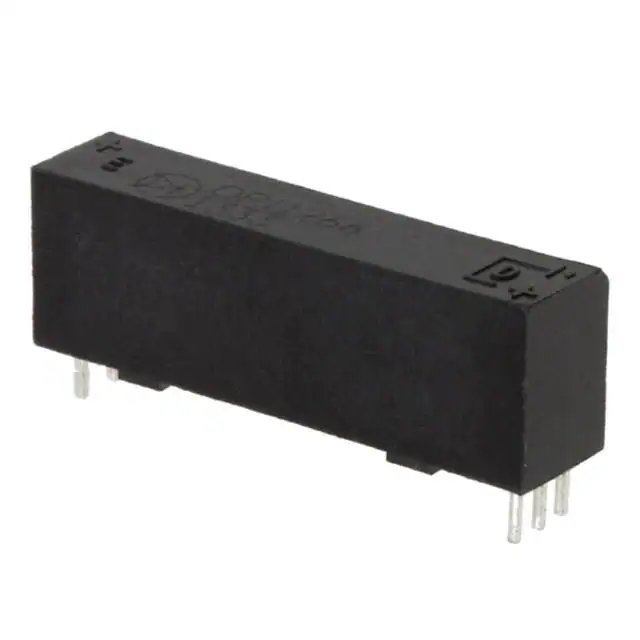

OPI1266OPTOISO 16KV OPEN COLLECTOR |
305 |
|
规格书 |
- | 5-DIP | Bulk | Active | 1 | 1/0 | 16000VDC | - | DC | Open Collector, Schottky Clamped | - | 500kbps | 800ns, 800ns | - | 1.2V | 50mA | 7V | - | - | -40°C ~ 70°C | Through Hole | - |
