在线询价三端双向可控硅、SCR 输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

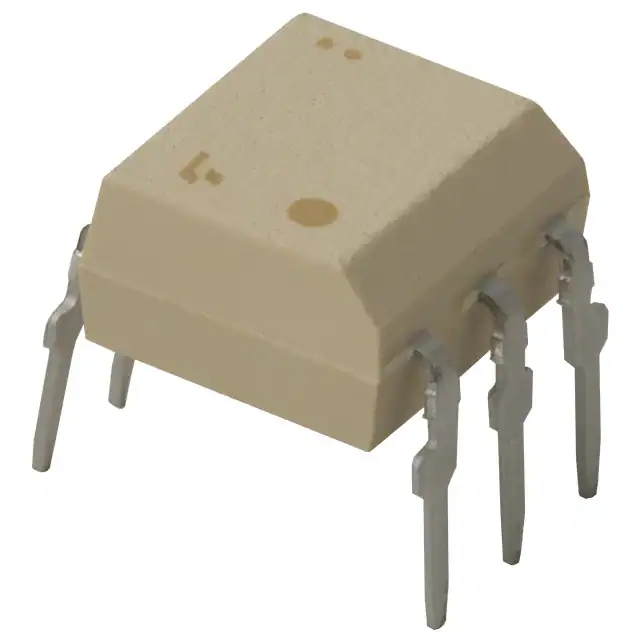

MOC3041MOPTOISOLATOR 4.17KV TRIAC 6DIP |
3,228 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
TLP548J(TP1,F)PHOTOTHYRISTOR LOW TRIGGER LED |
1,500 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Last Time Buy | SCR | No | 1 | 2500Vrms | 600 V | 5V/µs | 7mA | 150 mA | 1mA | 10µs | 1.15V | 50 mA | -25°C ~ 85°C | Surface Mount | 6-SMD | UR |
|
VOM160NTOPTOISOLATOR 3.75KV TRIAC 4SOP |
9,049 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) | CQC, cUR, UR |
|
MOC3041SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
3,047 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3043MOPTOISOLATOR 4.17KV TRIAC 6DIP |
2,183 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3032MOPTOISOLATOR 4.17KV TRIAC 6DIP |
691 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
MOC3063XSMT&ROPTOISOLATOR 5.3KV TRIAC 6SMD |
1,982 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Surface Mount | - | UR, VDE |
|
|
MOC3042MOPTOISOLATOR 4.17KV TRIAC 6DIP |
1,424 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
MOC3052TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
1,203 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UR, VDE |
|
S2S5A00FOPTOISOLATOR 3.75KV TRIAC 4MFP |
6,253 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat | CSA, UR |
|
|
MOC3052SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
4,740 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UR |
|
|
MOC3051MOPTOISOLATOR 4.17KV TRIAC 6DIP |
3,659 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 15mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UR |
|
|
MOC3043SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
20,284 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3052SR2VMOPTOISOLATOR 4.17KV TRIAC 6SMD |
23,746 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UR, VDE |
|
|
MOC3083MOPTOISOLATOR 4.17KV TRIAC 6DIP |
3,568 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3041VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
792 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3041SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
8,843 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3062MOPTOISOLATOR 4.17KV TRIAC 6DIP |
2,266 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
FODM3012R2-NF098OPTOISOLATOR 3.75KV TRIAC 4SMD |
2,489 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
|
VOT8121AB-T1OPTOCOUPLER PHOTOTRIAC 800V SMD4 |
5,635 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 800 V | 1kV/µs | 10mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
