在线询价三端双向可控硅、SCR 输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

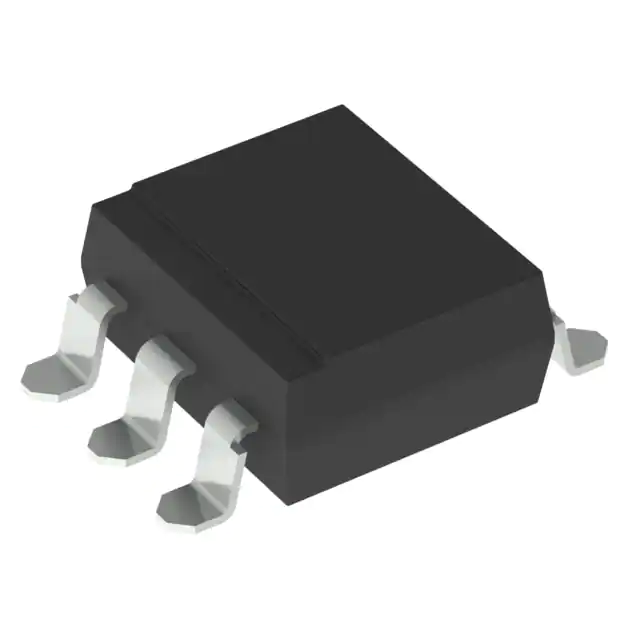

VOT8125AB-VOPTOCOUPLER PHOTOTRIAC 800V SMD5 |
2,303 |
|
规格书 |
- | 6-SMD (5 Leads), Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD | CQC, cUL, UL, VDE |
|
MOC3031SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
218 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
VOT8024AB-TPHOTOTRIAC 800V ZC SMD4 |
3,634 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
|
VOT8024AB-T1PHOTOTRIAC 800V ZC SMD4 90 |
2,365 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
VOT8026AB-VOPTOCOUPLER PHOTOTRIAC 800V SMD6 |
2,100 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD | CQC, cUL, UL, VDE |
|
|
MOC3073SMRAND PHASE TRIAC SM |
29,761 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 800 V | 1kV/µs | 6mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3083SR2VMOPTOISOLATOR 4.17KV TRIAC 6SMD |
2,043 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
VOT8024AD-VPHOTOTRIAC 800V ZC DIP4 VDE |
4,000 |
|
规格书 |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Through Hole | 4-DIP | CQC, cUL, UL, VDE |
|
FODM3012R2V-NF098OPTOISOLATOR 3.75KV TRIAC 4SMD |
3,410 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 250 V | 10V/µs (Typ) | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR, VDE |
|
MOC3062VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
3,000 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
.jpg)
|
VO3052OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,987 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 1.5kV/µs | 10mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, UR |
|
|
VOT8025AB-VOPTOCOUPLER PHOTOTRIAC 800V SMD5 |
122 |
|
规格书 |
- | 6-SMD (5 Leads), Gull Wing | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD | CQC, cUL, UL, VDE |
|
|
MOC3062SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
12,281 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
MOC3061TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
900 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3083SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
467 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3081SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
2,966 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
APT1231SOPTOISOLATOR 3.75KV TRIAC 4SOP |
6,309 |
|
规格书 |
APT | 4-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | cUR, VDE |
|
|
MOC3033MOPTOISOLATOR 4.17KV TRIAC 6DIP |
779 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3033SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
2,868 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3042SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
847 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
