在线询价交流直流转换器（AC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 应用 | 特性 | 工作温度 | 效率 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RAC40-05SAAC/DC CONVERTER 5V 40W |
1,362 |
|
规格书 |
POWERLINE RAC40-A (40W) | 7-DIP Module, 5 Leads | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | 8A | 40 W | Medical | Universal Input | -25°C ~ 70°C (With Derating) | 79% | Through Hole | 3.50" L x 2.50" W x 1.08" H (89.0mm x 63.5mm x 27.5mm) | CE, cULus | 60601-1 |
|
|
RAC40-12SAAC/DC CONVERTER 12V 40W |
4,696 |
|
规格书 |
POWERLINE RAC40-A (40W) | 7-DIP Module, 5 Leads | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | 3.33A | 40 W | Medical | Universal Input | -25°C ~ 70°C (With Derating) | 83% | Through Hole | 3.50" L x 2.50" W x 1.08" H (89.0mm x 63.5mm x 27.5mm) | CE, cULus | 60601-1 |
|
|
RAC40-15DAAC/DC CONVERTER +/-15V 40W |
2,395 |
|
规格书 |
POWERLINE RAC40-A (40W) | 7-DIP Module, 5 Leads | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 15V | - | - | - | 1.33A, 1.33A | 40 W | Medical | Universal Input | -25°C ~ 70°C (With Derating) | 83% | Through Hole | 3.50" L x 2.50" W x 1.08" H (89.0mm x 63.5mm x 27.5mm) | CE, cULus | 60601-1 |
|
|
RAC40-24SAAC/DC CONVERTER 24V 40W |
4,887 |
|
规格书 |
POWERLINE RAC40-A (40W) | 7-DIP Module, 5 Leads | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | 1.67A | 40 W | Medical | Universal Input | -25°C ~ 70°C (With Derating) | 83% | Through Hole | 3.50" L x 2.50" W x 1.08" H (89.0mm x 63.5mm x 27.5mm) | CE, cULus | 60601-1 |
|
RAC60-12SBAC/DC CONVERTER 12V 60W |
4,250 |
|
规格书 |
POWERLINE RAC60-B (60W) | 6-DIP Module | Box | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | 5A | 60 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 86% | Through Hole | 4.29" L x 2.30" W x 1.20" H (109.0mm x 58.5mm x 30.5mm) | CE, cULus | - |
|
|
RAC60-24SBAC/DC CONVERTER 24V 60W |
1,591 |
|
规格书 |
POWERLINE RAC60-B (60W) | 6-DIP Module | Box | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | 2.5A | 60 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 86% | Through Hole | 4.29" L x 2.30" W x 1.20" H (109.0mm x 58.5mm x 30.5mm) | CE, cULus | - |
|

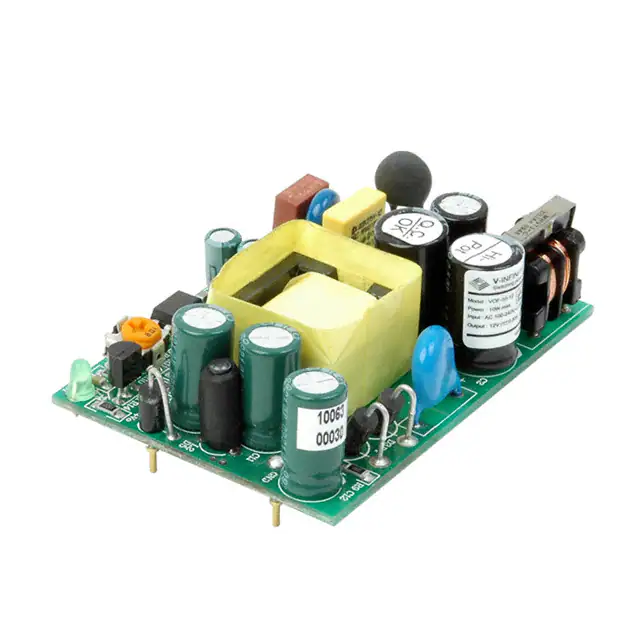

VOF-10-12AC/DC CONVERTER 12V 10W |
2,205 |
|
规格书 |
VOF-10 (10W) | 4-DIP Module | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | 830mA | 10 W | ITE (Commercial) | Universal Input | 0°C ~ 60°C (With Derating) | 75% | Through Hole | 2.56" L x 1.77" W x 0.91" H (65.0mm x 45.0mm x 23.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL | 55024; 60950-1; 61000-3-2; 61000-3-3 |
|
VOF-15-3.3AC/DC CONVERTER 3.3V 15W |
1,254 |
|
规格书 |
VOF-15 (15W) | 4-DIP Module | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | 3A | 15 W | ITE (Commercial) | Universal Input | 0°C ~ 60°C (With Derating) | 70% | Through Hole | 2.76" L x 1.91" W x 0.91" H (70.0mm x 48.6mm x 23.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL | 55024; 60950-1; 61000-3-2; 61000-3-3 |
|
|

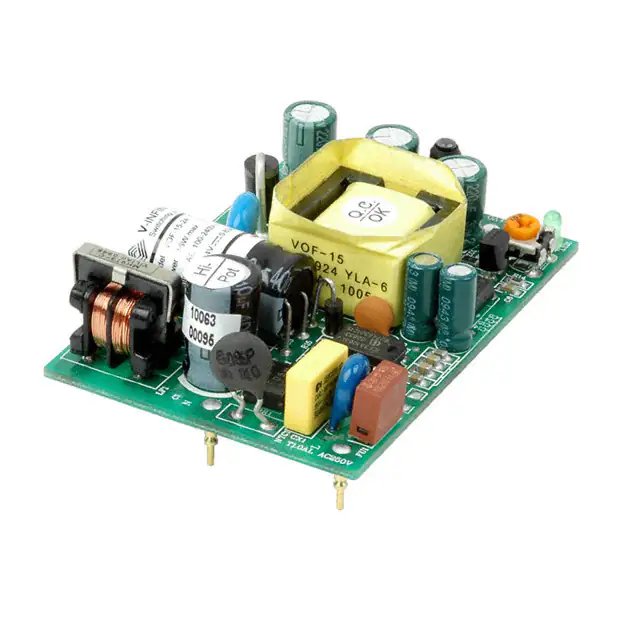

VOF-15-5AC/DC CONVERTER 5V 15W |
2,656 |
|
规格书 |
VOF-15 (15W) | 4-DIP Module | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | 3A | 15 W | ITE (Commercial) | Universal Input | 0°C ~ 60°C (With Derating) | 75% | Through Hole | 2.76" L x 1.91" W x 0.91" H (70.0mm x 48.6mm x 23.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL | 55024; 60950-1; 61000-3-2; 61000-3-3 |
|
|
VOF-15-12AC/DC CONVERTER 12V 15W |
4,518 |
|
规格书 |
VOF-15 (15W) | 4-DIP Module | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | 1.25A | 15 W | ITE (Commercial) | Universal Input | 0°C ~ 60°C (With Derating) | 80% | Through Hole | 2.76" L x 1.91" W x 0.91" H (70.0mm x 48.6mm x 23.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL | 55024; 60950-1; 61000-3-2; 61000-3-3 |
|
RAC04-0512DAAC/DC CONVERTER 5V 12V 4W |
1,620 |
|
规格书 |
POWERLINE RAC04 (4W) | 7-DIP Module | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | - | - | - | 120mA, 250mA | 4 W | ITE (Commercial) | Universal Input | -40°C ~ 70°C (With Derating) | 77% | Through Hole | 1.44" L x 1.07" W x 0.69" H (36.7mm x 27.0mm x 17.6mm) | CE, cULus, EN | 60950-1 |
|
|
RAC04-09SAAC/DC CONVERTER 9V 4W |
1,549 |
|
规格书 |
POWERLINE RAC04 (4W) | 7-DIP Module | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 9V | - | - | - | 444mA | 4 W | ITE (Commercial) | Universal Input | -40°C ~ 70°C (With Derating) | 76% | Through Hole | 1.44" L x 1.07" W x 0.69" H (36.7mm x 27.0mm x 17.6mm) | CE, cULus, EN | 60950-1 |
|
|
RAC04-09SA/277AC/DC CONVERTER 9V 4W |
1,884 |
|
规格书 |
POWERLINE RAC04 (4W) | 7-DIP Module, 6 Leads | Box | Obsolete | Enclosed | 1 | 90 ~ 305 VAC | 9V | - | - | - | 444mA | 4 W | ITE (Commercial) | Universal Input | -40°C ~ 70°C (With Derating) | 76% | Through Hole | 1.44" L x 1.07" W x 0.69" H (36.7mm x 27.0mm x 17.6mm) | CE, cULus, EN | 60950-1 |
|
|
RAC04-15SA/277AC/DC CONVERTER 15V 4W |
3,775 |
|
规格书 |
POWERLINE RAC04 (4W) | 7-DIP Module, 6 Leads | Box | Obsolete | Enclosed | 1 | 90 ~ 305 VAC | 15V | - | - | - | 267mA | 4 W | ITE (Commercial) | Universal Input | -40°C ~ 70°C (With Derating) | 77% | Through Hole | 1.44" L x 1.07" W x 0.69" H (36.7mm x 27.0mm x 17.6mm) | CE, cULus, EN | 60950-1 |
|
|
RAC04-3.3SA/277AC/DC CONVERTER 3.3V 4W |
4,224 |
|
规格书 |
POWERLINE RAC04 (4W) | 7-DIP Module, 6 Leads | Box | Obsolete | Enclosed | 1 | 90 ~ 305 VAC | 3.3V | - | - | - | 1.2A | 4 W | ITE (Commercial) | Universal Input | -40°C ~ 70°C (With Derating) | 68% | Through Hole | 1.44" L x 1.07" W x 0.69" H (36.7mm x 27.0mm x 17.6mm) | CE, cULus, EN | 60950-1 |
|
RAC05-05DAAC/DC CONVERTER +/-5V 5W |
4,796 |
|
规格书 |
POWERLINE RAC05-A (5W) | 6-DIP Module | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | - | - | - | 500mA, 500mA | 5 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 70% | Through Hole | 2.17" L x 1.77" W x 0.82" H (55.0mm x 45.0mm x 21.0mm) | CE, cULus | - |
|
|
RAC05-05SAAC/DC CONVERTER 5V 5W |
2,308 |
|
规格书 |
POWERLINE RAC05-A (5W) | 6-DIP Module, 5 Leads | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | 1A | 5 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 65% | Through Hole | 2.17" L x 1.77" W x 0.82" H (55.0mm x 45.0mm x 21.0mm) | CE, cULus | - |
|
|
RAC05-05SA-EAC/DC CONVERTER 5V 5W |
4,150 |
|
规格书 |
POWERLINE RAC05-A (5W) | 6-DIP Module, 5 Leads | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | 1A | 5 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 65% | Through Hole | 2.17" L x 1.77" W x 0.82" H (55.0mm x 45.0mm x 21.0mm) | CE, cULus | - |
|

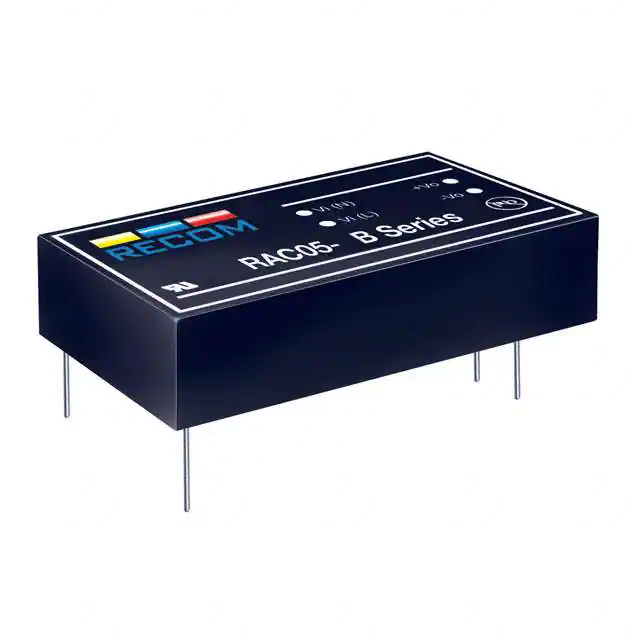

RAC05-05SB-EAC/DC CONVERTER 5V 5W |
4,830 |
|
规格书 |
POWERLINE RAC05-B (5W) | 4-DIP Module | Tube | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | 1A | 5 W | ITE (Commercial) | SCP | -40°C ~ 70°C (With Derating) | 72% | Through Hole | 2.00" L x 1.00" W x 0.62" H (50.8mm x 25.4mm x 15.7mm) | CE, cULus | - |
|
|
RAC05-12DAAC/DC CONVERTER +/-12V 5W |
2,698 |
|
规格书 |
POWERLINE RAC05-A (5W) | 6-DIP Module | Box | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 12V | - | - | - | 200mA, 200mA | 5 W | ITE (Commercial) | SCP | -25°C ~ 70°C (With Derating) | 67% | Through Hole | 2.17" L x 1.77" W x 0.82" H (55.0mm x 45.0mm x 21.0mm) | CE, cULus | - |
