在线询价直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMW78_12-0.5RDC-DC STEP DOWN REGULATORS |
452 |
|
规格书 |
LMW78_0.5R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 18V | 90V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | - | - |
|
|
LMW78_03-0.5RDC-DC STEP DOWN REGULATORS |
175 |
|
规格书 |
LMW78_0.5R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 90V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - |
|
LMZ30604RKGRDC DC CONVERTER 0.8-3.6V |
853 |
|
规格书 |
SIMPLE SWITCHER® | 39-BQFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 6V | 0.8 ~ 3.6V | - | - | - | 4A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | Enable, Active High | - | - |
.jpg)
|
MEA1D2405SCDC DC CONVERTER +/-5V 1W |
1,151 |
|
规格书 |
MEA1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84.5% | - | - | Through Hole | - | - | - | - |
|
MEA1D1205SCDC DC CONVERTER +/-5V 1W |
734 |
|
规格书 |
MEA1 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - |
|
|
NMA0512SCDC DC CONVERTER +/-12V 1W |
615 |
|
规格书 |
NMA (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - |
|
|
MEA1D0509SCDC DC CONVERTER +/-9V 1W |
253 |
|
规格书 |
MEA1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86.5% | - | - | Through Hole | - | - | - | - |
|

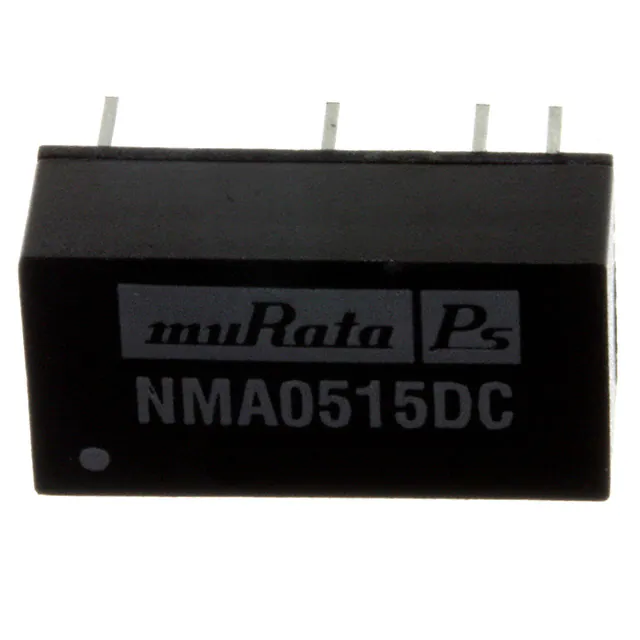

NMA0515DCDC DC CONVERTER +/-15V 1W |
217 |
|
规格书 |
NMA (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - |
|
|
1769405241WPME-FISM FIXED ISOLATED SIP/SMT |
132 |
|
规格书 |
MagI³C, FISM | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 4 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Surface Mount | 8-SMT (13.2x8.5) | - | cURus | 62368-1 |
|
LMZM23600V3SILTDC DC CONVERTER 3.3V |
3,336 |
|
规格书 |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | 87% | - | - | Surface Mount | 10-uSIP (3.8x3) | - | - | - |
|
|
LMZM23600SILTDC DC CONVERTER 1.2-15V |
1,647 |
|
规格书 |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 1.2 ~ 15V | - | - | - | 500mA | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 10-uSIP (3.8x3) | - | - | - |
|
|
LMZM23600V5SILTDC DC CONVERTER 5V |
437 |
|
规格书 |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | 90% | - | - | Surface Mount | 10-uSIP (3.8x3) | - | - | - |
|
R1SX-0505/H-RDC DC CONVERTER 5V 1W |
317 |
|
规格书 |
ECONOLINE R1SX (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | - | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | CB, cURus | - |
|
PM05S065ADC DC CONVERTER 6.5V 3W |
444 |
|
规格书 |
PM05S | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 8V | 32V | 6.5V | - | - | - | 500mA | 3 W | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 90°C | 95% | - | - | Through Hole | - | - | - | - |
|
TMV 0505SDC DC CONVERTER 5V 1W |
861 |
|
规格书 |
TMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | - | - | - | - |
|
|
N7812-1CDC DC CONVERTER +/-12V 17W |
119 |
|
规格书 |
N78 (12W) | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 2 | 8V | 36V | 12V | -12V | - | - | 300mA, 1A | 17 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95.5% | - | - | Through Hole | - | - | CE, EAC, UKCA | - |
|
|
RKE-2405S/HDC DC CONVERTER 5V 1W |
816 |
|
规格书 |
ECONOLINE RKE (E-Series) (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - |
|
|
LMZ30602RKGTDC DC CONVERTER 0.8-3.6V 7W |
570 |
|
规格书 |
SIMPLE SWITCHER® | 39-BQFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 6V | 0.8 ~ 3.6V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 39-B1QFN (11x9) | Enable, Active High | - | - |
|
MEE1S0503SCDC DC CONVERTER 3.3V 1W |
185 |
|
规格书 |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
MEE1S0509SCDC DC CONVERTER 9V 1W |
140 |
|
规格书 |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83.5% | - | - | Through Hole | - | - | - | - |
