在线询价直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTH12050WAHDC DC CONVERTER 1.2-5.5V 6A |
179 |
|
规格书 |
PTH12050 | 6-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | - | - | - | - |
|
LMZ22008TZE/NOPBDC DC CONVERTER 0.8-6V |
694 |
|
规格书 |
SIMPLE SWITCHER® | TO-PMOD-11, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 20V | 0.8 ~ 6V | - | - | - | 8A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | - | - | - | - |
|
RS3-0515DDC DC CONVERTER +/-15V 3W |
287 |
|
规格书 |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | - | Enable, Active Low | - | - |
|

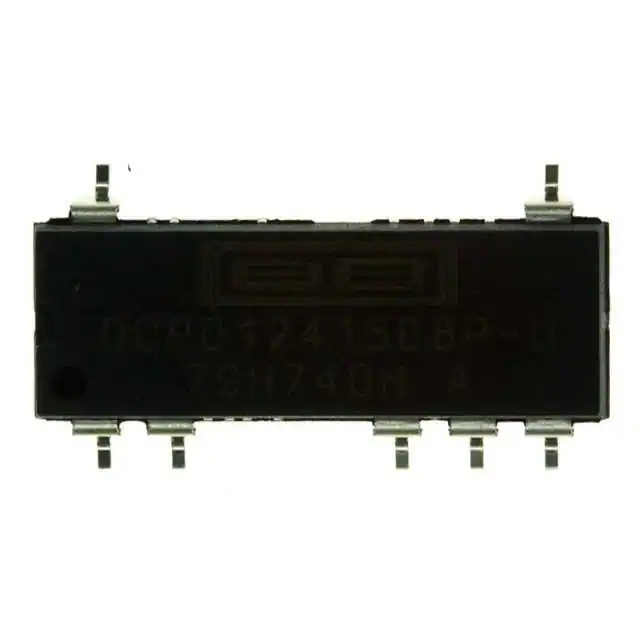

DCP012415DBP-UDC DC CONVERTER +/-15V 1W |
535 |
|
规格书 |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 76% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
RS-0515DDC DC CONVERTER +/-15V 2W |
271 |
|
规格书 |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
RS-0512DDC DC CONVERTER +/-12V 2W |
223 |
|
规格书 |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -45°C ~ 85°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
LTM4622EY#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
177 |
|
规格书 |
µModule® | 25-PowerBBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3.6V | 20V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 2.5A, 2.5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 25-BGA (6.25x6.25) | - | - | - |
|
LTM8063IY#PBFDC DC CONVERTER 0.8-15V |
4,585 |
|
规格书 |
µModule® | 28-FBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.2V | 40V | 0.8 ~ 15V | - | - | - | 2A | - | - | ITE (Commercial) | SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 28-BGA (6.25x4) | - | - | - |
|

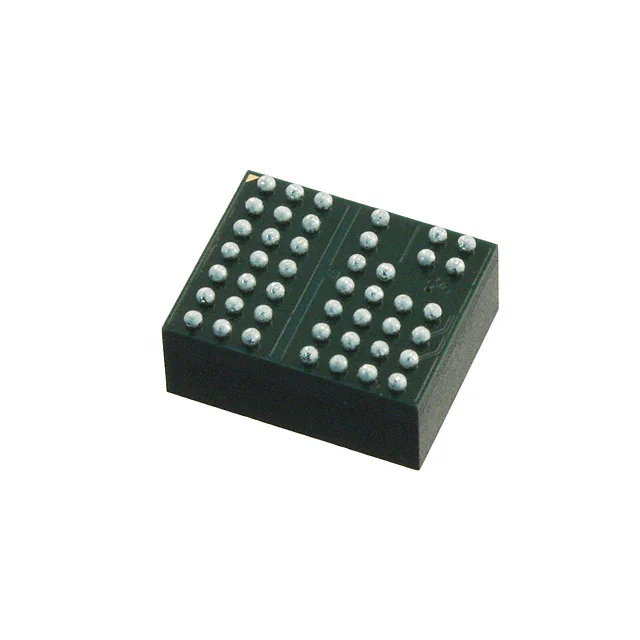

LTM8047EY#PBFDC DC CONVERTER 2.5-12V |
929 |
|
规格书 |
µModule® | 45-BBGA Module | Tray | Active | Isolated Module | 1 | 3.1V | 32V | 2.5 ~ 12V | - | - | - | 440mA | - | 725 V | ITE (Commercial) | UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 45-BGA (11.25x9) | - | - | - |
|
|
LMZ22010TZE/NOPBDC DC CONVERTER 0.8-6V |
111 |
|
规格书 |
SIMPLE SWITCHER® | TO-PMOD-11, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 20V | 0.8 ~ 6V | - | - | - | 10A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | - | - | - | - |
|
|
LMZ12010TZE/NOPBDC DC CONVERTER 0.8-6V |
535 |
|
规格书 |
SIMPLE SWITCHER® | TO-PMOD-11, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 20V | 0.8 ~ 6V | - | - | - | 10A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | - | - | - | - |
|
|
LTM4661IY#PBFIC REG BOOST ADJUSTABLE 4A 25BGA |
744 |
|
规格书 |
- | 25-PowerBBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 0.7V | 5.5V | 2.5 ~ 5.5V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | 85% | - | - | Surface Mount | 25-BGA (6.25x6.25) | - | - | - |
|
TEL 5-1211DC DC CONVERTER 5V 5W |
546 |
|
规格书 |
TEL 5 (5W) | 23-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | Module | - | - | - |
|
TEL 5-2412DC DC CONVERTER 12V 6W |
442 |
|
规格书 |
TEL 5 (5W) | 23-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | Module | - | - | - |
|
|
TEL 5-2411DC DC CONVERTER 5V 5W |
233 |
|
规格书 |
TEL 5 (5W) | 23-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | Module | - | - | - |
|
TDN 1-1211WISMDC DC CONVERTER 5V 1W |
188 |
|
规格书 |
TDN 1WISM (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 79% | - | - | Surface Mount | - | - | - | - |
|
|
TDN 1-1210WISMDC DC CONVERTER 3.3V 1W |
101 |
|
规格书 |
TDN 1WISM (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 3.3V | - | - | - | 300mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 77% | - | - | Surface Mount | - | - | - | - |
|
|
RS3-2405S/H3DC DC CONVERTER 5V 3W |
5,573 |
|
规格书 |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
RS3-1205S/H3DC DC CONVERTER 5V 3W |
507 |
|
规格书 |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 79% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
DCR012403UDC DC CONVERTER 3.3V 1W |
116 |
|
规格书 |
DCR01 (1W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Bulk | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C | - | - | - | Surface Mount | 12-SOP | Enable, Active High | - | - |
