在线询价干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

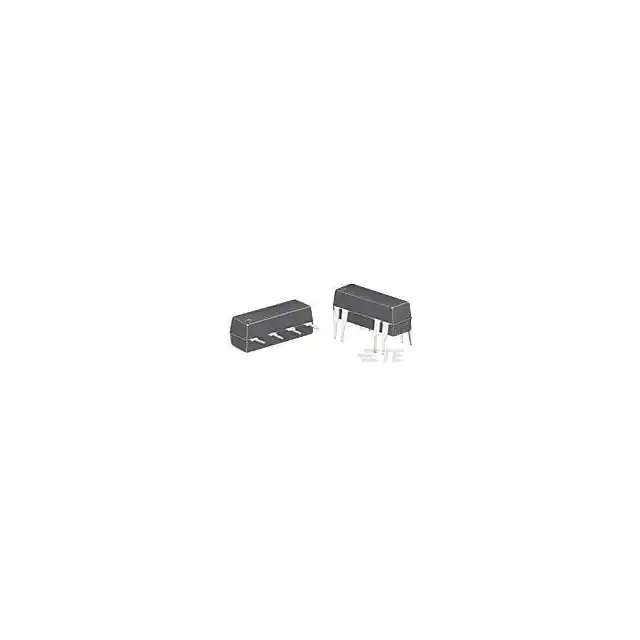

1-1393771-2JWD-171-19=REED RELAYS TE Connectivity Potter & Brumfield Relays |
1,572 |
|
规格书 |
JWD | Box | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
V23100V4312B010RELAY REED DPST 500MA 12V TE Connectivity Potter & Brumfield Relays |
2,922 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
JWD-172-1RELAY REED SPDT 500MA 5V TE Connectivity Potter & Brumfield Relays |
3,126 |
|
规格书 |
JWD | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
1393771-8JWD-171-12=REED RELAYS TE Connectivity Potter & Brumfield Relays |
842 |
|
规格书 |
JWD | Box | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
V23100V4015ARELAY REED SPST 500MA 15V TE Connectivity Potter & Brumfield Relays |
1,610 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | - | 10.5 VDC | 2.25 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4012A011RELAY REED SPST 500MA 12V TE Connectivity Potter & Brumfield Relays |
2,777 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4315B000RELAY REED DPST 500MA 15V TE Connectivity Potter & Brumfield Relays |
4,522 |
|
规格书 |
V23100-V4, AXICOM | Tube | Discontinued at Digi-Key | Through Hole | 15VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | - | 10.5 VDC | 2.25 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-171-23RELAY REED DPST 500MA 12V TE Connectivity Potter & Brumfield Relays |
1,282 |
|
规格书 |
JWD | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-171-25RELAY REED DPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
3,050 |
|
规格书 |
JWD | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4312C011RELAY REED SPDT 250MA 12V TE Connectivity Potter & Brumfield Relays |
3,844 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 1.6 ms | -40°C ~ 85°C | Ruthenium (Ru) |
