在线询价干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

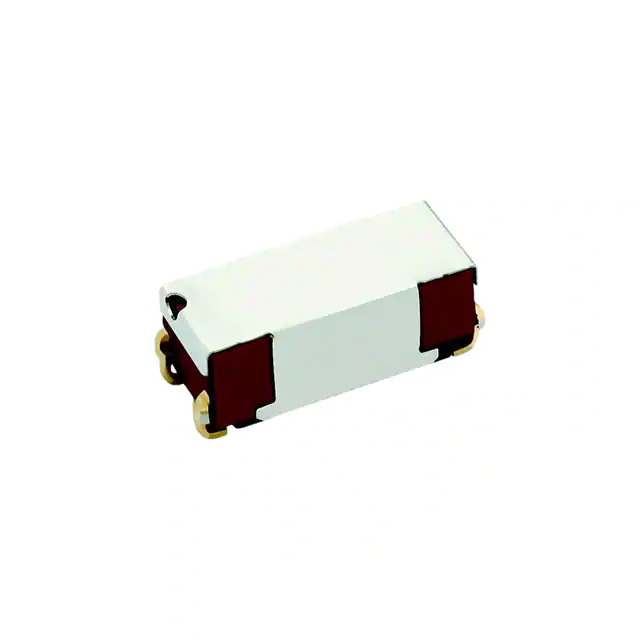

9913-05-20RELAY REED SPST-NO 250MA 5V |
2,979 |
|
规格书 |
9913 | Tube | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - |
|

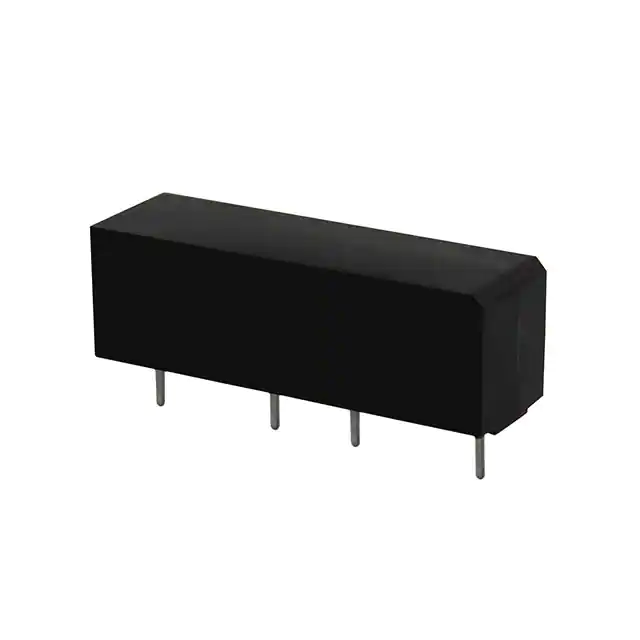

SHV05-1A85-78L2KRELAY REED SPST 1A 5V |
852 |
|
规格书 |
SHV | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22 mA | Non Latching | Magnetic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 105°C | - |
|
|
SHV05-1A85-78D2KRELAY REED SPST 1A 5V |
760 |
|
规格书 |
SHV | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22 mA | Non Latching | Diode, Magnetic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 105°C | - |
|
|
9913-05-20TRRELAY REED SPST-NO 250MA 5V |
9,349 |
|
规格书 |
9913 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - |
|
9012-05-11RELAY REED SPST 500MA 5V |
4,892 |
|
规格书 |
9012 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
SHV12-1A85-78D3KRELAY REED SPST 1A 12V |
20,177 |
|
规格书 |
SHV | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C | - |
|
|
9012-12-11RELAY REED SPST 500MA 12V |
22,524 |
|
规格书 |
9012 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 16 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
SHV05-1A85-78L3KRELAY REED SPST 1A 5V |
1,338 |
|
规格书 |
SHV | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 27.8 mA | Non Latching | Magnetic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C | - |
|
|
SHV05-1A85-78D3KRELAY REED SPST 1A 5V |
8,145 |
|
规格书 |
SHV | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 27.8 mA | Non Latching | Diode, Magnetic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C | - |
|

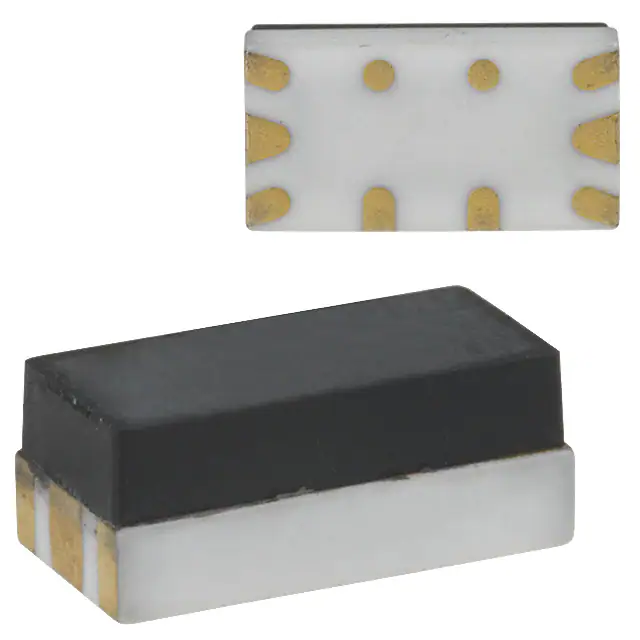

CRR05-1BRELAY REED SPST-NC 500MA 5V |
4,231 |
|
规格书 |
CRR | Tape & Reel (TR) | Active | Surface Mount | 5VDC | SPST-NC (1 Form B) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | SMD (SMT) Tab | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C | - |
|

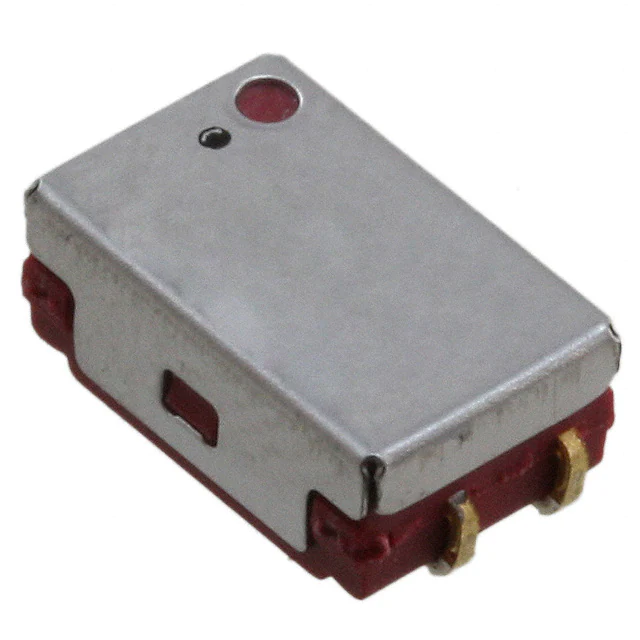

9901-05-20RELAY REED SPST 250MA 5V |
3,943 |
|
规格书 |
9900 | Tube | Not For New Designs | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 33.3 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - |
|
|
9901-05-20TRRELAY REED SPST 250MA 5V |
19,395 |
|
规格书 |
9900 | Tape & Reel (TR) | Not For New Designs | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 33.3 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - |
|

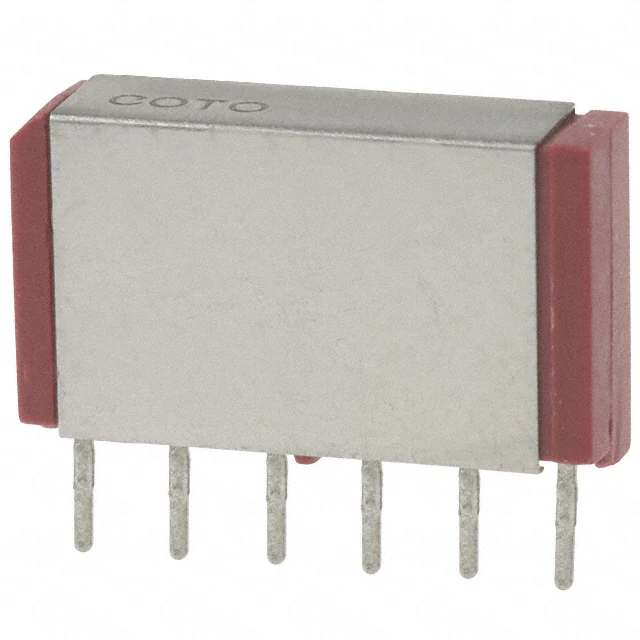

9092-05-10RELAY REED DPST 500MA 5V |
4,216 |
|
规格书 |
9092 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.3 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
8L61-12-011RELAY REED SPDT 250MA 12V |
115 |
|
规格书 |
8L | Bulk | Active | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
9104-05-11RELAY REED SPST 500MA 5V |
27,516 |
|
规格书 |
9104 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 1000VAC, 1000VDC - Max | 28.6 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
9104-12-11RELAY REED SPST 500MA 12V |
24,136 |
|
规格书 |
9104 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
9011-05-11RELAY REED SPST 250MA 5V |
1,409 |
|
规格书 |
9011 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
SHV12-1A85-78D4KRELAY REED SPST 1A 12V |
991 |
|
规格书 |
SHV | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C | - |
|
|
SHV05-1A85-78D4KRELAY REED SPST 1A 5V |
1,144 |
|
规格书 |
SHV | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 35.7 mA | Non Latching | Diode, Magnetic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C | - |
|
2904-12-301RELAY REED SPST 500MA 12V |
8,990 |
|
规格书 |
2900 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
