在线询价干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7142-12-1000RELAY REED DPDT 250MA 12V |
1,845 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 24.5 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
3650-12-72RELAY REED 3PST 250MA 12V |
4,514 |
|
规格书 |
3600 | Tube | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 250 mA | 150VAC, 150VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3540-12-810RELAY REED SPST 500MA 12V |
4,033 |
|
规格书 |
3500 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
3541-05-911RELAY REED DPST 500MA 5V |
1,625 |
|
规格书 |
3500 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 25 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 1 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
V23100V4315C011RELAY REED SPDT 250MA 15V |
3,026 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 15VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 7.5 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 10.5 VDC | 2.25 VDC | 1.1 ms | 1.6 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
3501-12-911RELAY REED SPST 500MA 12V |
1,254 |
|
规格书 |
3500 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|

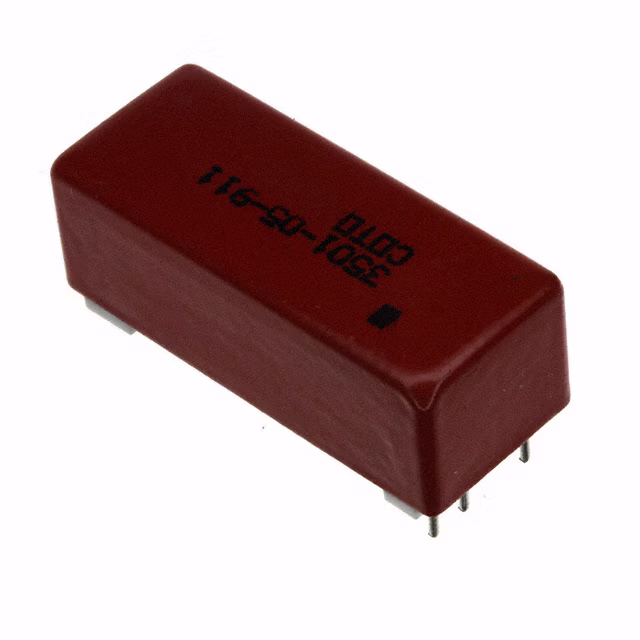

3501-05-911RELAY REED SPST 500MA 5V |
4,191 |
|
规格书 |
3500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3501-12-511RELAY REED SPST 500MA 12V |
4,197 |
|
规格书 |
3500 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
2362-05-000RELAY REED DPDT 250MA 5V |
3,412 |
|
规格书 |
2362 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 28.6 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | - |
|
|
3502-05-511RELAY REED DPST 500MA 5V |
3,471 |
|
规格书 |
3500 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7201-12-1000RELAY REED SPST 1A 12V |
2,117 |
|
规格书 |
7000 | Bulk | Not For New Designs | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 26.7 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
MSS41A24RELAY REED SPST 2A 24V |
3,174 |
|
规格书 |
MSS4 | Tube | Discontinued at Digi-Key | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1.75 ms | 1.5 ms | -40°C ~ 105°C | - |
|
|
BT12-2A66LOW THERMOVOLTAGE REED RELAY, FO |
4,518 |
|
规格书 |
BT | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.4 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 0.5 ms | 100 µs | -20°C ~ 85°C | - |
|
|
V23100V6002A101RELAY REED SPST 750MA 12V |
4,070 |
|
规格书 |
V23100-V6, AXICOM | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 750 mA | 24VDC - Nom | 10.9 mA | Non Latching | - | PC Pin | - | - | - | - | - | - | Rhodium (Rh), Ruthenium (Ru) |
|
|
DAR71205URELAY REED SPST-NO 5KV 12V |
1,794 |
|
规格书 |
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR70505URELAY REED SPST-NO 5KV 5V |
3,761 |
|
规格书 |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR72405URELAY REED SPST-NO 5KV 24V |
4,426 |
|
规格书 |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
V23100V4315C010RELAY REED SPDT 250MA 15V |
1,846 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 15VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 7.5 mA | Non Latching | Diode | PC Pin | - | 10.5 VDC | 2.25 VDC | 1.1 ms | 1.6 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
D1-24-CRELAY REED C/O 24V |
2,951 |
|
规格书 |
D1 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 26.7 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 65°C | Tungsten (W) |
|
|
DAT71205-HRRELAY REED 5KV 12V SPST-NO |
4,217 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
