在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2067640150RF ANT 868MHZ/915MHZ FLAT PATCH Molex |
4,582 |
|
规格书 |
206764 | Box | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -9dB | 1.1dBi | - | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
|
2067640200RF ANT 868MHZ/915MHZ FLAT PATCH Molex |
1,405 |
|
规格书 |
206764 | Box | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -9dB | 1dBi | - | Cable - 200mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
|
20848201502.4/5GHZ MIMO 2X2 FLEXIBLE ANTEN Molex |
4,813 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
21406101002.4/5GHZ ON FULL METAL CABLED AN Molex |
1,020 |
|
规格书 |
214061 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 1 | - | -9dB | 3.6dBi, 6.2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
20848202002.4/5GHZ MIMO 2X2 FLEXIBLE ANTEN Molex |
3,301 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|

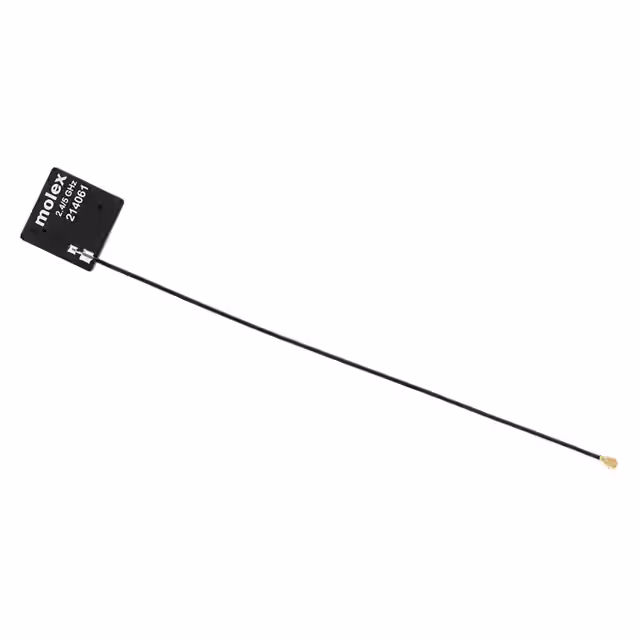

21406102002.4/5GHZ ON FULL METAL CABLED AN Molex |
1,244 |
|
规格书 |
214061 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 1 | - | -6dB, -7dB | 3.6dBi, 5.8dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
1462340050RF ANT 829MHZ/2.1GHZ FLAT PATCH Molex |
2,558 |
|
规格书 |
146234 | Tray | Obsolete | - | Wide Band | 829MHz, 2.1GHz, 4.35GHz | 698MHz ~ 6GHz | Flat Patch | 3 | - | -4dB, -5dB | 1.9dBi, 2.85dBi, 5.2dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
|
1461850250RF ANT 892MHZ/1.9GHZ FLAT PATCH Molex |
3,214 |
|
规格书 |
146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 3.3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|

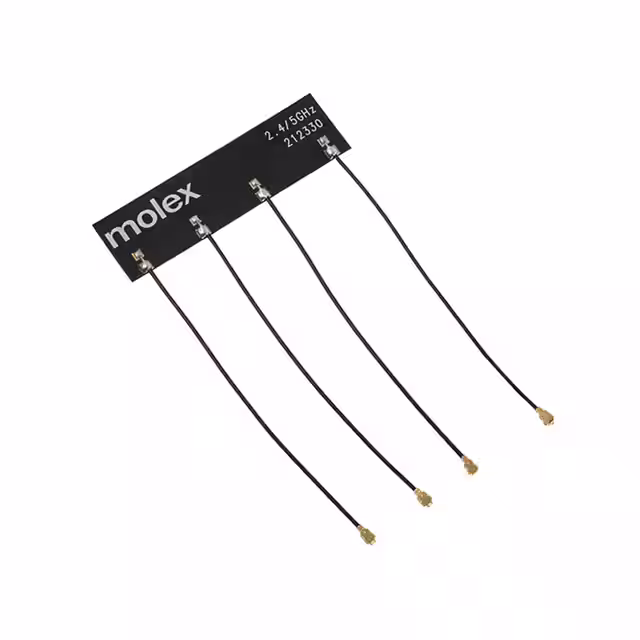

21233001502.4/5GHZ MIMO 4X4 FLEXIBLE ANTEN Molex |
2,076 |
|
规格书 |
212330 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -4dB, -5dB, -10dB | 3.6dBi, 4.5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

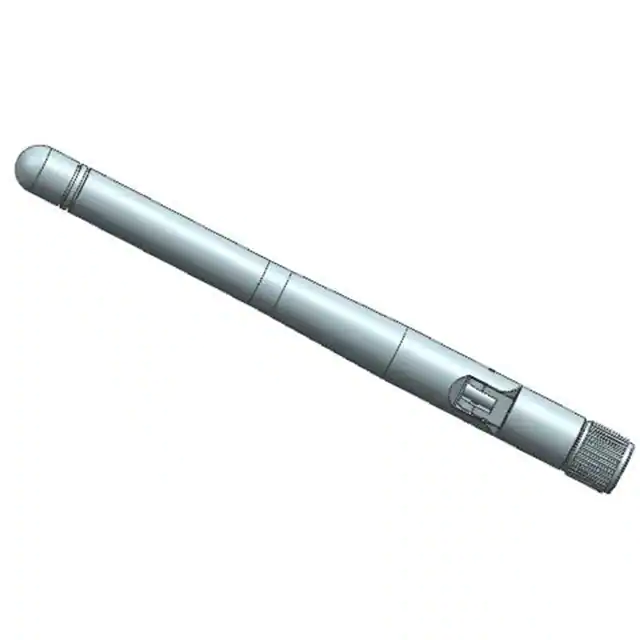

2144141001ISM/DSRC ANTENNA_HINGED_W_M Molex |
3,086 |
|
规格书 |
214414 | Tray | Obsolete | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Whip, Tilt | 1 | - | -10dB | 3.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | DSRC, ISM |
