在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YFGA003AAGNSS FPC ANTENNA, 39.45 X 13.25, Quectel |
2,986 |
|
规格书 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.56GHz ~ 1.61GHz | Flat Patch | 1 | - | - | - | - | Cable - 100mm | - | - | - | - | Adhesive | 0.005" (0.13mm) | GNSS |
|
YFCA002AAEMBEDDED CELLULAR ANTENNA Quectel |
532 |
|
规格书 |
- | Bag | Not For New Designs | Cellular | UHF (1GHz ~ 2GHz) | 1.695GHz | 700MHz ~ 2.69GHz | Flat Patch | 1 | 4 | - | 4.47dBi | - | Cable - 75mm | - | - | - | - | Surface Mount | 0.005" (0.12mm) | LTE |
|
|
YE0021AAMAG MNT LTE MONOPOL SMA M Quectel |
1,282 |
|
规格书 |
- | Bag | Not For New Designs | Cellular | Wide Band | 825MHz, 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 690MHz ~ 960MHz, 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Straight | 10 | 3 | - | 3.3dBi, 3.3dBi, 1.2dBi, 3.3dBi, -0.3dBi | - | Cable - 1.5m | SMA Male | IP65 | - | - | Magnetic | 1.173" (29.80mm) | LTE |
|
|
YE0001BAEXTERNAL CELLULAR ANTENNA Quectel |
1,046 |
|
规格书 |
- | Bag | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.3GHz | 600MHz ~ 6GHz | Blade, Tilt | 1 | 3 | - | 5dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 8.701" (221.00mm) | 4G, 5G, LTE |
|
|
YLY001CAGNSS L1&B1&G1 ACTVE, 2M,SMAM,MAG Quectel |
5,568 |
|
规格书 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.588GHz | 1.575GHz ~ 1.602GHz | Dome | 1 | 2 | - | 0.8dBi | - | LNA | SMA Male | IP66 | - | - | Magnetic | 0.511" (12.99mm) | GNSS |
|
|
YE0007AAEXTERNAL DIPOLE 5G ANTENNA SMAM Quectel |
1,360 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 3.3GHz, 3.65GHz, 4.5GHz, 5.5GHz | 600MHz ~ 960MHz, 698MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHZ, 4GHz ~ 6GHz, 5GHz ~ 6GHz | Whip, Straight | 9 | 3.5 | - | 3dBi, 4.1dBi, 3.2dBi, 3.5dBi, 3.9dBi, 5.2dBi, 5.5dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 6.000" (152.40mm) | LTE |
|
|
YB0014AA2IN1 LTE&GNSS SCRW MNT COMBO ANT Quectel |
318 |
|
规格书 |
- | Bag | Active | Cellular, Navigation | Wide Band | 849MHz, 1.561GHz, 1.575GHz, 2.2GHz | 698MHz ~ 1GHz, 1.558GHz ~ 1.564GHz, 1.572GHz ~ 1.578GHz, 1.7GHz ~ 2.7GHz | Module | 4 | 3, 4 | - | 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male | IP66 | - | - | Screw Mount | 0.571" (14.50mm) | GNSS, LTE, Wi-Fi |
|

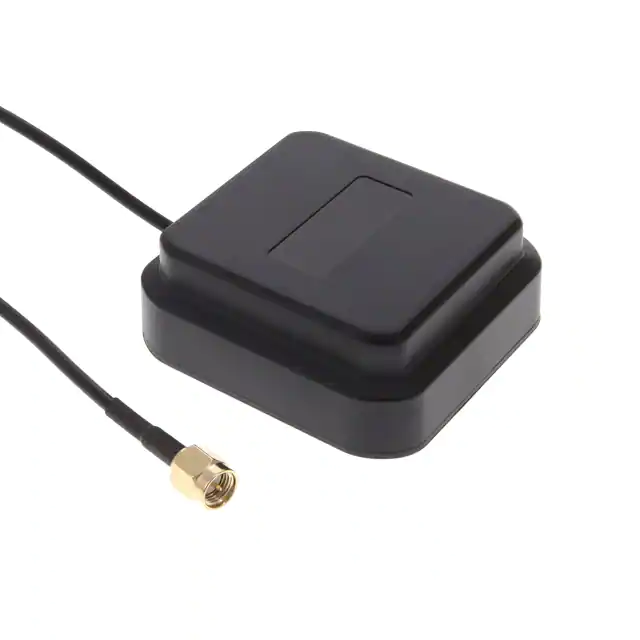

YB0017AAGNSS RF ANTENNA Quectel |
598 |
|
规格书 |
- | Bag | Active | Navigation | - | - | - | Module | - | 2 | - | 4dBi | - | Cable - 3m, LNA | SMA Male | IP65 | - | - | Magnetic | 0.906" (23.00mm) | Beidou, GLONASS, GNSS, GPS |
|
|
YEMN017AA5G COMBO ANTENNA Quectel |
165 |
|
规格书 |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 650MHz, 755MHz, 890MHz, 1.47GHz, 1.935GHz, 2.35GHz, 2.45GHz, 2.595GHz, 3.75GHz, 4.7GHz, 5.5GHz | 600MHz ~ 700MHz, 700MHz ~ 810MHz, 820MHz ~ 960MHz, 1.164GHz ~ 1.189GHz, 1.217GHz ~ 1.238GHz, 1.42GHz ~ 1.52GHz, 1.559GHz ~ 1.606GHz, 1.7GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GH | Dome | 14 | 4.1, 5.7, 12.1 | -1.4dB , -3.1dB , -4.3dB | -0.5dBi , 0.6dBi , 1dBi , 2.6dBi , 2dBi , 2.1dBi , 2.3dBi , 2.3dBi , 3dBi , 4.7dBi , 5.1dBi , 5.2dBi , 5.3dBi | - | Cable - 300mm, LNA | SMA Male | IP67, IP69K | - | - | Screw | 1.673" (42.50mm) | 4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
|
YEMN016AA5G COMBO ANTENNA Quectel |
114 |
|
规格书 |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 650MHz, 755MHz, 890MHz, 1.47GHz, 1.935GHz, 2.35GHz, 2.45GHz, 2.595GHz, 3.75GHz, 4.7GHz, 5.5GHz | 600MHz ~ 700MHz, 700MHz ~ 810MHz, 820MHz ~ 960MHz, 1.164GHz ~ 1.189GHz, 1.217GHz ~ 1.238GHz, 1.42GHz ~ 1.52GHz, 1.559GHz ~ 1.606GHz, 1.7GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GH | Dome | 14 | 2.7, 3.1, 8.4 | -2.1dB , -5.8dB , -6.8dB | 0.2dBi, -1.2dBi, 1.3dBi, 1.8dBi, 1.9dBi, -2dBi, 4dBi, 4dBi, 4.1dBi, 4.1dBi, 4.9dBi, 5.1dBi, 5.3dBi | - | Cable - 300mm, LNA | SMA Male | IP67, IP69K | - | - | Screw | 1.220" (31.00mm) | 4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
