在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

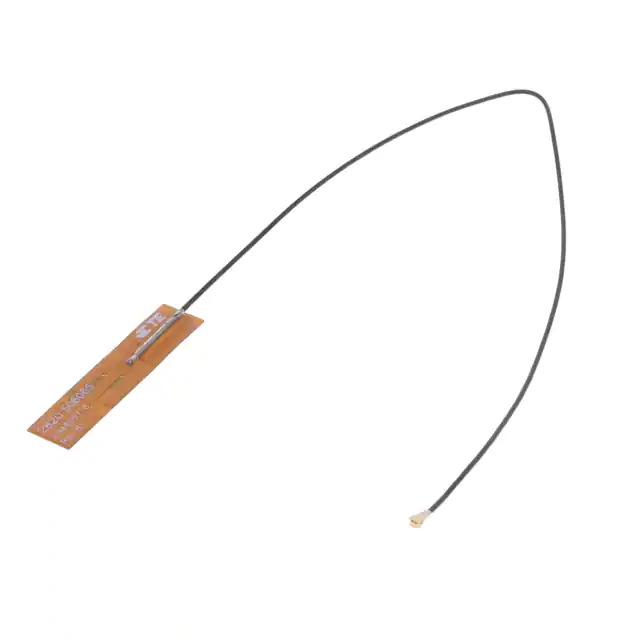

2344657-6WLAN DUAL BAND ANTENNA FPC H 100 TE Connectivity AMP Connectors |
3,448 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|

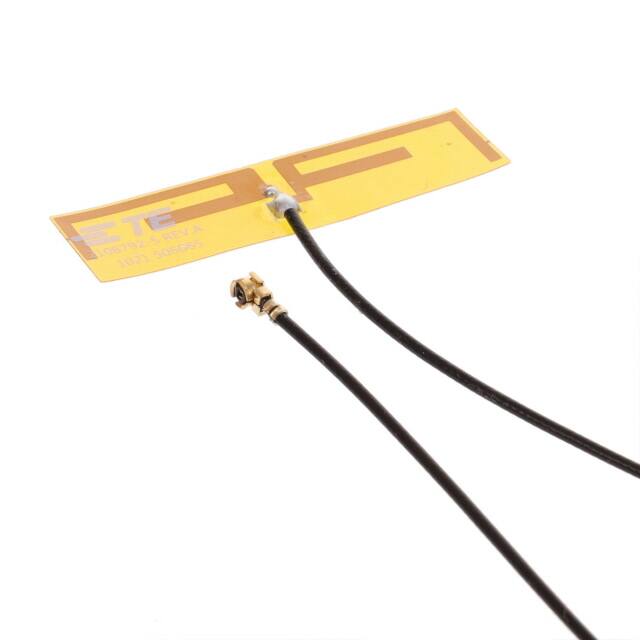

2108792-5FPC ANT, MHF, 200MM, WI-FI 6E TR TE Connectivity AMP Connectors |
1,816 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

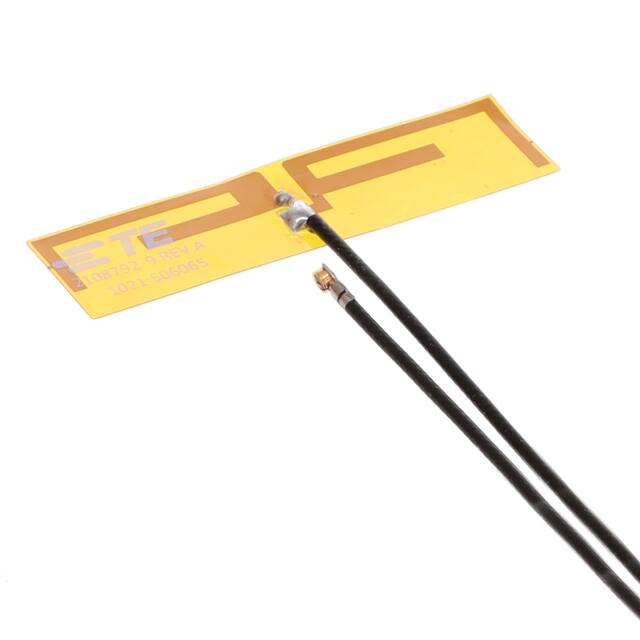

2108792-9FPC ANT, MHF 4L, 200MM, WI-FI 6E TE Connectivity AMP Connectors |
2,089 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2108784-25G/4G/3G/2G, NB-IOT, CAT-M, GNSS TE Connectivity AMP Connectors |
10,425 |
|
规格书 |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.5945GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.614GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Chip | 5 | 3 | - | 4dBi, 0.98dBi, 1.93dBi, 2.3dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|

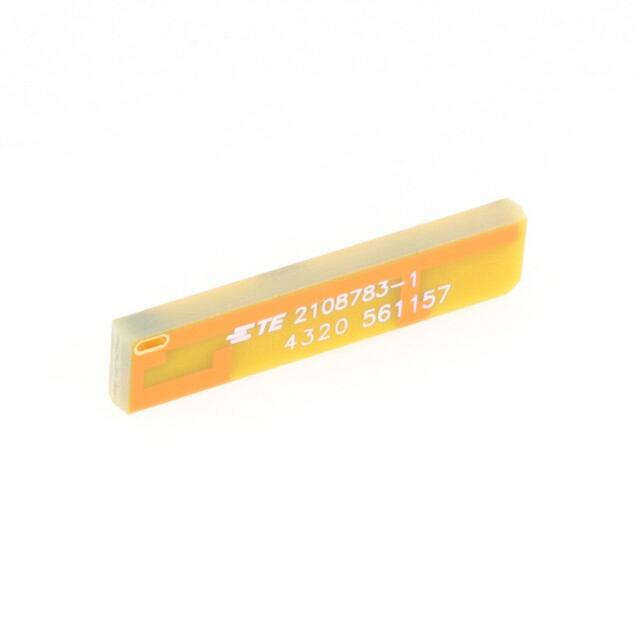

2108783-1PCB ANTENNA, SMD, 617-3800MHZ TE Connectivity AMP Connectors |
5,006 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 780MHz, 1.515GHz, 2.2GHz, 3.55GHz | 698MHz ~ 862MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | PCB Trace | 4 | 2 | - | 4.9dBi, 2dBi, 2.5dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.125" (3.18mm) | CDMA, GSM, LTE |
|

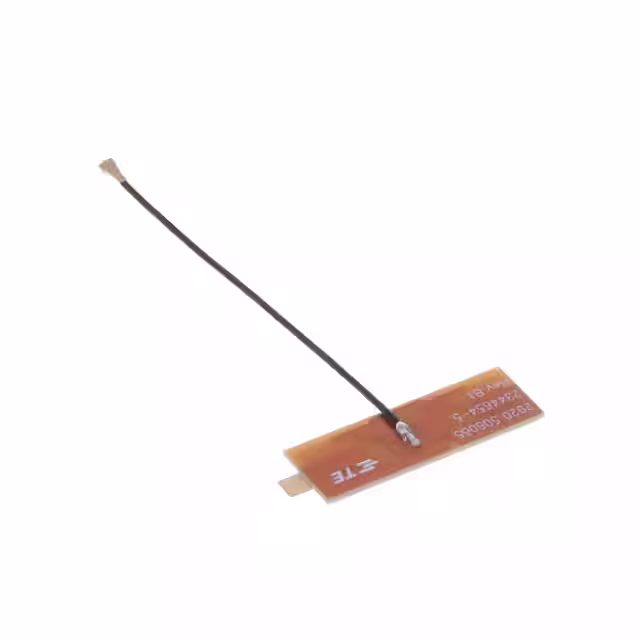

2344654-5WLAN DUAL BAND ANTENNA PCB V 50 TE Connectivity AMP Connectors |
6,627 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

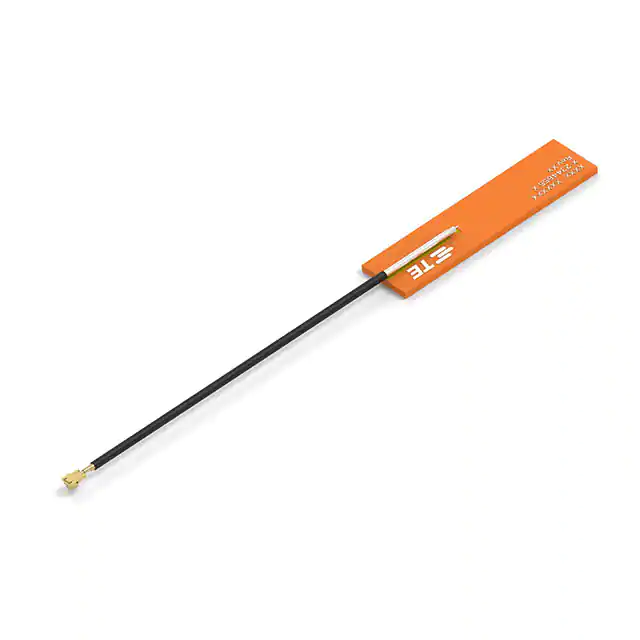

2344655-5WLAN DUAL BAND ANTENNA PCB H 50 TE Connectivity AMP Connectors |
2,494 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

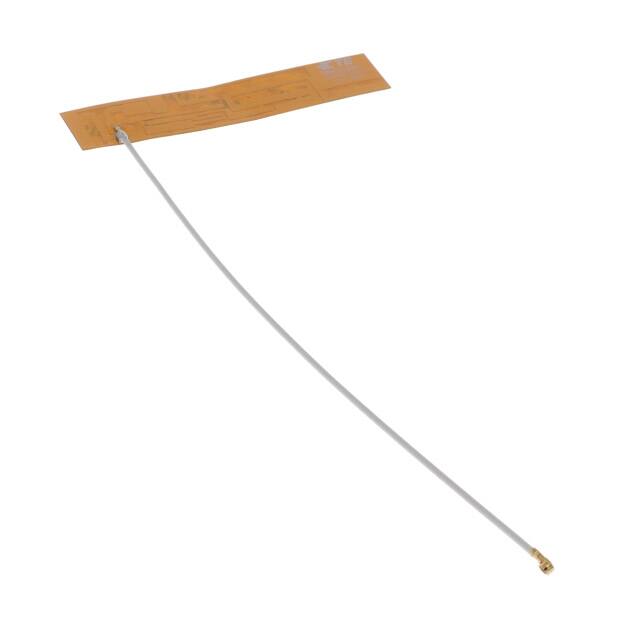

2195846-3FPC ANT, MHF, 150MM, 698-7125 MH TE Connectivity AMP Connectors |
9,542 |
|
规格书 |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|

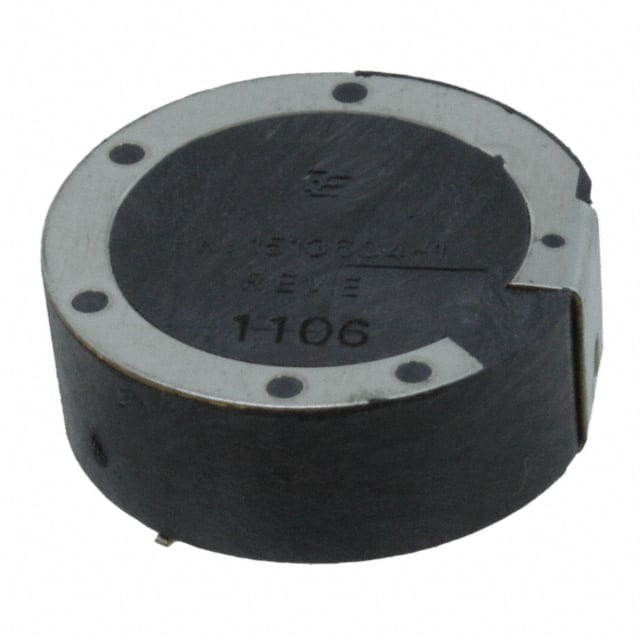

1513634-1RF ANT 1.575GHZ PUCK SOLDER SMD TE Connectivity AMP Connectors |
450 |
|
规格书 |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Puck | 1 | 3 | - | 0dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.238" (6.05mm) | GPS |
|

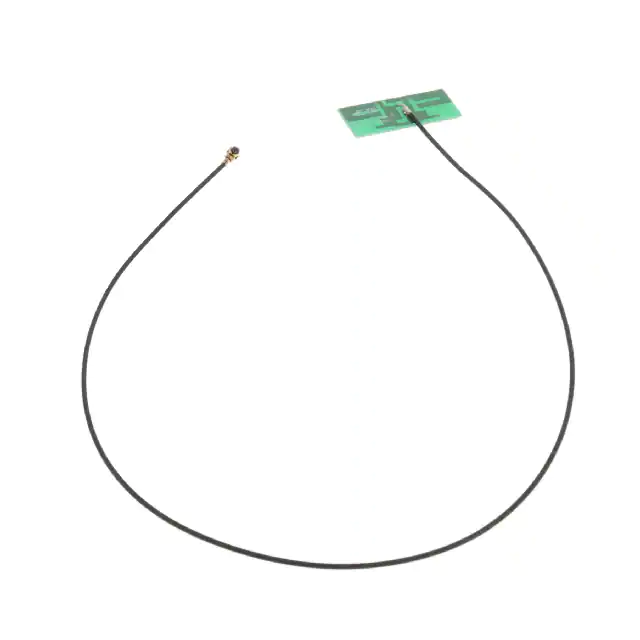

2118439-2RF ANT 2.44/5.387GHZ PCB TRACE TE Connectivity AMP Connectors |
5,662 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.387GHz | 2.4GHz ~ 2.483.5GHz, 4.9GHz ~ 5.875GHz | PCB Trace | 2 | - | - | - | - | Cable - 310mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.065" (1.65mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
