在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1991RF ANT 850/900MHZ PCB TRACE U.FL |
578 |
|
规格书 |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | PCB Trace | 5 | 3 | -6dB | 2dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | GSM |
|

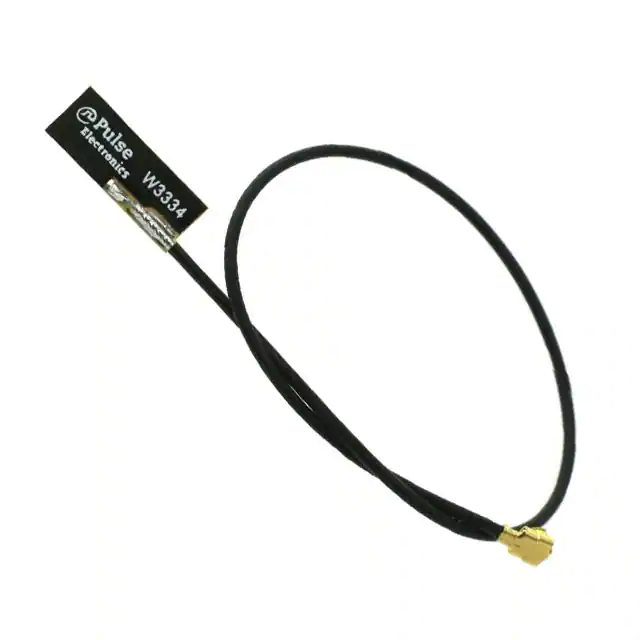

W3334B0150RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
457 |
|
规格书 |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 2 | - | 5.5dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|

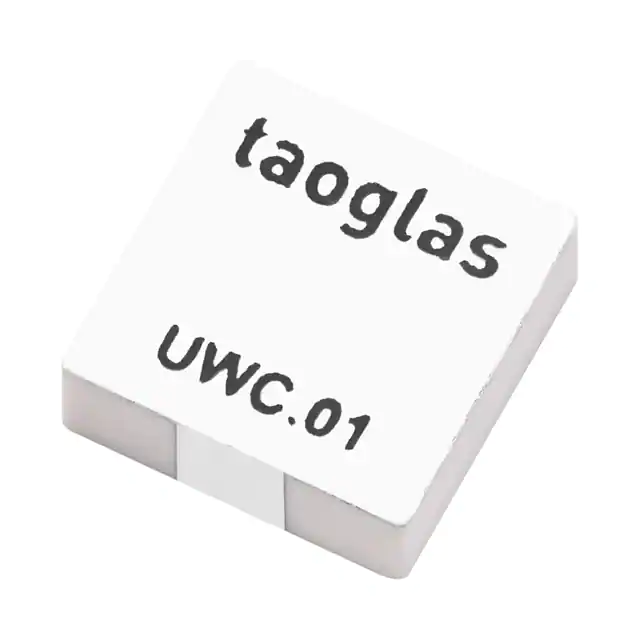

UWC.01ACCURAUWB UWC.01 6-8GHZ ULTRA WI |
1,075 |
|
规格书 |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 6.49GHz, 6.99GHz | 5.95GHz ~ 6.74GHz, 6.24GHz ~ 7.03GHz, 6.74GHz ~ 7.24GHz | Chip | 3 | 2, 2.2, 2.7 | -8dB, -9dB, -10dB | 4.5dBi, 4.5dBi, 3.5dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | UWB |
|
2108857-6PCB ANT, MHF4, 100MM WI-FI 6E TR |
2,522 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
ENB2449A1-10MH4LEMBED,NBLADE,100MM,D1.13,MHF4L |
7,201 |
|
规格书 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.25GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz, 5.6GHz ~ 6GHz | PCB Trace | 3 | 2 | - | 3.19dBi, 4.1dBi, 4.35dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | - | WLAN |
|
EFF6989A3S-19MH4LEMBED,DIPOLE,MHF4L 190MM,ADH,REV |
1,138 |
|
规格书 |
- | Bulk | Active | Cellular | Wide Band | 761MHz, 859MHz, 920MHz, 1.45GHz, 1.62GHz, 1.785GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz, 3.75GHz, 5.45GHz | 698MHz ~ 824MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.55GHz ~ 1.69GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9 | PCB Trace | 12 | 2, 2.2, 2.5 | - | 0.9dBi, 1.4dBi, 2.7dBi, 4dBi, 4.2dBi, 4.1dBi, 3.7dBi, 3.9dBi, 3.7dBi, 3.5dBi, 3.3dBi, 4.5dBi | 5 W | Cable - 190mm | I-PEX MHF4L | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, 5G, LTE |
|
2344656-2WLAN DUAL BAND ANTENNA FPC V 100 |
3,005 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
2344657-2WLAN DUAL BAND ANTNNA FPC H 100M |
2,671 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT1818B00DT1516SRF ANT 1.575/1.602GHZ CER PATCH |
2,611 |
|
规格书 |
1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -26.080dB, -26.781dB | 2.65dBi, 2.79dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
2372112-1LTE ANTENNA COTS FPC ASSEMBLY 15 |
2,595 |
|
规格书 |
- | Bag | Active | LTE, UMTS, WCDMA | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 3 | - | 0dBi, 0dBi, 0dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive | 0.007" (0.19mm) | Cellular |
|
3100AT51A7200001ERF ANT 6.7GHZ CHIP SOLDER SMD |
1,133 |
|
规格书 |
- | Tape & Reel (TR) | Active | - | SHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 6.7GHz | 3.1GHz ~ 10.3GHz | Chip | 1 | - | -9.5dB | 1.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
ANT-W63-FPC-LV100UFANT WIFI6 FPC 45X7 100MM UFL |
726 |
|
规格书 |
ANT-W63-FPC-LV | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.522GHz, 6.537GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6 | - | 4.8dBi, 6.3dBi, 7.4dBi | 2 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2344657-7WLAN DUAL BAND ANTENNA FPC H 150 |
2,441 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|

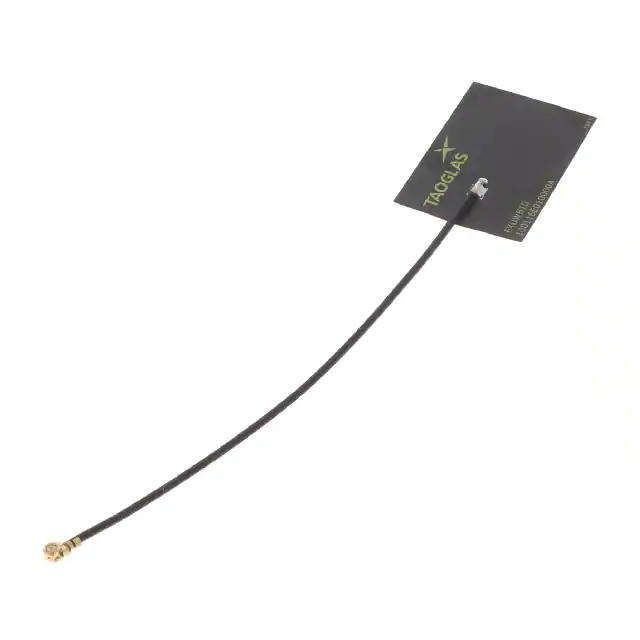

FXUWB10.07.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
181 |
|
规格书 |
- | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2 | - | 4.5dBi, 6.2dBi, 7.1dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
|
YCGS005AACERAMIC ANTENNA,GNSS,SMD,18*18*4 |
1,717 |
|
规格书 |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.588GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 1 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|

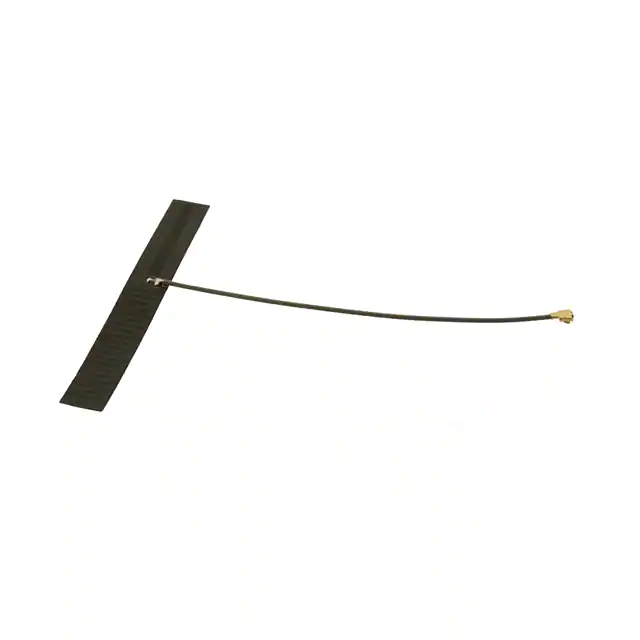

RPCF-W1B1-7910-O-W-001ANTENNA FLEXIBLE PCB 863-928 MHZ |
1,574 |
|
规格书 |
RPCF | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | PCB Trace | 1 | 2 | -10dB | 1.77dBi | - | - | I-PEX | - | - | - | Surface Mount | - | LoRa |
|

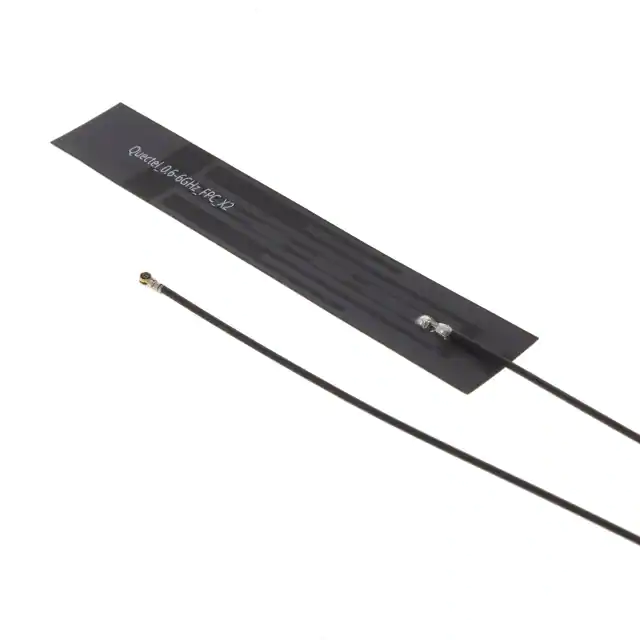

YF0020AAEMBEDDED CELLULAR ANTENNA |
1,282 |
|
规格书 |
- | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Flat Patch | 8 | 1.6, 1.7, 1.8, 2.01, 2.4, 3.3 | - | 1.2dBi, 4.36dBi, 4.2dBi, 3.8dBi, 2.7dBi, 2.9dBi | - | Cable - 184mm | I-PEX MHF4 | - | - | - | Surface Mount | 0.005" (0.13mm) | 6G |
|

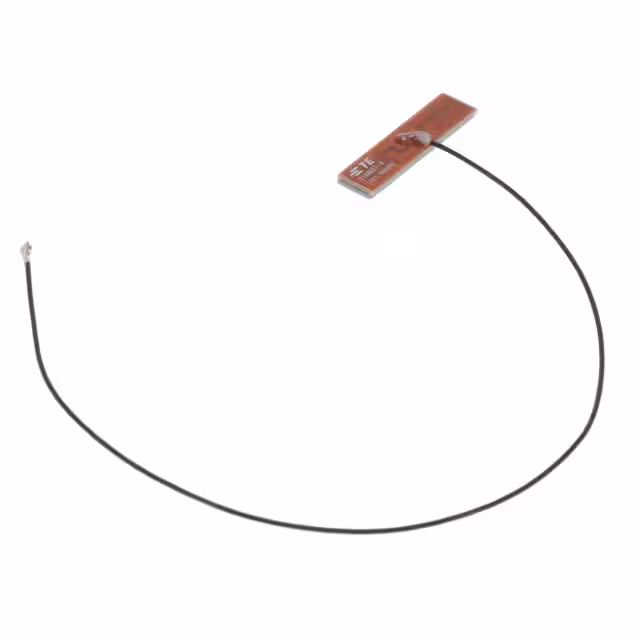

2108857-8PCB ANT, MHF4, 200MM WI-FI 6E TR |
578 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
|
PCS.06.MHAVOK MIRRORED LOW PROFILE LTE C |
500 |
|
规格书 |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.472GHz, 1.955GHz, 2.45GHz, 2.59GHz | 698MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz | Flat Bar | 5 | - | - | 0.5dBi, 1dBi, 3.4dBi, 2.6dBi, 2.9dBi | 5 W | - | - | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, 4G, LTE |
|
ANT-2.4-FPC-SH100UFANT 2.4 FPC 25X20 100 CBL UFL |
1,807 |
|
规格书 |
ANT-2.4-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 4dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
