在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMANED1000ANTENNA TYPE N JACK 138 MHZ-174 |
4,054 |
|
规格书 |
- | Bag | Active | General ISM | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Module | 1 | 1.8 | - | 4.1dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Connector Mount | 55.400" (140.72cm) | General Purpose |
|
|
FMANED1001ANTENNA TYPE N JACK 138 MHZ-174 |
1,543 |
|
规格书 |
- | Bag | Active | General ISM | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Module | 1 | 1.5 | - | 4.6dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Connector Mount | 55.400" (140.72cm) | General Purpose |
|
|
HG5833DANTDISH 5.8GHZ 32.5DBI |
2,554 |
|
规格书 |
HG | Bag | Active | General ISM, WiFi | SHF (f > 4GHz) | 5.787GHz | 5.725GHz ~ 5.85GHz | Dish | 1 | 1.5 | - | 32.5dBi | 100 W | - | N Type Female | - | - | - | Mast Mount | 17.100" (434.34mm) | ISM, WLAN |
|
|
HG9012DP-120ANTPANEL 900MHZ 12.5DBI 120DEG |
3,139 |
|
规格书 |
HG | Bag | Active | 802.15.4, Cellular, General ISM | UHF (300MHz ~ 1GHz) | 931MHz | 902MHz ~ 960MHz | Sector | 1 | - | - | 12dBi | - | - | N Type Female | - | - | - | Bracket Mount | 49.606" (126.00cm) | GSM, IoT, ISM, LPWAN, M2M, RFID, Zigbee™ |
|

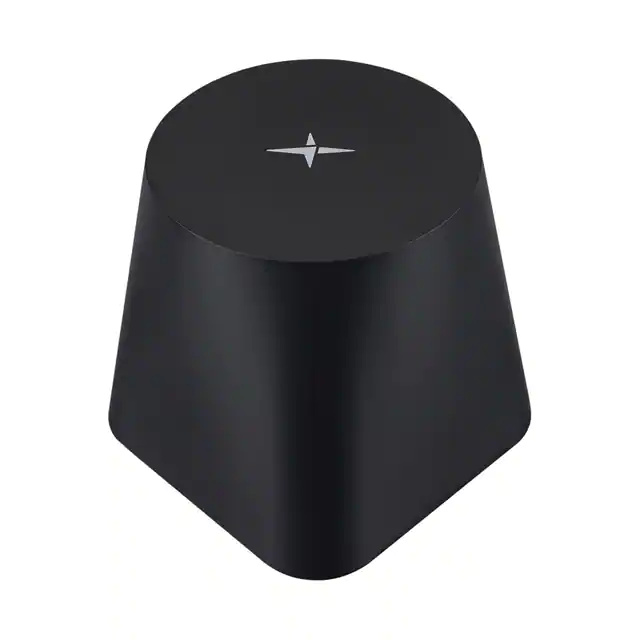

DCN.01.035111DISCONE EXTERNAL MOUNT WIDEBAND |
3,034 |
|
规格书 |
Discone One | Bulk | Active | Cellular | Wide Band | 440MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 1.2dBi, 1.8dBi, 4.7dBi, 4.9dBi, 5dBi, 6.6dBi, 4.7dBi, 4.8dBi, 6.5dBi | 20 W | Cable - 300mm | SMA Male | IP67 | - | - | Pole, Wall Mount | 7.992" (203.00mm) | 4G/5G |
|
|
1399.17.00941399.17.0094 |
4,755 |
|
规格书 |
- | Bulk | Active | Cellular, WiFi | Wide Band | 537MHz, 827MHz, 2.025GHz, 3GHz, 4.1GHz, 5.662GHz | 380MHz ~ 694MHz, 694MHz ~ 960MHz, 1.35GHz ~ 2.7GHz, 2.7GHz ~ 3.3GHz, 3.3GHz ~ 4.9GHz, 4.9GHz ~ 6.425GHz | Module | 6 | 1.5, 1.8 | - | 3dBi, 4dBi, 7.5dBi, 6.5dBi, 7dBi, 8dBi | - | - | N Type Female | IP67, IP69 | - | - | Chassis Mount | 6.063" (154.00mm) | Wi-Fi |
|
|
7940115485WI-ANT-460MHZ-6DB OMNI NF |
1,671 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HG3342DP-120-NF3.3-4.2 GHZ 120 DEGREE MIMO SECT |
1,091 |
|
规格书 |
HG | Bulk | Active | Cellular | Wide Band | 3.75GHz | 3.3GHz ~ 4.2GHz | Sector | 1 | 2 | - | 15.5dBi | 100 W | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female (2) | - | - | - | Mast Mount | 4.700" (119.38mm) | 5G, CBRS, LTE, WISP |
|
|
LCANOM10984 CELLULAR, 5 WI-FI, 1 GPS COMBI |
3,442 |
|
规格书 |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 7dBi, 5dBi, 8dBi | 10 W | Cable - 5.182m, LNA | Fakra | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
LCANOM10994 CELLULAR, 5 WI-FI, 1 GPS COMBI |
4,936 |
|
规格书 |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 1.587GHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.69GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 6 | 2 | - | 4dBi, 26dBi, 6dBi, 7dBi, 5dBi, 8dBi | 10 W | Cable - 5.182m, LNA | Fakra | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
FM9855B-20WG ANTENNA WR-75 10-15 GHZ |
1,357 |
|
规格书 |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.5 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Waveguide Mount | 2.980" (75.69mm) | General Purpose |
|
|
FM9860B-15WG ANTENNA WR-159 4.9-7.05 GHZ |
2,975 |
|
规格书 |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Waveguide Mount | 3.150" (80.01mm) | General Purpose |
|
|
FMWAN1050WG ANTENNA WR-10 87-100 GHZ |
1,805 |
|
规格书 |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 93.5GHz | 87GHz ~ 100GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | Screw-Mount | - | - | - | Waveguide Mount | 0.371" (9.42mm) | General Purpose |
|
|
FMWAN1058WG ANTENNA WR-8 100-112 GHZ |
3,102 |
|
规格书 |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 106GHz | 100GHz ~ 112GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | Screw-Mount | - | - | - | Waveguide Mount | 0.313" (7.95mm) | General Purpose |
|
|
FMWAN1034WG ANTENNA WR-19 50-58 GHZ |
1,093 |
|
规格书 |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 54GHz | 50GHz ~ 58GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | Screw-Mount | - | - | - | Waveguide Mount | 0.525" (13.34mm) | General Purpose |
|
|
FMWAN1054WG ANTENNA WR-10 77-87 GHZ |
3,162 |
|
规格书 |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 82GHz | 77GHz ~ 87GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | Screw-Mount | - | - | - | Waveguide Mount | 0.382" (9.70mm) | General Purpose |
|
|
FMWAN1046WG ANTENNA WR-12 77-87 GHZ |
3,530 |
|
规格书 |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 82GHz | 77GHz ~ 87GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | Screw-Mount | - | - | - | Waveguide Mount | 0.382" (9.70mm) | General Purpose |
|
|
LCANOM11394 CELLULAR, 5 WI-FI, 1 GPS COMBI |
3,167 |
|
规格书 |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | N Type Male (4), RP-SMA Male (5), TNC Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
LCANOM11084 CELLULAR, 5 WI-FI, 1 GPS COMBI |
4,244 |
|
规格书 |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | RP-SMA Male (5), SMA Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
|
|
LCANOM11384 CELLULAR, 5 WI-FI, 1 GPS COMBI |
2,719 |
|
规格书 |
LCAN | Bulk | Active | General ISM | Wide Band | 788.5MHz, 2.195GHz, 2.45GHz, 3.75GHz, 5.45GHz | 617MHz ~ 960MHz, 1.69GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Module | 5 | 2 | - | 4dBi, 6dBi, 5dBi, 7dBi, 8dBi | 10 W | Cable - 5.18m | N Type Male (4), RP-SMA Male (5), TNC Male | IP69K | - | - | Connector Mount | 3.150" (80.01mm) | General Purpose |
