在线询价射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2108792-2FPC ANT, MHF, 50MM, WI-FI 6E TRI |
3,414 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 50mm | MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

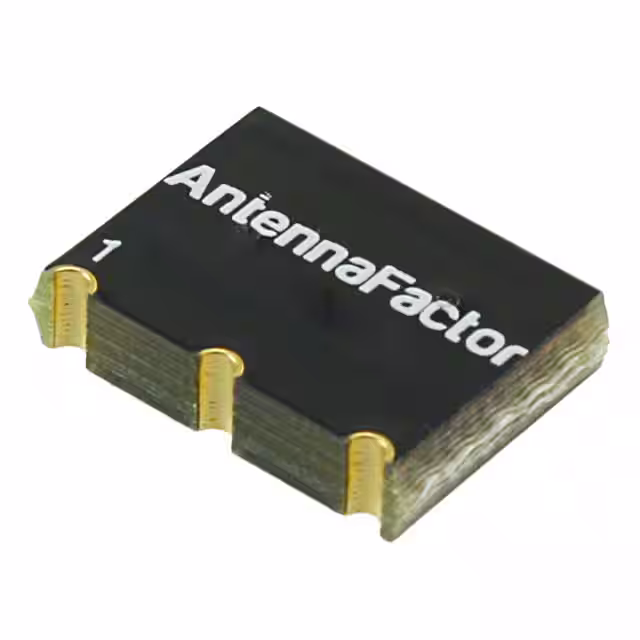

ANT-403-USP-TRF ANT 403MHZ CHIP SOLDER SMD |
12,654 |
|
规格书 |
microSplatch™ | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 403MHz | 400MHz ~ 406MHz | Chip | 1 | 2 | - | -8.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | MICS |
|

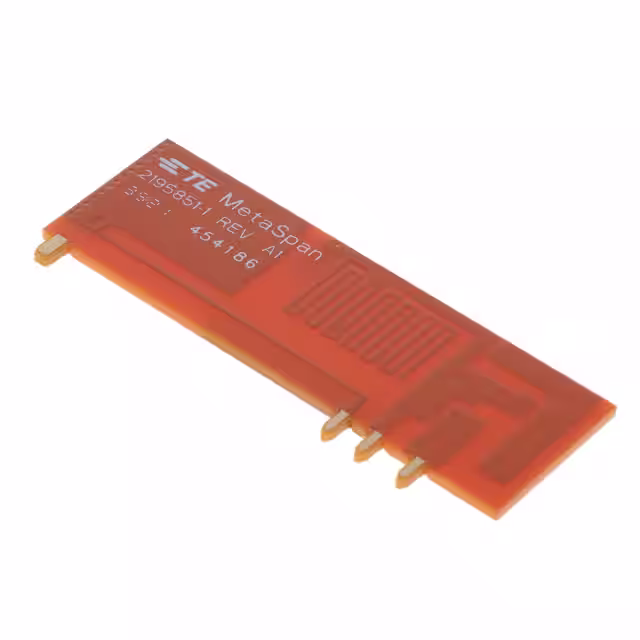

2195851-1PCB ANT, TAB MOUNT, 698-71250MHZ |
4,225 |
|
规格书 |
- | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.525GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.42GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 3 | - | 4.6dBi | - | - | PCB | - | - | - | Through Hole | 0.062" (1.58mm) | 4G, LTE, GNSS |
|
YCGA002AAPATCH, GNSS L1, PIN MNT, 1212 |
4,652 |
|
规格书 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | - | - | - | - | - | Surface Mount | 0.157" (4.00mm) | GNSS, GPS |
|
|
YG0038AAPATCH, GNSS L1, PIN MNT, 13X13 |
3,751 |
|
规格书 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.582GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | - | - | - | - | - | Adhesive | 0.157" (4.00mm) | GNSS, GPS |
|
|
YG0046AAPATCH, GNSS L1, PIN MNT, 18X18 |
1,150 |
|
规格书 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | 1.559GHz ~ 1.563GHz, 1.573GHz ~ 1.577GHz | Ceramic Patch | 2 | - | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | BeiDou, Galileo, GNSS, GPS |
|

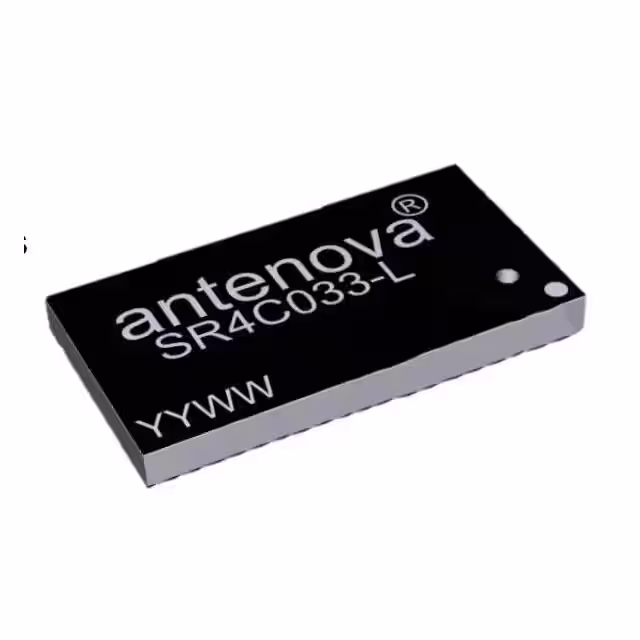

SR4C033-LRF ANT CHIP SOLDER SMD |
2,927 |
|
规格书 |
Latona | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | - | 791MHz ~ 960MHz | Chip | 1 | 2.6 | -9dB | 0.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|

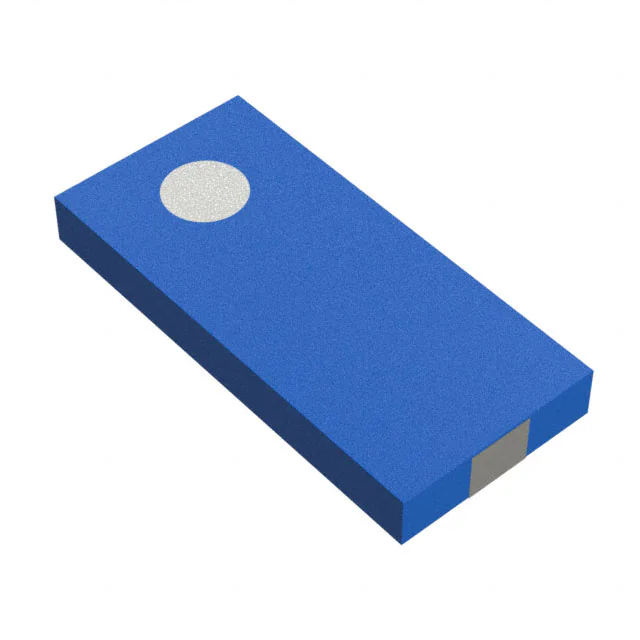

ANT7836LL15R2400ARF ANT 2.45GHZ CHIP SOLDER SMD |
7,174 |
|
规格书 |
7836 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 4.1dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
2108965-2FPC ANT, MHF, 100MM, UWB 6~8.5 G |
2,447 |
|
规格书 |
- | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2.1 | - | 4dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
|
2344657-6WLAN DUAL BAND ANTENNA FPC H 100 |
3,448 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
2108792-5FPC ANT, MHF, 200MM, WI-FI 6E TR |
1,816 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

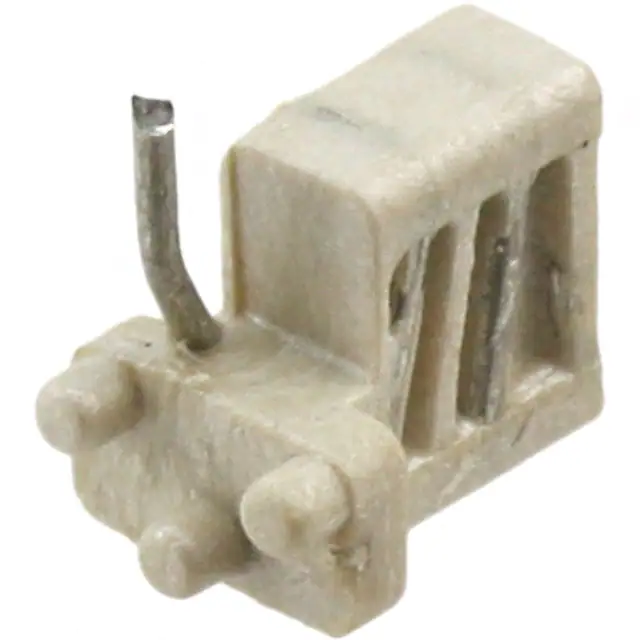

W3108RF ANT 2.4GHZ HELICAL SOLDER SMD |
1,510 |
|
规格书 |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Helical | 1 | - | -8dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.217" (5.50mm) | - |
.jpg)
|

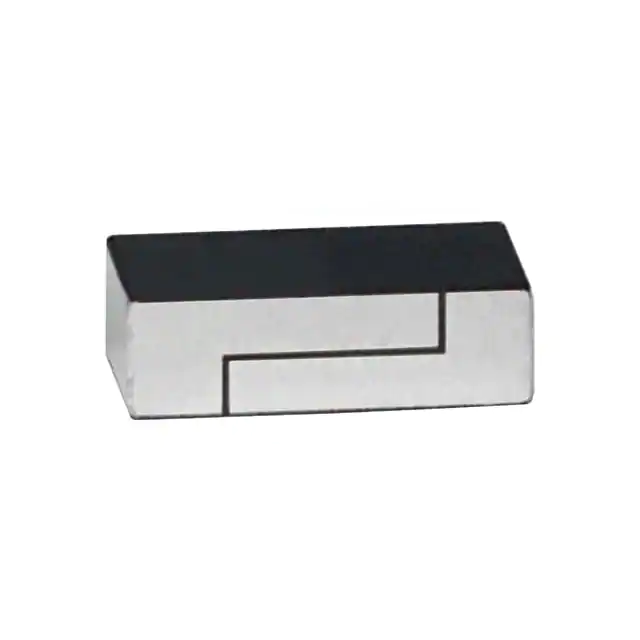

W3214ANT CER 863-873MHZ 10X3.2X5MM |
1,065 |
|
规格书 |
Chip Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 873MHz | Chip | 1 | - | -5dB, -20dB | 1dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | ISM |
|

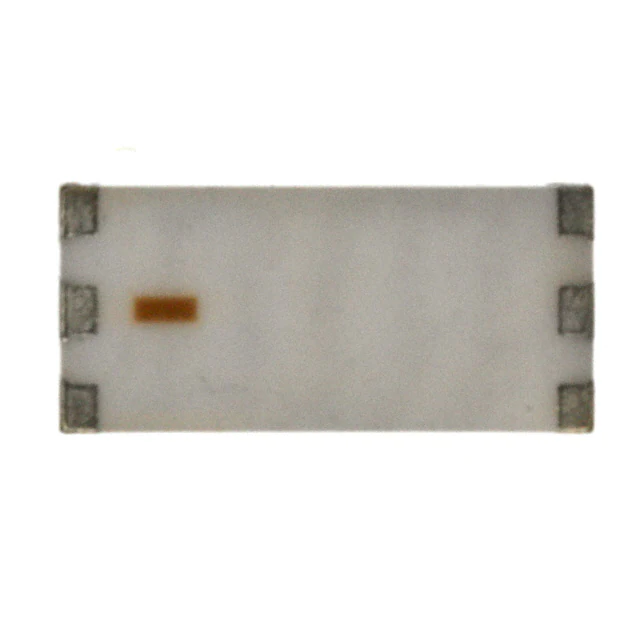

7488920245RF ANT 2.4GHZ CHIP SOLDER SMD |
402 |
|
规格书 |
WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.3dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, GSM, WLAN |
|
|
W3043RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
992 |
|
规格书 |
- | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.575GHz, 2.4GHz ~ 2.483GHz | Chip | 2 | - | -15dB, -12dB | 0.35dBi, 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | - |
|
AN012400C00R3200METAL SMD ANT 2.4GHZ |
871 |
|
规格书 |
AN012400C00 | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | - | - | - | - | - | - | - | Surface Mount | 0.075" (1.90mm) | General Purpose |
|
2108792-9FPC ANT, MHF 4L, 200MM, WI-FI 6E |
2,089 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.5dBi | - | Cable - 200mm | MHF4L | - | - | - | Adhesive | 0.005" (0.12mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
SR4L054LEPIDA LTE ANTENNA |
2,759 |
|
规格书 |
Lepida | Tape & Reel (TR) | Active | Cellular | Wide Band | 657.5MHz, 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz | 617MHz ~ 698MHz, 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Chip | 7 | 1.8, 2.1, 2.2, 2.5, 3.8 | -5dB, -6dB, -10dB | 0.5dBi, 1dBi, 2.5dBi, 1.6dBi, 0.5dBi, 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 4G, 5G, GSM, LTE, WCDMA |
|

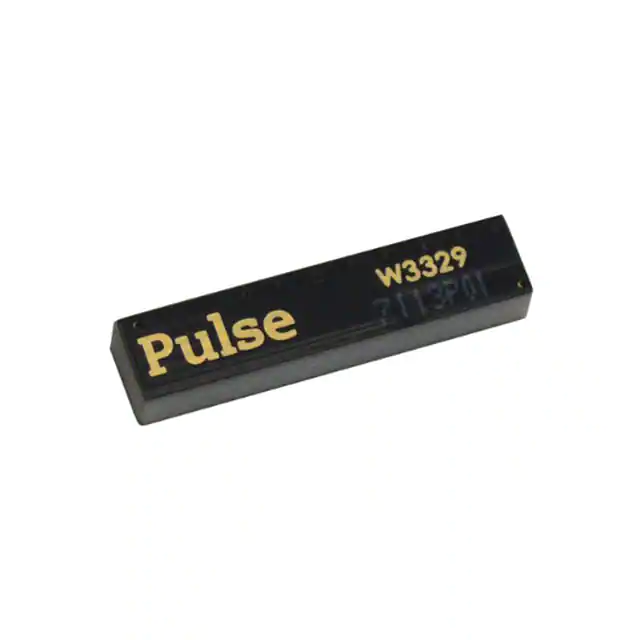

W3329ANT EMBD 868MHZ FR4 |
714 |
|
规格书 |
Domino | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Chip | 1 | 2 | -10dB | 0.17dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | ISM |
|
ANT-GNL1-NSPGNSS L1 LINEAR PCB CHIP ANTENNA, |
2,850 |
|
规格书 |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Chip | 3 | 1.3, 1.4 | -15.6dB, -18.7dB | 4.4dBi, 4.4dBi, 3.6dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | Beidou, Galileo, GLONASS, GPS |
