在线询价钽 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D.JPG)
|
T520D157M010ATE025CAP TANT POLY 150UF 10V 2917 |
1,435 |
|
规格书 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
TCNT476M016R0200CAP TANT POLYMER 47UF 16V 1210 |
1,414 |
|
规格书 |
TCN | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
|
|
T520D157M010ATE040CAP TANT POLY 150UF 10V 2917 |
14,636 |
|
规格书 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
TCJB105M050R0300CAP TANT POLY 1UF 50V 1210 |
8,756 |
|
规格书 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 1 µF | ±20% | 50 V | Molded | 300mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
TCJB225M035R0200ECAP TANT POLY 2.2UF 35V 1210 |
256 |
|
规格书 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 35 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
TCTOAS1A476M8R-ZB1CAP TANT POLY 47UF 10V 1206 |
9,220 |
|
规格书 |
TCTO | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | - | AS | - | General Purpose |
V.JPG)
|
T520V337M006ATE045CAP TANT POLY 330UF 6.3V 2917 |
2,460 |
|
规格书 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
T591D227M010ATE025CAP TANT POLY 220UF 10V 2917 |
1,962 |
|
规格书 |
KO-CAP® T591 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJX476M020R0070ECAP TANT POLY 47UF 20V 2917 |
1,286 |
|
规格书 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 20 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | X | - | General Purpose |
|
6TPE220MAPCAP TANT POLY 220UF 6.3V 2917 |
4,828 |
|
规格书 |
POSCAP™ TPE | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | D2E | - | General Purpose |
|
|
TCJD477M004R0025CAP TANT POLY 470UF 4V 2917 |
1,501 |
|
规格书 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 4 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|

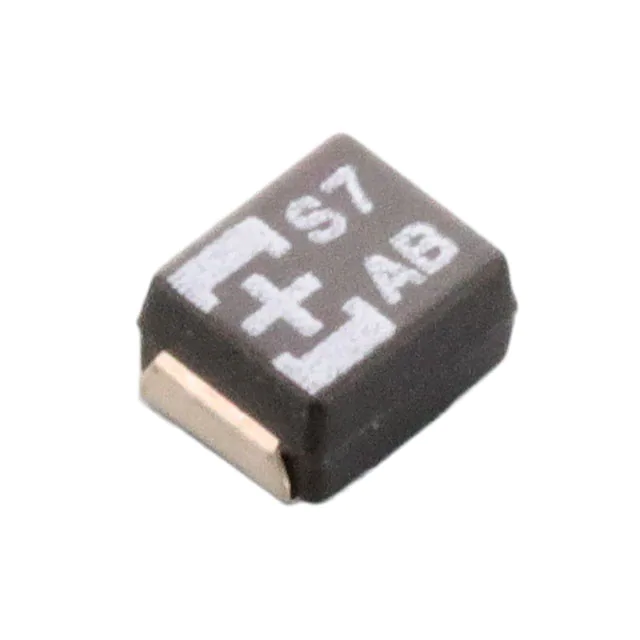

10TAB47MCAP TANT POLY 47UF 10V 1411 |
504 |
|
规格书 |
POSCAP™ TA | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B2 | - | General Purpose |
|
|
TCJY336M025R0060CAP TANT POLY 33UF 25V 2917 |
746 |
|
规格书 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | Molded | 60mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
T598D157M016ATE065CAP TANT POLY 150UF 16V 2917 |
277 |
|
规格书 |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | Molded | 65mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
TCJD157M016R0050ECAP TANT POLY 150UF 16V 2917 |
958 |
|
规格书 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T520D477M004ATE012CAP TANT POLY 470UF 4V 2917 |
7,042 |
|
规格书 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 4 V | Molded | 12mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
6TPE220MAPBCAP TANT POLY 220UF 6.3V 1411 |
2,672 |
|
规格书 |
POSCAP™ TPE | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B2 | - | General Purpose |
|
|
TCJD107M016R0050CAP TANT POLY 100UF 16V 2917 |
490 |
|
规格书 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJT226M010R0150CAP TANT POLY 22UF 10V 1210 |
1,242 |
|
规格书 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 10 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
|
|
T520V227M010ATE045CAP TANT POLY 220UF 10V 2917 |
4,565 |
|
规格书 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
