在线询价微调器、可变电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电容范围 | 调整类型 | 额定电压 | 介电材料 | 品质因数 (Q) @ 频率 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 工作温度 | 安装类型 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM15HVCAP TRIMMER 1-16PF 1000V SMD Knowles Voltronics |
2,765 |
|
规格书 |
A_HV | Bulk | Active | 1 ~ 16pF | Top | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|

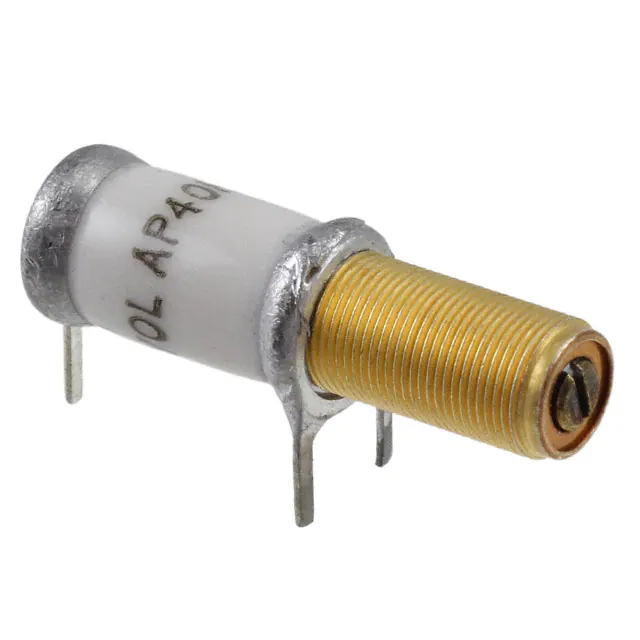

AP40HVCAP TRIMMER 1.5-40PF 1000V TH Knowles Voltronics |
1,163 |
|
规格书 |
- | Bulk | Active | 1.5 ~ 40pF | Side | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.220" Dia (5.59mm) | 1.000" (25.40mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|

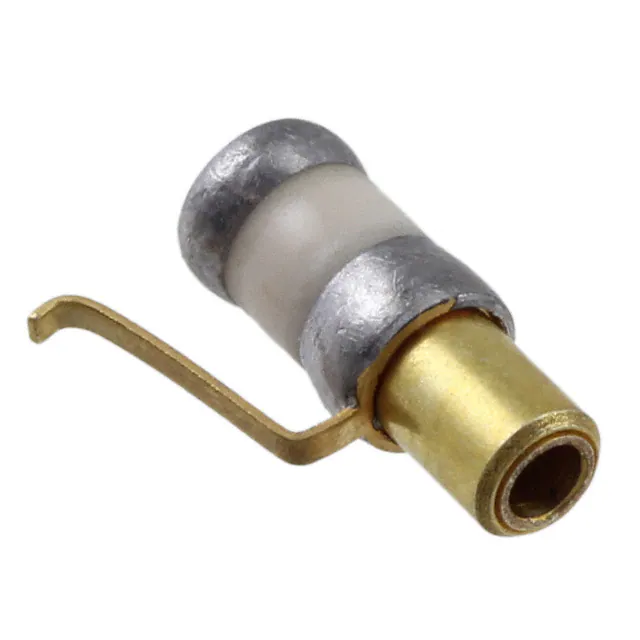

A1M8HVCAP TRIMMER 0.5-8PF 500V SMD Knowles Voltronics |
2,697 |
|
规格书 |
- | Bulk | Active | 0.5 ~ 8pF | Top | 500 V | Polytetrafluoroethylene (PTFE) | 3000 @ 100MHz | 0.160" Dia (4.06mm) | 0.260" (6.60mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|

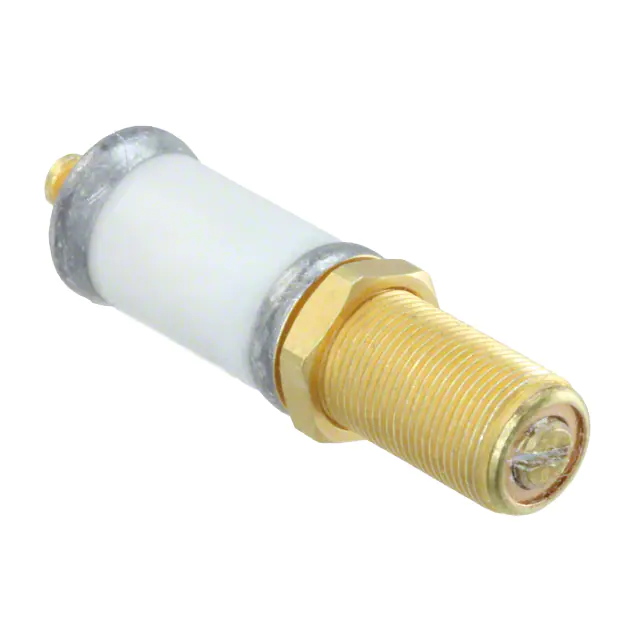

AT10-4CAP TRIM 0.8-10PF 2000V PNL MNT Knowles Voltronics |
136 |
|
规格书 |
- | Bulk | Active | 0.8 ~ 10pF | Top | 2000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.280" Dia (7.11mm) | 0.660" (16.76mm) | -65°C ~ 125°C | Panel Mount | General Purpose |
|

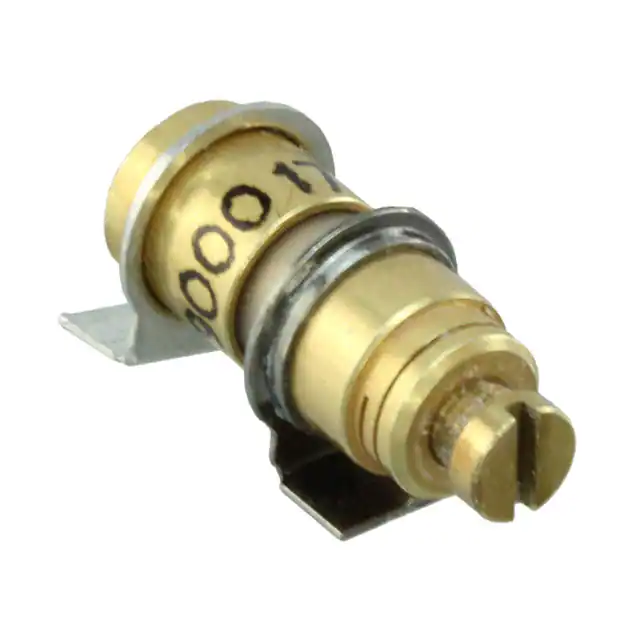

V9000CAP TRIMMER 1-12PF 2000V SMD Knowles Voltronics |
147 |
|
规格书 |
- | Bulk | Active | 1 ~ 12pF | Side | 2000 V | Sapphire | 3000 @ 100MHz | - | 0.470" (11.94mm) | -55°C ~ 125°C | Surface Mount | Non-Magnetic |
|

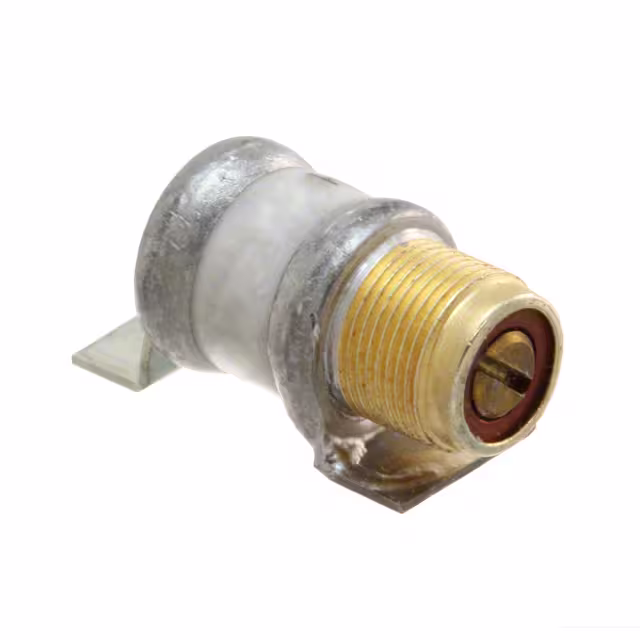

NMAJ25HVCAP TRIMMER 1-23PF 750V SMD Knowles Voltronics |
3,190 |
|
规格书 |
A_HV | Bulk | Active | 1 ~ 23pF | Side | 750 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Surface Mount | Non-Magnetic |
|
JR500CAP TRIMMER 8-50PF 125V SMD Knowles Voltronics |
568 |
|
规格书 |
JR | Bulk | Active | 8 ~ 50pF | Top | 125 V | Ceramic | 200 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
JZ030HVCAP TRIMMER 1.5-3PF 350V SMD Knowles Voltronics |
22,660 |
|
规格书 |
JZ_HV | Tape & Reel (TR) | Active | 1.5 ~ 3pF | Top | 350 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JZ060HVCAP TRIMMER 2-6PF 350V SMD Knowles Voltronics |
10,595 |
|
规格书 |
JZ_HV | Tape & Reel (TR) | Active | 2 ~ 6pF | Top | 350 V | Ceramic | 1000 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JZ150HVCAP TRIMMER 3-15PF 350V SMD Knowles Voltronics |
19,745 |
|
规格书 |
JZ_HV | Tape & Reel (TR) | Active | 3 ~ 15pF | Top | 350 V | Ceramic | 1500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
