在线询价微调器、可变电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电容范围 | 调整类型 | 额定电压 | 介电材料 | 品质因数 (Q) @ 频率 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 工作温度 | 安装类型 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JZ100CAP TRIMMER 2-10PF 125V SMD |
73,572 |
|
规格书 |
JZ | Tape & Reel (TR) | Active | 2 ~ 10pF | Top | 125 V | Ceramic | 1500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JZ150CAP TRIMMER 3-15PF 125V SMD |
68,112 |
|
规格书 |
JZ | Tape & Reel (TR) | Active | 3 ~ 15pF | Top | 125 V | Ceramic | 1500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
JR100CAP TRIMMER 2-10PF 125V SMD |
26,449 |
|
规格书 |
JR | Tape & Reel (TR) | Active | 2 ~ 10pF | Top | 125 V | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JR200CAP TRIMMER 4.5-20PF 125V SMD |
27,847 |
|
规格书 |
JR | Tape & Reel (TR) | Active | 4.5 ~ 20pF | Top | 125 V | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JR150CAP TRIMMER 3-15PF 125V SMD |
14,672 |
|
规格书 |
JR | Tape & Reel (TR) | Active | 3 ~ 15pF | Top | 125 V | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JZ400HVCAP TRIMMER 8-40PF 350V SMD |
14,348 |
|
规格书 |
JZ_HV | Tape & Reel (TR) | Active | 8 ~ 40pF | Top | 350 V | Ceramic | 1500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JZ200HVCAP TRIMMER 4.5-20PF 350V SMD |
72,676 |
|
规格书 |
JZ_HV | Tape & Reel (TR) | Active | 4.5 ~ 20pF | Top | 350 V | Ceramic | 1500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JZ500CAP TRIMMER 8-50PF 125V SMD |
25,400 |
|
规格书 |
JZ | Tape & Reel (TR) | Active | 8 ~ 50pF | Top | 125 V | Ceramic | 200 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|

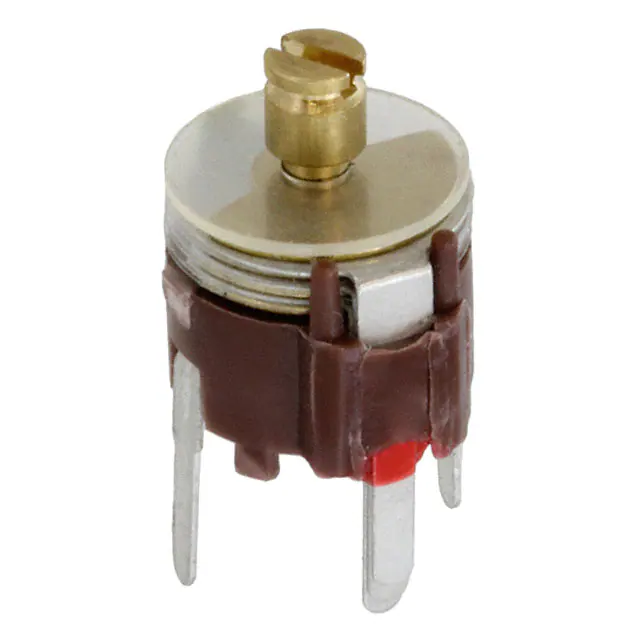

BFC280811339CAP TRIMMER 3-33PF 250V TH |
584 |
|
规格书 |
BFC2 808 | Bulk | Active | 3 ~ 33pF | Top and Bottom | 250 V | Polypropylene (PP) | - | 0.299" Dia (7.60mm) | 0.394" (10.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|

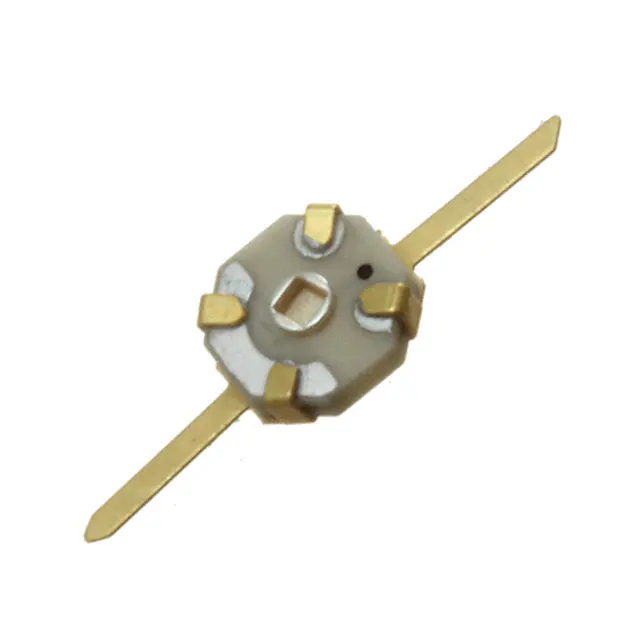

9402-1CAP TRIMMER 1-5PF 250V SMD |
1,658 |
|
规格书 |
Thin-Trim® | Bulk | Active | 1 ~ 5pF | Top | 250 V | - | 1000 @ 100MHz | 0.141" Dia (3.58mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9702-0SL-1R3CAP TRIMMER 0.5-2.5PF 250V SMD |
2,795 |
|
规格书 |
Thin-Trim® | Tape & Reel (TR) | Active | 0.5 ~ 2.5pF | Top | 250 V | Ceramic | 3000 @ 100MHz | 0.145" Dia (3.68mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
|
9402-0SL-1R3CAP TRIMMER 0.5-2.5PF 250V SMD |
2,132 |
|
规格书 |
Thin-Trim® | Tape & Reel (TR) | Active | 0.5 ~ 2.5pF | Top | 250 V | - | 3000 @ 100MHz | 0.141" Dia (3.58mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|

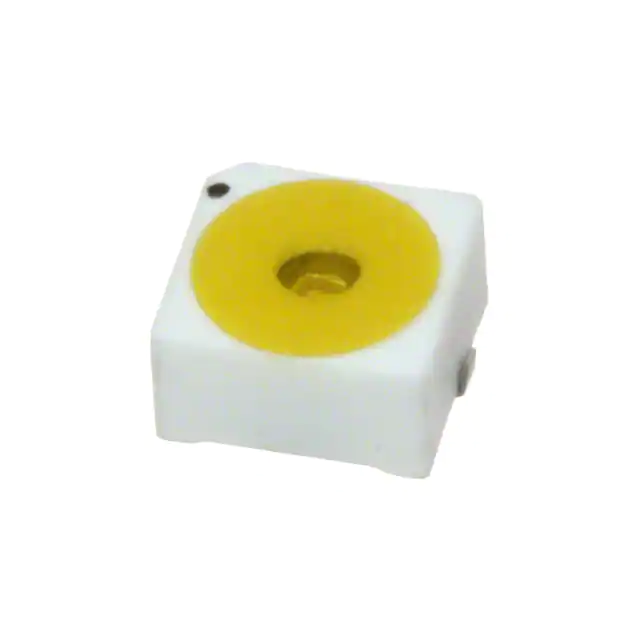

2320-1R1CAP TRIMMER 1-5PF 250V SMD |
294 |
|
规格书 |
Cera-Trim® | Tape & Reel (TR) | Active | 1 ~ 5pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
2322-1GSLR1CAP TRIMMER 1-5PF 250V SMD |
7,236 |
|
规格书 |
Cera-Trim® | Tape & Reel (TR) | Active | 1 ~ 5pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|

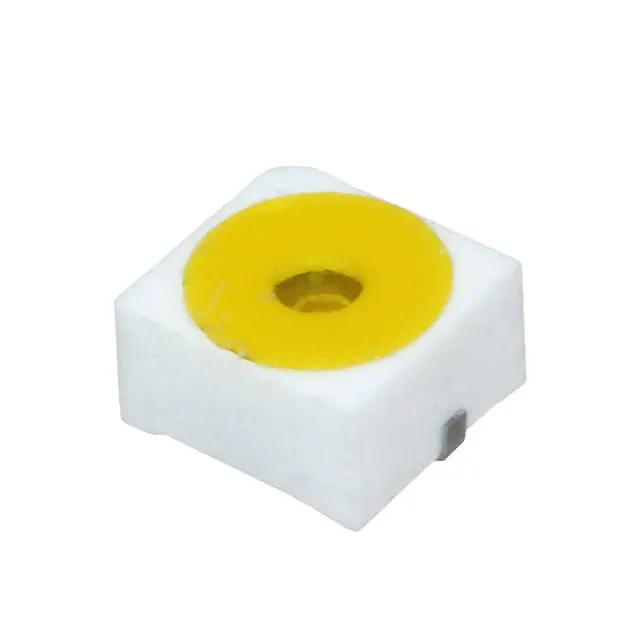

2322-2GR1CAP TRIMMER 2.5-10PF 250V SMD |
1,223 |
|
规格书 |
Cera-Trim® | Tape & Reel (TR) | Active | 2.5 ~ 10pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
|
BFC280908002CAP TRIMMER 4-38PF 250V TH |
894 |
|
规格书 |
BFC2 809 | Bulk | Active | 4 ~ 38pF | Top and Bottom | 250 V | - | - | 0.429" L x 0.413" W (10.90mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|
47273CAP TRIMMER 0.6-4.5PF 500V SMD |
659 |
|
规格书 |
Giga-Trim® | Bulk | Active | 0.6 ~ 4.5pF | Top | 500 V | Alumina | 3000 @ 250MHz | 0.150" Dia (3.81mm) | 0.330" (8.38mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
5201CAP TRIMMER 0.8-10PF 250V TH |
5,091 |
|
规格书 |
- | Bulk | Active | 0.8 ~ 10pF | Side | 250 V | Air | 5000 @ 100MHz | 0.295" Dia (7.49mm) | - | -65°C ~ 125°C | Through Hole | Sealed |
|
27283-3R10CAP TRIMMER 0.4-2.5PF 500V SMD |
1,827 |
|
规格书 |
Giga-Trim® | Tape & Reel (TR) | Active | 0.4 ~ 2.5pF | Top | 500 V | Sapphire | 4000 @ 250MHz | 0.140" Dia (3.56mm) | 0.225" (5.72mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
|

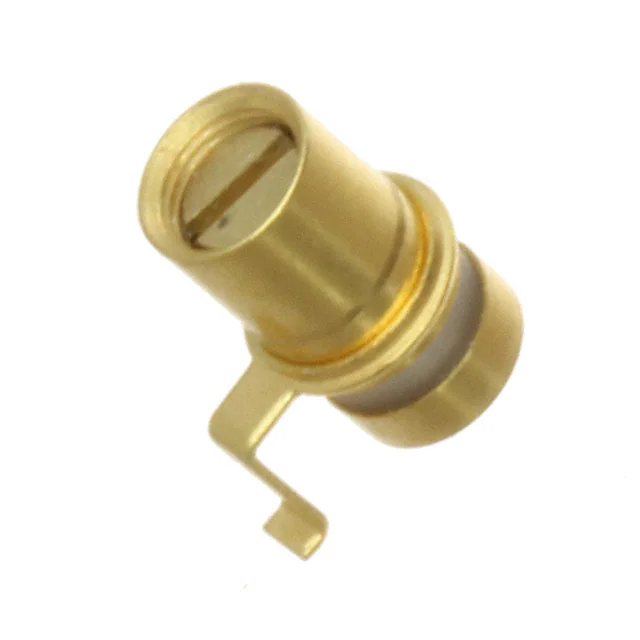

27283CAP TRIMMER 0.4-2.5PF 500V SMD |
161 |
|
规格书 |
Giga-Trim® | Bulk | Active | 0.4 ~ 2.5pF | Top | 500 V | Sapphire | 4000 @ 250MHz | 0.140" Dia (3.56mm) | 0.225" (5.72mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
