深圳市双灏业科技有限公司(Bomkey Electronics)代理分销ISABELLENHUETTE(伊萨拜棱辉特,简称ISA)的精密电阻器.

ISABELLENHUETTE 成立于1842年,总部位于德国黑森州迪伦堡(Dillenburg).凭借悠久的冶金经验和技术创新,成为高精度电阻和合金材料的标杆企业,尤其在汽车和工业高功率场景中占据重要地位.其产品以低温漂\高稳定性和长寿命著称,是精密电流检测和功率控制的理想选择.

今天我们聊一聊大功率电阻,PBV系列和PBH系列电阻均属于其插件功率电阻类别,专为高功率和精密电流检测应用设计.

以下是对这两个系列的详细分析：

1. PBV 系列电阻

技术特点

阻值范围：PBV系列覆盖较广的阻值范围,例如PBV-R470-F1-0.5(0.47Ω)和PBV-R100-F1-1.0(0.1Ω)等.

功率能力：额定功率通常为10W,部分型号在无散热条件下可达更高功率(如PBV-R470-F1-0.5的脉冲功率为2J/10ms).

精度与温漂：容差为±0.5%或±1%,温度系数(TCR)低至50ppm/K,部分型号可达30ppm/K.

封装与安装：采用TO-247类似封装,4引脚设计,适合PCB安装,优化散热性能.

应用领域：主要用于电机控制\变频技术\大功率开关电源及汽车电子(如BMS系统).

优势

高脉冲负载能力：适合瞬时高电流场景.

长期稳定性：偏差极小,适用于精密电路.

耐高温焊接：可承受350°C焊接温度,适合自动化生产.

2. PBH 系列电阻

技术特点

阻值范围：典型型号如PBH-2R70-F1-1.0(2.7Ω)和PBH-R100-F1-0.5(100mΩ),覆盖毫欧至欧姆级.

功率能力：标称功率3W,无散热片时负载能力可达10W.

精度与温漂：容差±0.5%或±1%,TCR为50ppm/K.

封装与安装：径向设计,带中心安装孔和大底板,优化传热(类似TO-247结构).

应用领域：工业电源\汽车电子(如电机驱动\BMS)及高精度测量设备.

优势

散热设计：大底板和安装孔提升热管理效率.

高可靠性：通过ISA-PLAN工艺实现低TCR和高稳定性.

模块化兼容性：适合高密度电路布局.

3. 对比总结

4. 选择建议

PBV系列：适合需要高脉冲负载和紧凑封装的场景(如开关电源).

PBH系列：适用于需优化散热的持续高功率应用(如汽车BMS)

PBV系列10W 0.5m ~ 1 Ohms			PBH系列10W 2m ~ 100 Ohms
型号	阻值	容差	型号	电阻	容差
PBV-R0005-F1-1.0	0.5 mOhms	±1%	PBH-R0036-F1-1.0	3.6 mOhms	±1%
PBV-R0005-F1-5.0	0.5 mOhms	±5%	PBH-R005-F1-1.0	5 mOhms	±1%
PBV-R001-F1-0.5	1 mOhms	±0.5%	PBH-R010-F1-0.5	10 mOhms	±0.5%
PBV-R001-F1-1.0	1 mOhms	±1%	PBH-R010-F1-1.0	10 mOhms	±1%
PBV-R001-F1-5.0	1 mOhms	±5%	PBH-R010-F1-5.0	10 mOhms	±5%
PBV-R0015-F1-0.5	1.5 mOhms	±0.5%	PBH-R020-F1-1.0	20 mOhms	±1%
PBV-R002-F1-0.5	2 mOhms	±0.5%	PBH-R022-F1-0.5	22 mOhms	±0.5%
PBV-R002-F1-1.0	2 mOhms	±1%	PBH-R033-F1-0.5	33 mOhms	±0.5%
PBV-R0022-F1-0.5	2.2 mOhms	±0.5%	PBH-R047-F1-1.0	47 mOhms	±1%
PBV-R0022-F1-1.0	2.2 mOhms	±1%	PBH-R050-F1-0.5	50 mOhms	±0.5%
PBV-R003-F1-0.5	3 mOhms	±0.5%	PBH-R050-F1-1.0	50 mOhms	±1%
PBV-R003-F1-5.0	3 mOhms	±5%	PBH-R100-F1-0.5	100 mOhms	±0.5%
PBV-R0033-F1-0.5	3.3 mOhms	±0.5%	PBH-R100-F1-1.0	100 mOhms	±1%
PBV-R0033-F1-1.0	3.3 mOhms	±1%	PBH-R120-F1-1.0	120 mOhms	±1%
PBV-R0047-F1-0.5	4.7 mOhms	±0.5%	PBH-R150-F1-1.0	150 mOhms	±1%
PBV-R005-F1-0.5	5 mOhms	±0.5%	PBH-R180-F1-1.0	180 mOhms	±1%
PBV-R005-F1-1.0	5 mOhms	±1%	PBH-R220-F1-1.0	220 mOhms	±1%
PBV-R0068-F1-0.5	6.8 mOhms	±0.5%	PBH-R270-F1-1.0	270 mOhms	±1%
PBV-R0068-F1-1.0	6.8 mOhms	±1%	PBH-R330-F1-1.0	330 mOhms	±1%
PBV-R010-F1-0.5	10 mOhms	±0.5%	PBH-R470-F1-1.0	470 mOhms	±1%
PBV-R010-F1-1.0	10 mOhms	±1%	PBH-R470-F1-5.0	470 mOhms	±5%
PBV-R015-F1-0.5	15 mOhms	±0.5%	PBH-R500-F1-0.5	500 mOhms	±0.5%
PBV-R015-F1-1.0	15 mOhms	±1%	PBH-R820-F1-1.0	820 mOhms	±1%
PBV-R020-F1-0.5	20 mOhms	±0.5%	PBH-1R00-F1-0.5	1 Ohms	±0.5%
PBV-R020-F1-1.0	20 mOhms	±1%	PBH-1R00-F1-1.0	1 Ohms	±1%
PBV-R022-F1-0.5	22 mOhms	±0.5%	PBH-1R20-F1-1.0	1.2 Ohms	±1%
PBV-R022-F1-1.0	22 mOhms	±1%	PBH-1R50-F1-1.0	1.5 Ohms	±1%
PBV-R025-F1-0.5	25 mOhms	±0.5%	PBH-1R80-F1-1.0	1.8 Ohms	±1%
PBV-R025-F1-1.0	25 mOhms	±1%	PBH-2R00-F1-1.0	2 Ohms	±1%
PBV-R033-F1-0.5	33 mOhms	±0.5%	PBH-2R20-F1-1.0	2.2 Ohms	±1%
PBV-R033-F1-1.0	33 mOhms	±1%	PBH-2R20-F1-5.0	2.2 Ohms	±5%
PBV-R047-F1-0.5	47 mOhms	±0.5%	PBH-2R70-F1-1.0	2.7 Ohms	±1%
PBV-R050-F1-0.5	50 mOhms	±0.5%	PBH-3R30-F1-1.0	3.3 Ohms	±1%
PBV-R050-F1-1.0	50 mOhms	±1%	PBH-3R90-F1-1.0	3.9 Ohms	±1%
PBV-R068-F1-0.5	68 mOhms	±0.5%	PBH-4R70-F1-1.0	4.7 Ohms	±1%
PBV-R068-F1-1.0	68 mOhms	±1%	PBH-5R60-F1-1.0	5.6 Ohms	±1%
PBV-R100-F1-0.5	100 mOhms	±0.5%	PBH-6R80-F1-1.0	6.8 Ohms	±1%
PBV-R100-F1-1.0	100 mOhms	±1%	PBH-8R20-F1-1.0	8.2 Ohms	±1%
PBV-R150-F1-0.5	150 mOhms	±0.5%	PBH-10R0-F1-0.5	10 Ohms	±0.5%
PBV-R150-F1-1.0	150 mOhms	±1%	PBH-10R0-F1-1.0	10 Ohms	±1%
PBV-R200-F1-0.5	200 mOhms	±0.5%	PBH-12R0-F1-1.0	12 Ohms	±1%
PBV-R220-F1-0.5	220 mOhms	±0.5%	PBH-18R0-F1-1.0	18 Ohms	±1%
PBV-R500-F1-1.0	500 mOhms	±1%	PBH-18R0-F1-5.0	18 Ohms	±5%
PBV-1R00-F1-0.5	1 Ohms	±0.5%	PBH-20R0-F1-1.0	20 Ohms	±1%
			PBH-27R0-F1-1.0	27 Ohms	±1%
			PBH-33R0-F1-0.5	33 Ohms	±0.5%
			PBH-47R0-F1-1.0	47 Ohms	±1%
			PBH-100R-F1-1.0	100 Ohms	±1%

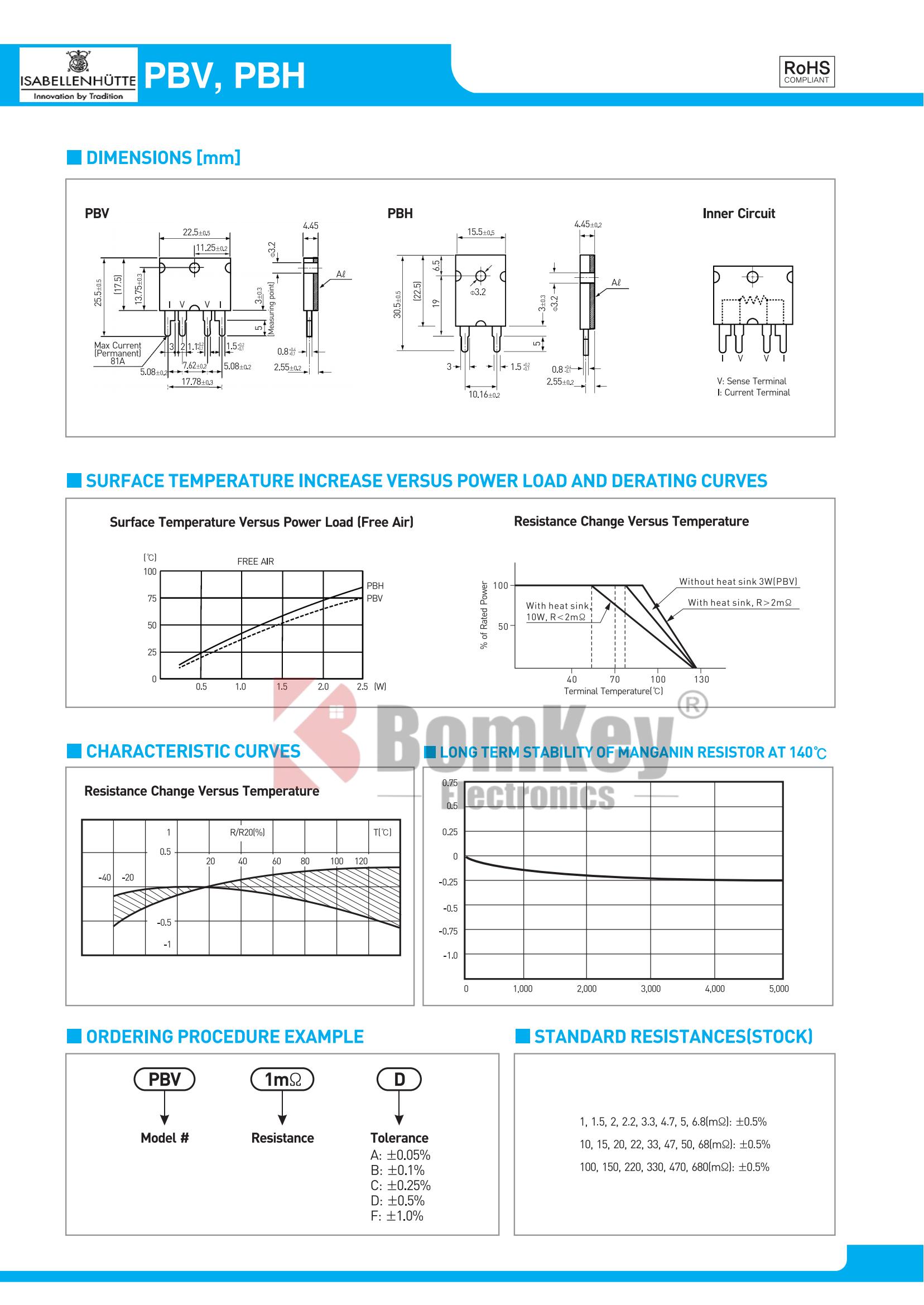

^{PBH VS PBV 系列功率电阻器对照资料下载}

PBH系列功率电阻器规格书下载

PBV系列功率电阻器规格书下载
