在线询价直流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电压 - 输入（最小） | 电压 - 输入（最大） | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDQE20-Q48-S15-UDC/DC CONVERTER 15V 20W |
2,813 |
|
规格书 |
PDQE20-U (20W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 1 | 15V | - | - | - | 1.333A | 20W | 1.5 kV | ITE (Commercial) | 91% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
|
PDQE20-Q24-D15-UDC/DC CONVERTER +/-15V 20W |
1,004 |
|
规格书 |
PDQE20-U (20W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 2 | 15V | -15V | - | - | 667mA, 667mA | 20W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
TP-VR-2405-DCDC/DC CONVERTER 5V 15W |
3,607 |
|
规格书 |
TP-VR | Box | Active | Enclosed | 10V | 32V | 1 | 5V | - | - | - | 3A | 15W | - | ITE (Commercial) | 80% | -40°C ~ 65°C | Chassis Mount | 2.75" L x 1.25" W x 1.00" H (69.9mm x 31.8mm x 25.4mm) | - | - |
|

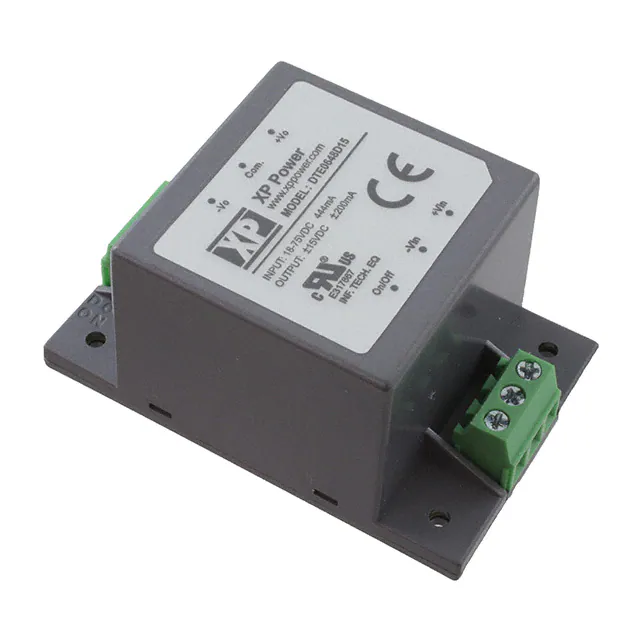

DTE0648D15DC/DC CONVERTER +/-15V 6W |
2,468 |
|
规格书 |
DTE06 (6W) | Box | Active | Enclosed | 18V | 75V | 2 | 15V | -15V | - | - | 200mA, 200mA | 6W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|
PDQE10-Q24-D5-TDC/DC CONVERTER +/-5V 10W |
3,912 |
|
规格书 |
PDQE10 (10W) | Bulk | Not For New Designs | Enclosed | 9V | 36V | 2 | 5V | -5V | - | - | 1A, 1A | 10W | 1.5 kV | ITE (Commercial) | 83% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PDQE10-Q48-D15-TDC/DC CONVERTER +/-15V 10W |
3,741 |
|
规格书 |
PDQE10 (10W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 15V | -15V | - | - | 333mA, 333mA | 10W | 1.5 kV | ITE (Commercial) | 87% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | EN | 55024; 55032 Class A |
|
VYB10W-Q24-S12-TDC/DC CONVERTER 12V 10W |
1,970 |
|
规格书 |
VYB10W-T (10W) | Bulk | Obsolete | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 833mA | 10W | - | - | 81% | -40°C ~ 85°C | Chassis Mount | 2.06" L x 2.17" W x 0.75" H (52.3mm x 55.0mm x 19.0mm) | - | - |
|

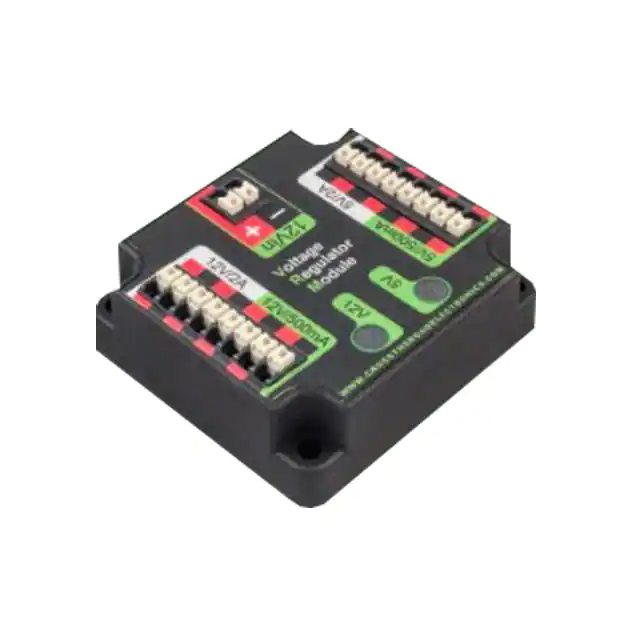

14-868277DC/DC CONVERTER 12V 5V |
3,657 |
|
规格书 |
- | Retail Package | Active | Enclosed | 5V | 16V | 2 | 12V | 5V | - | - | 1.5A, 1.5A | - | - | - | - | - | Chassis Mount | 2.22" L x 2.03" W x 0.78" H (56.4mm x 51.6mm x 19.8mm) | - | - |
|

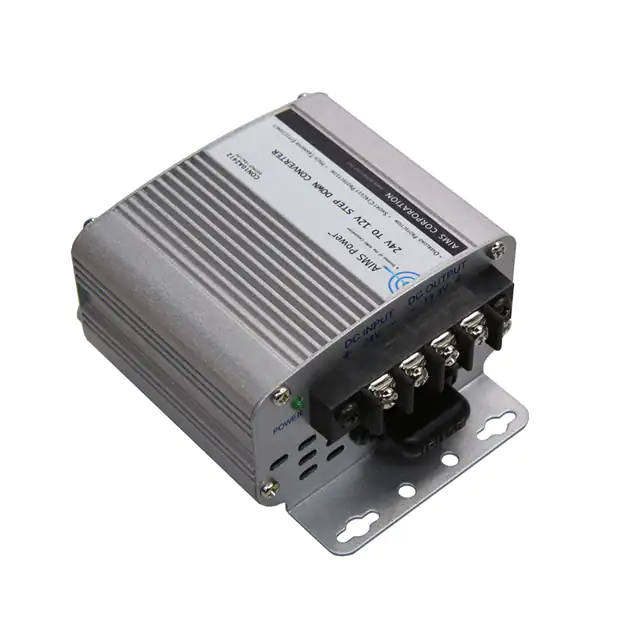

CON10A241210 AMP 24VDC TO 12VDC CONVERTER |
4,480 |
|
规格书 |
- | Box | Active | Enclosed | 20V | 37V | 1 | 12.5V ~ 13.5V | - | - | - | 12A | 120W | - | - | 91% | - | Chassis Mount | 4.41" L x 3.39" W x 2.20" H (112.0mm x 86.1mm x 55.9mm) | - | - |
|
PYBE20-Q48-D12-TDC/DC CONVERTER +/-12V 20W |
2,388 |
|
规格书 |
PYBE20 (20W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 834mA, 834mA | 20W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.83" H (76.0mm x 31.5mm x 21.2mm) | EN | 55024; 55032 Class A |
|
|
PDQE20-Q48-D5-UDC/DC CONVERTER +/-5V 20W |
4,607 |
|
规格书 |
PDQE20-U (20W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 5V | -5V | - | - | 2A, 2A | 20W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 95°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
PYBE30-Q48-S5H-TDC-DC ISOLATED, 30 W, 18~75 VDC |
3,914 |
|
规格书 |
PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 1 | 5V | - | - | - | 6A | 30W | 1.5 kV | ITE (Commercial) | 87% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | CE, cURus, UKCA | 60950-1; 62368-1 |
|
RPM15-2412SFW/PDC/DC CONVERTER 12V 15W |
3,843 |
|
规格书 |
* | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PDQE20-Q48-D15-UDC/DC CONVERTER +/-15V 20W |
1,779 |
|
规格书 |
PDQE20-U (20W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 15V | -15V | - | - | 667mA, 667mA | 20W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
|
PDQE20-Q48-D12-UDC/DC CONVERTER +/-12V 20W |
4,975 |
|
规格书 |
PDQE20-U (20W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 833mA, 833mA | 20W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
|
PDQE20-Q24-D12-UDC/DC CONVERTER +/-12V 20W |
2,280 |
|
规格书 |
PDQE20-U (20W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 2 | 12V | -12V | - | - | 833mA, 833mA | 20W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
|
AE15B-UW-S5-TDC-DC ISOLATED, 15 W, 200~1500 V |
3,125 |
|
规格书 |
AE15B-UW (15W) | Tray | Not For New Designs | Enclosed | 200V | 1500V | 1 | 5V | - | - | - | 2A | 10W | 5.6 kV | ITE (Commercial) | 64% | -40°C ~ 70°C (With Derating) | Chassis Mount | 5.31" L x 2.76" W x 1.32" H (135.0mm x 70.0mm x 33.5mm) | CE, EN, UKCA | - |
|
|
AE15B-UW-S12-TDC-DC ISOLATED, 15 W, 200~1500 V |
1,372 |
|
规格书 |
AE15B-UW (15W) | Tray | Not For New Designs | Enclosed | 200V | 1500V | 1 | 12V | - | - | - | 1.25A | 15W | 5.6 kV | ITE (Commercial) | 71% | -40°C ~ 70°C (With Derating) | Chassis Mount | 5.31" L x 2.76" W x 1.32" H (135.0mm x 70.0mm x 33.5mm) | CE, EN, UKCA | - |
|
PDQE15-Q48-D12-UDC/DC CONVERTER +/-12V 15W |
1,597 |
|
规格书 |
PDQE15-U (15W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 625mA, 625mA | 15W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 95°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
|
|
PDQE15-Q24-D15-UDC/DC CONVERTER +/-15V 15W |
1,003 |
|
规格书 |
PDQE15-U (15W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 2 | 15V | -15V | - | - | 500mA, 500mA | 15W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 95°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE | 62368-1 |
