在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0924M402FAN AXIAL 92X25MM 24VDC WIRE |
1,105 |
|
规格书 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 1.68 W | 2250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9S0924M4021FAN AXIAL 92X25MM 24VDC WIRE |
3,058 |
|
规格书 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 1.68 W | 2250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
GB1205PKV1-8AY.GNFAN BLOWER 50X20MM 12VDC WIRE |
2,974 |
|
规格书 |
MagLev® GB | Bulk | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 5.7 CFM (0.160m³/min) | 0.660 in H2O (164.4 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Locked Rotor Protection | 35.0dB(A) | 1.5 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.073 lb (33.11 g) |
|
|
EF92251BX-1000U-H9912VDC FAN 92X25MM PWM |
4,699 |
|
规格书 |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 36.9dB(A) | 1.62 W | 3400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF92251BX-1000U-F9912VDC FAN 92X25MM TACH |
1,571 |
|
规格书 |
EF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 36.9dB(A) | 1.62 W | 3400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
BFB0612MB-NFAN BLOWER 60X15.4MM 12VDC WIRE |
4,759 |
|
规格书 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.40mm | 4.0 CFM (0.112m³/min) | 0.431 in H2O (107.4 Pa) | Ball | Blower | Locked Rotor Protection | 32.0dB(A) | 1.56 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
PF40281B1-000U-S99FAN AXIAL 40X28MM 12VDC WIRE |
2,081 |
|
规格书 |
PF | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 6.12 W | 17600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.093 lb (42.18 g) |
|
|
CFM-9238B-140-473-20FAN AXIAL 92X37.5MM 12VDC WIRE |
3,131 |
|
规格书 |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.3dB(A) | 6.48 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9238B-240-473-20FAN AXIAL 92X37.5MM 24VDC WIRE |
4,412 |
|
规格书 |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.50mm | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.3dB(A) | 9.6 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD8032-12LBFAN AXIAL 80.5X32MM 12VDC WIRE |
3,667 |
|
规格书 |
OD8032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 40.0 CFM (1.12m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 31.0dB | - | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
CFM-4020BG-1120-429-20FAN AXIAL 40X20MM 12VDC WIRE |
4,101 |
|
规格书 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 14.1 CFM (0.395m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.9dB(A) | 3.6 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3828BF-1235-614-22FAN AXIAL 38X28MM 12VDC WIRE |
4,505 |
|
规格书 |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 22.1 CFM (0.619m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 61.4dB(A) | 15.36 W | 23500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
GF60151B9-1E01U-AC9Thermal Products |
1,222 |
|
规格书 |
GF | Bulk | Active | 12VDC | Round - 84.9mm Dia | 15.40mm | 9.8 CFM (0.274m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart | 17.1dB(A) | 300 mW | 2200 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF60151B8-1E00U-AC9Thermal Products |
3,594 |
|
规格书 |
GF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.5 CFM (0.406m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart | 24.9dB(A) | 840 mW | 3200 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF60151B6-1E00U-AC9Thermal Products |
1,304 |
|
规格书 |
GF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.3 CFM (0.596m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 34.5dB(A) | 1.5 W | 4500 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF60151B9-1E00U-AC9Thermal Products |
2,740 |
|
规格书 |
GF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 10.6 CFM (0.297m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart | 17.1dB(A) | 390 mW | 2300 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
DC0251005H2B-3T3FAN 25X10MM 5VDC TACH MOLEX 22-0 |
4,787 |
|
规格书 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 400 mW | 13000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
109P0624W602FAN AXIAL 60X20MM 24VDC WIRE |
2,717 |
|
规格书 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.68 W | 4200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109P0612W602FAN AXIAL 60X20MM 12VDC WIRE |
2,222 |
|
规格书 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.56 W | 4200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|

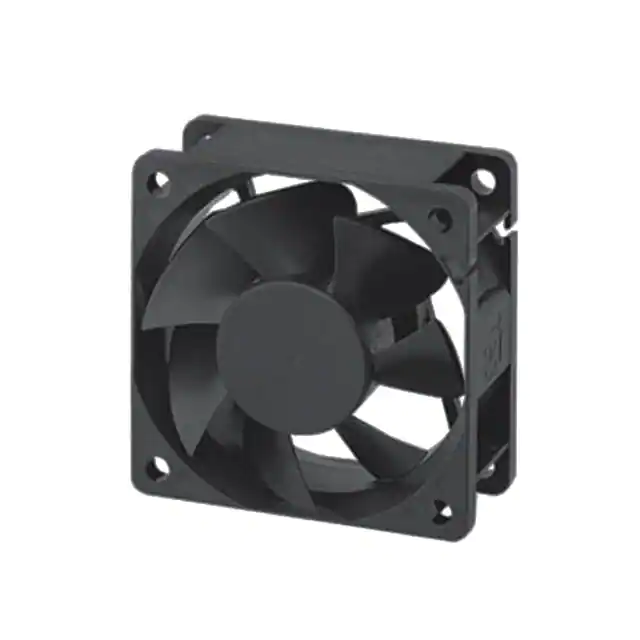

EE60252B1-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
1,960 |
|
规格书 |
EE | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart | 34.5dB(A) | 1.68 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.111 lb (50.35 g) |
