在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS1238M48B1+6-FHRFAN AXIAL 120X38MM 48VDC WIRE |
1,036 |
|
规格书 |
MS1238 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 125.0 CFM (3.50m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 46.0dB(A) | - | 2500 RPM | 4 Wire Leads | - | - | - | 0.667 lb (302.55 g) |
|
|
CFM-9225BG68-140-438-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
1,492 |
|
规格书 |
CFM-92BG68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.2 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.8dB(A) | 4.32 W | 4000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD1225-12HBIP5501AFAN AXIAL 120X25MM 12VDC WIRE |
3,351 |
|
规格书 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.0dB(A) | 5.4 W | 3100 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
|
OD1225-12HBIP5502AFAN AXIAL 120X25MM 12VDC WIRE |
3,279 |
|
规格书 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Alarm Sensor | 42.0dB(A) | 5.4 W | 3100 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
|
OD1225-12LBIP5501AFAN AXIAL 120X25MM 12VDC WIRE |
1,341 |
|
规格书 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.0dB(A) | 2.5 W | 1900 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
|
OD1225-12MBIP5502AFAN AXIAL 120X25MM 12VDC WIRE |
3,872 |
|
规格书 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Alarm Sensor | 35.0dB(A) | 4 W | 2500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
|
OD1225-48MBThermal Products |
2,337 |
|
规格书 |
OD1225 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB(A) | 3.5 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD1225-48LBThermal Products |
3,069 |
|
规格书 |
OD1225 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 25.0dB(A) | 2.9 W | 1900 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
9GA0612H101FAN AXIAL 60X38MM 12VDC WIRE |
3,333 |
|
规格书 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 40.0 CFM (1.12m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 6.6 W | 11500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GA0612H1011FAN AXIAL 60X38MM 12VDC WIRE |
2,458 |
|
规格书 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 40.0 CFM (1.12m³/min) | 1.500 in H2O (373.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 52.0dB(A) | 6.6 W | 11500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

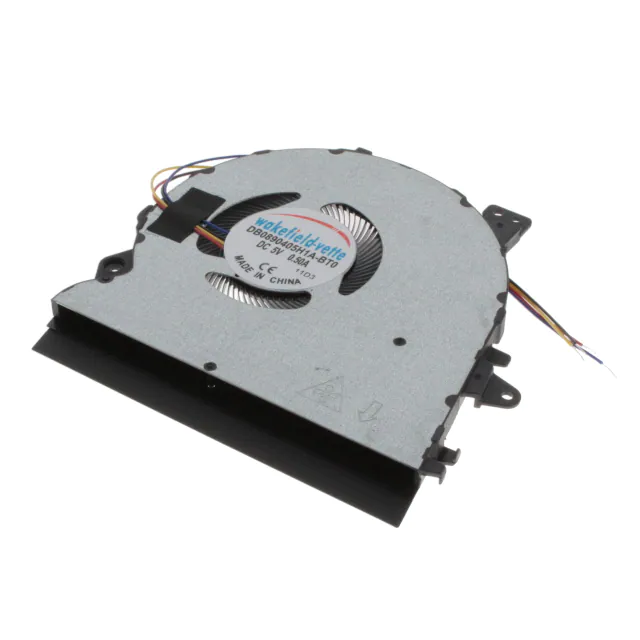

DB0890405H1A-BT0FAN BLOWER 89.1X4.7MM 5VDC RECT |
4,029 |
|
规格书 |
Slim-Line | Bulk | Obsolete | 5VDC | Rectangular/Rounded - 89.1mm L x 83.8mm H | 4.70mm | 3.9 CFM (0.109m³/min) | 0.448 in H2O (111.6 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 38.5dB(A) | 1.5 W | 3400 RPM | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 0.085 lb (38.56 g) |
|
|
DC0602524W2B-BT4FAN 60X25MM 24VDC PWM/TACH MOLEX |
1,293 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 55.2 CFM (1.55m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 12.96 W | 9800 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602524V2B-BT4FAN 60X25MM 24VDC PWM/TACH MOLEX |
2,091 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 47.8 CFM (1.34m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 11.52 W | 7500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0602524U2B-BT4FAN 60X25MM 24VDC PWM/TACH MOLEX |
1,578 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 10.8 W | 6800 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC0803812L2B-3T0FAN AXIAL 80X38MM 12VDC WIRE |
4,616 |
|
规格书 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 4.8 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|
|
DC0803824L2B-2T0FAN 80X38MM 24VDC |
1,348 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 9.6 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

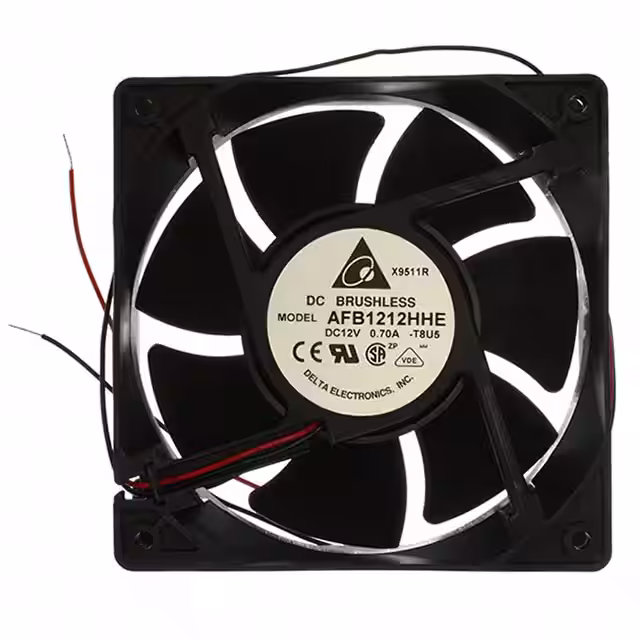

AFB1212HHE-T8U5FAN AXIAL 120X38MM 12VDC WIRE |
3,892 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.52 W | 2900 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
06038DA-12S-EUD-0FAN AXIAL 60X38MM 12VDC WIRE |
2,415 |
|
规格书 |
06038DA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 66.4 CFM (1.86m³/min) | 3.713 in H2O (925.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.5dB(A) | 19.8 W | 17000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UR, VDE | 0.271 lb (122.92 g) |
|
OD1232-48HB(10)FAN AXIAL 120X32MM 48VDC WIRE |
3,402 |
|
规格书 |
OD1232 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 120.0 CFM (3.36m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.0dB | - | 3750 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.47 lb (213.19 g) |
|
|
06038DA-12Q-EUD-0FAN AXIAL 60X38MM 12VDC WIRE |
4,765 |
|
规格书 |
06038DA | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 50.2 CFM (1.41m³/min) | 2.310 in H2O (575.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.0dB | 9.4 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
