在线询价直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G0948A202FAN AXIAL 92X32MM 48VDC WIRE |
2,344 |
|
规格书 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 88.2 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 7.68 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0948A2021FAN AXIAL 92X32MM 48VDC WIRE |
2,894 |
|
规格书 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 88.3 CFM (2.50m³/min) | 0.462 in H2O (115.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 7.68 W | 4300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0948H202FAN AXIAL 92X32MM 48VDC WIRE |
2,436 |
|
规格书 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 3.84 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0948H2021FAN AXIAL 92X32MM 48VDC WIRE |
2,498 |
|
规格书 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 3.84 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0948M202FAN AXIAL 92X32MM 48VDC WIRE |
4,184 |
|
规格书 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 42.4 CFM (1.19m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | - | 25.0dB(A) | 2.4 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
9G0948S202FAN AXIAL 92X32MM 48VDC WIRE |
4,427 |
|
规格书 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 32.00mm | 70.6 CFM (1.98m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | - | 38.0dB(A) | 5.28 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
CFM-8025BG68-160-487-22DC AXIAL FAN, 80 MM SQUARE, 25 M |
4,583 |
|
规格书 |
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 63.6 CFM (1.78m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.7dB(A) | 5.52 W | 6000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025BG68-260-487-22DC AXIAL FAN, 80 MM SQUARE, 25 M |
4,635 |
|
规格书 |
CFM-80BG68 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 63.6 CFM (1.78m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.7dB(A) | 5.52 W | 6000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0803824U2B-2T2FAN 80X38MM 24VDC MOLEX 22-01-10 |
4,426 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 105.5 CFM (2.95m³/min) | 1.360 in H2O (338.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 36 W | 7500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803824M2B-2T2FAN 80X38MM 24VDC MOLEX 22-01-10 |
3,227 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 71.8 CFM (2.01m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 18.24 W | 5600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803824H2B-2T2FAN 80X38MM 24VDC MOLEX 22-01-10 |
1,855 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 84.8 CFM (2.37m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 24 W | 6100 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC1203812J2B-BT0FAN AXIAL 120X38MM 12VDC WIRE |
2,597 |
|
规格书 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 101.4 CFM (2.84m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 2.16 W | 2300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.508 lb (230.42 g) |
|
|
DC1203812V2B-BT0FAN AXIAL 120X38MM 12VDC WIRE |
2,419 |
|
规格书 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 18 W | 4100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.508 lb (230.42 g) |
|
|
DC1203812U2B-BT0FAN AXIAL 120X38MM 12VDC WIRE |
3,307 |
|
规格书 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 178.4 CFM (5.00m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 18.6 W | 4200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.508 lb (230.42 g) |
|
|
DC1203848V2B-2T0FAN 120X38MM 48VDC |
4,276 |
|
规格书 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 38.4 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824U2B-3T0FAN 120X38MM 24VDC TACH |
2,461 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 18 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203824V2B-3T0FAN 120X38MM 24VDC TACH |
2,476 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 19.2 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC1203848U2B-2T0FAN 120X38MM 48VDC |
3,998 |
|
规格书 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 36 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

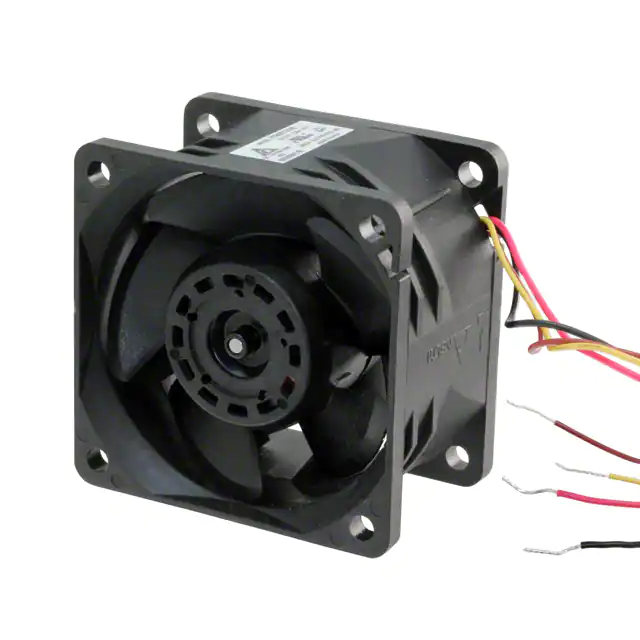

PFM0612XHEB7TFAN AXIAL 60X38MM 12VDC WIRE |
3,561 |
|
规格书 |
PFM - Three-Phase | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 64.4 CFM (1.80m³/min) | 2.343 in H2O (583.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.1dB(A) | 13.8 W | 18500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.219 lb (99.34 g) |
.GN.JPG)
|
PMD1206PMB1-A.(2).GNFAN AXIAL 60X38MM 12VDC WIRE |
4,812 |
|
规格书 |
PMD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 56.5 CFM (1.58m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 10.6 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.199 lb (90.26 g) |
