在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

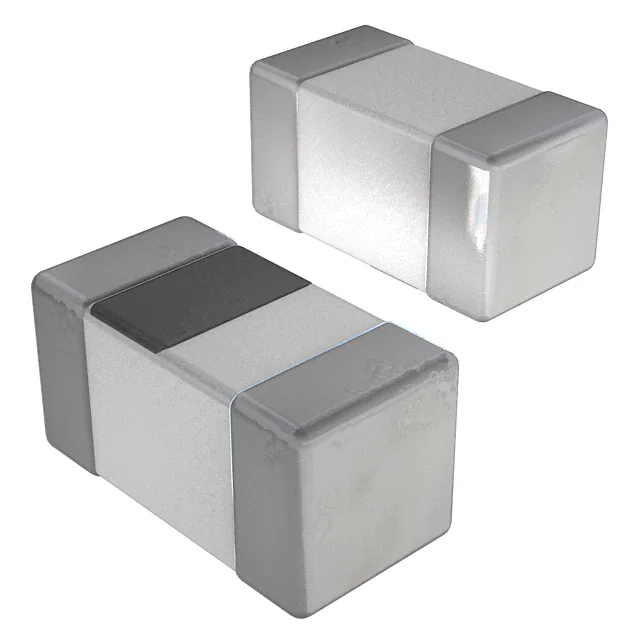

CIH03Q68NJNCFIXED IND 68NH 110MA 3.3 OHM SMD Samsung Electro-Mechanics |
4,348 |
|
规格书 |
CIH03Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 68 nH | ±5% | 110 mA | - | Unshielded | 3.3Ohm Max | 15 @ 500MHz | 1.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|

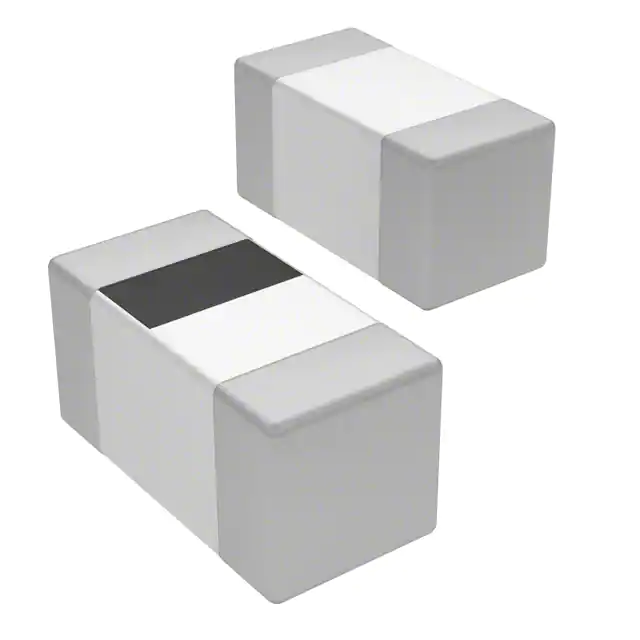

CIH05Q12NJNCFIXED IND 12NH 400MA 300MOHM SMD Samsung Electro-Mechanics |
3,488 |
|
规格书 |
CIH05Q | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 12 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 8 @ 100MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CIH05Q3N9SNCFIXED IND 3.9NH 700MA 180MOHM SM Samsung Electro-Mechanics |
3,398 |
|
规格书 |
CIH05Q | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.9 nH | ±0.3nH | 700 mA | - | Unshielded | 180mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CIH05Q82NJNCFIXED IND 82NH 200MA 1.2 OHM SMD Samsung Electro-Mechanics |
1,528 |
|
规格书 |
CIH05Q | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 82 nH | ±5% | 200 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CIH05QR12JNCFIXED IND 120NH 150MA 2 OHM SMD Samsung Electro-Mechanics |
4,443 |
|
规格书 |
CIH05Q | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 120 nH | ±5% | 150 mA | - | Unshielded | 2Ohm Max | 8 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

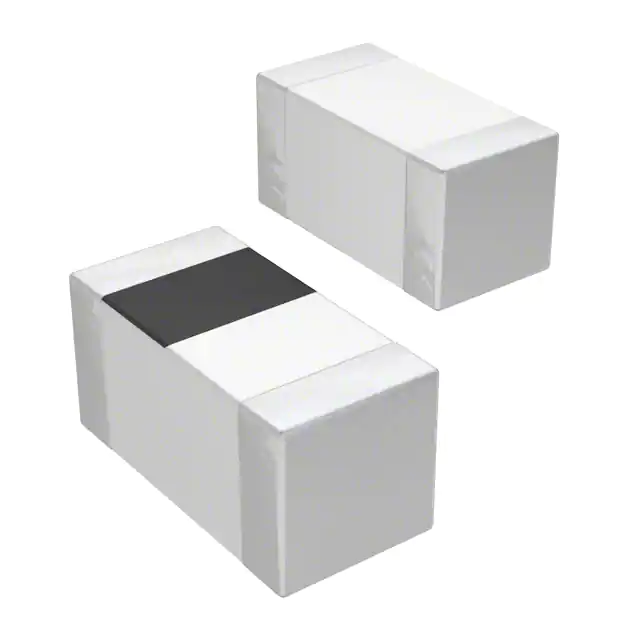

CIH10TR10JNDFIXED IND 100NH 350MA 1 OHM SMD Samsung Electro-Mechanics |
4,632 |
|
规格书 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 100 nH | ±5% | 350 mA | - | Unshielded | 1Ohm Max | 12 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-,80mm.jpg)
|
CIL10J1R0KNCFIXED IND 1UH 25MA 600 MOHM SMD Samsung Electro-Mechanics |
4,833 |
|
规格书 |
CIL10 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 1 µH | ±10% | 25 mA | - | Shielded | 600mOhm Max | 35 @ 10MHz | 70MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CIL10J1R2KNCFIXED IND 1.2UH 25MA 800MOHM SMD Samsung Electro-Mechanics |
1,270 |
|
规格书 |
CIL10 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.2 µH | ±10% | 25 mA | - | Shielded | 800mOhm Max | 35 @ 10MHz | 60MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CIL10J1R5KNCFIXED IND 1.5UH 25MA 800MOHM SMD Samsung Electro-Mechanics |
2,850 |
|
规格书 |
CIL10 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.5 µH | ±10% | 25 mA | - | Shielded | 800mOhm Max | 35 @ 10MHz | 55MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CIL10J1R8KNCFIXED IND 1.8UH 25MA 950MOHM SMD Samsung Electro-Mechanics |
1,442 |
|
规格书 |
CIL10 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.8 µH | ±10% | 25 mA | - | Shielded | 950mOhm Max | 35 @ 10MHz | 50MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
