在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH6D28NP-3R0NCFIXED IND 3UH 3A 24 MOHM SMD Sumida America Components Inc. |
35,910 |
|
规格书 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3 µH | ±30% | 3 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|

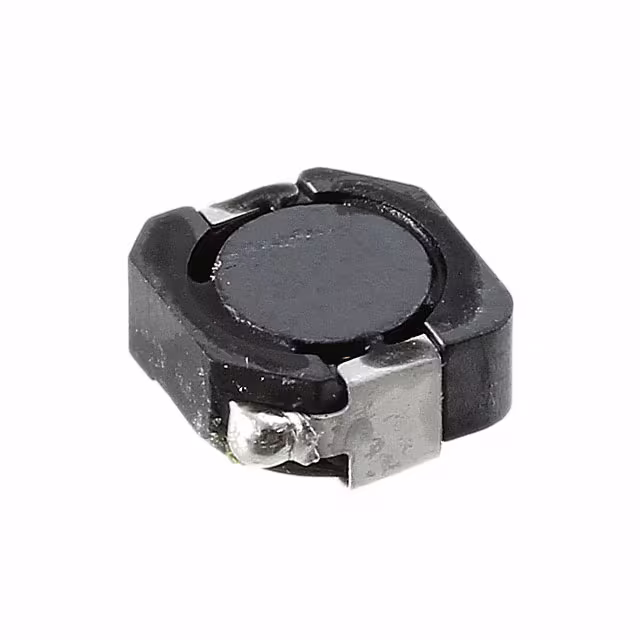

CDRH5D28RNP-100NCFIXED IND 10UH 1.3A 54 MOHM SMD Sumida America Components Inc. |
55,058 |
|
规格书 |
CDRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1.3 A | - | Shielded | 54mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
CDRH4D28NP-2R2NCFIXED IND 2.2UH 2.04A 31.3 MOHM Sumida America Components Inc. |
40,256 |
|
规格书 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 2.04 A | - | Shielded | 31.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|

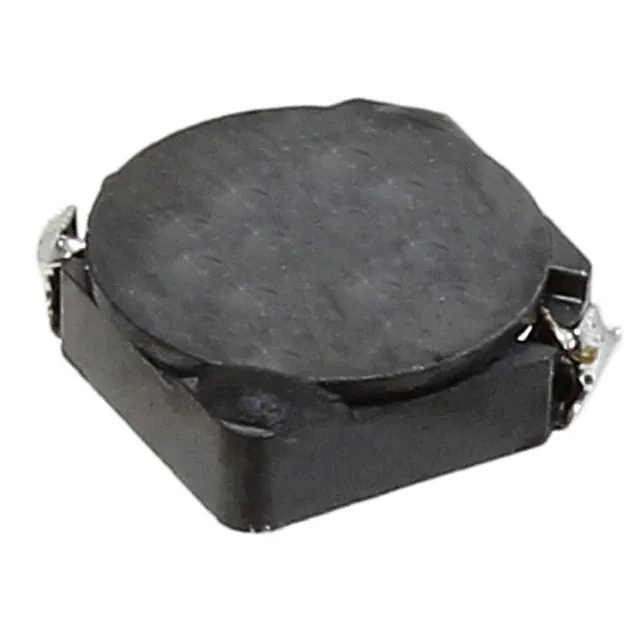

CDRH5D16NP-4R7NCFIXED IND 4.7UH 2.1A 64.1MOHM SM Sumida America Components Inc. |
9,611 |
|
规格书 |
CDRH5D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 2.1 A | 2.15A | Shielded | 64.1mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.220" W (5.60mm x 5.60mm) | 0.071" (1.80mm) |
|

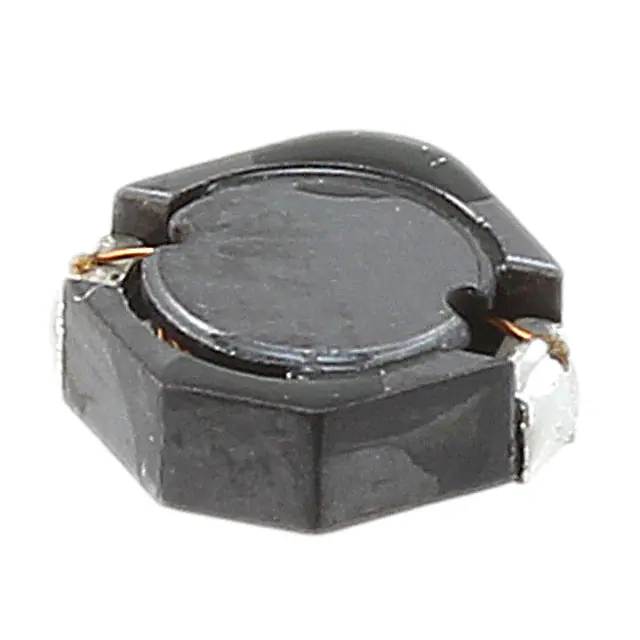

CDRH4D18CLDNP-4R7PCFIXED IND 4.7UH 2A 61 MOHM SMD Sumida America Components Inc. |
33,489 |
|
规格书 |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±25% | 2 A | 900mA | Shielded | 61mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
CDRH5D28NP-3R0NCFIXED IND 3UH 2.4A 24 MOHM SMD Sumida America Components Inc. |
16,458 |
|
规格书 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3 µH | ±30% | 2.4 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
CDRH62BNP-220MC-BFIXED IND 22UH 740MA 340MOHM SMD Sumida America Components Inc. |
7,673 |
|
规格书 |
CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 740 mA | - | Shielded | 340mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|

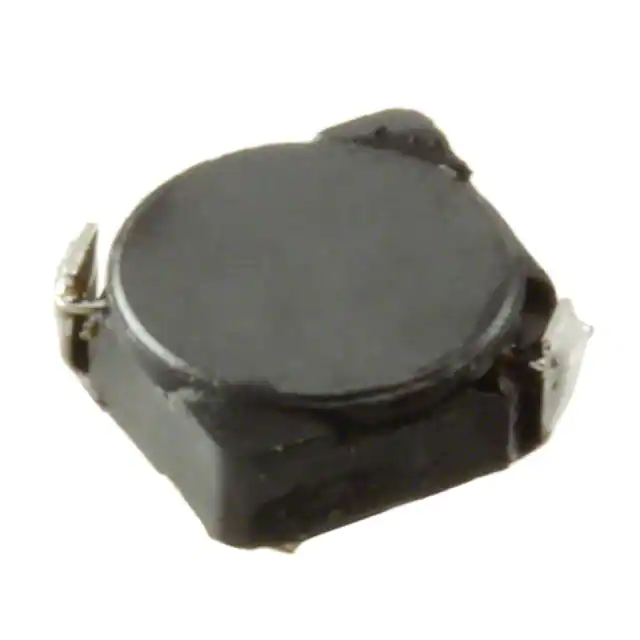

CDRH4D18NP-100NCFIXED IND 10UH 610MA 200MOHM SMD Sumida America Components Inc. |
6,663 |
|
规格书 |
CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 610 mA | - | Shielded | 200mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
CDRH5D28NP-150NCFIXED IND 15UH 1.1A 103 MOHM SMD Sumida America Components Inc. |
4,415 |
|
规格书 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 1.1 A | - | Shielded | 103mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CDRH5D28NP-8R2NCFIXED IND 8.2UH 1.6A 53 MOHM SMD Sumida America Components Inc. |
3,555 |
|
规格书 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±30% | 1.6 A | - | Shielded | 53mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
