在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH127NP-6R1NCFIXED IND 6.1UH 6.6A 17.6MOHM SM Sumida America Components Inc. |
1,032 |
|
规格书 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.1 µH | -20%, +40% | 6.6 A | - | Shielded | 17.6mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

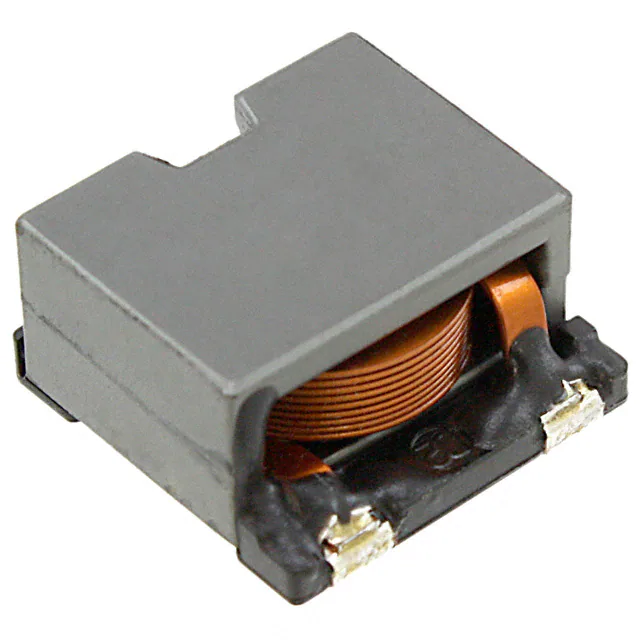

CDEP147NP-120MC-125FIXED IND 12UH 8.5A 13.31MOHM SM Sumida America Components Inc. |
716 |
|
规格书 |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 8.5 A | 8A | Shielded | 13.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CDEP147NP-100MC-125FIXED IND 10UH 10A 9.85 MOHM SMD Sumida America Components Inc. |
11,533 |
|
规格书 |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 10 A | 9.2A | Shielded | 9.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CDEP147NP-6R1MC-95FIXED IND 6.1UH 11A 7.8 MOHM SMD Sumida America Components Inc. |
3,722 |
|
规格书 |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.1 µH | ±20% | 11 A | 14.8A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|

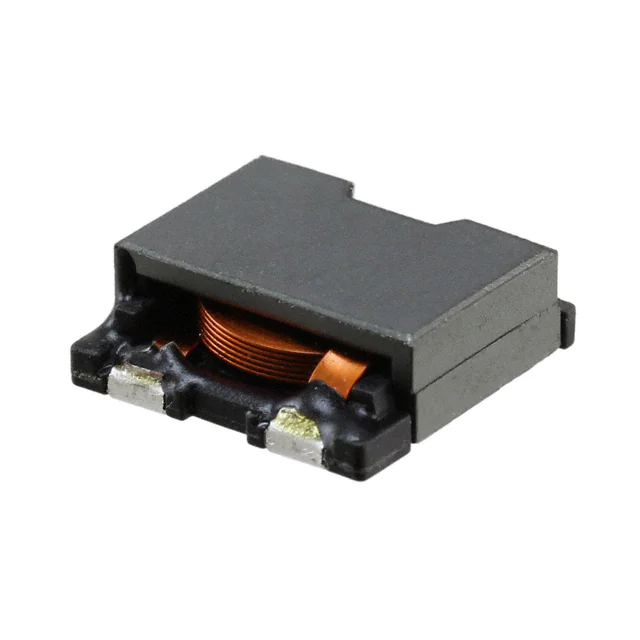

CDEP134NP-3R6MC-HFIXED IND 3.6UH 7.5A 12 MOHM SMD Sumida America Components Inc. |
4,084 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±20% | 7.5 A | 12.5A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
CDRH2D11/HPNP-100NCFIXED IND 10UH 520MA 559MOHM SMD Sumida America Components Inc. |
39,761 |
|
规格书 |
CDRH2D11/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 520 mA | 520mA | Shielded | 559mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
.jpg)
|
252012CDMCDDS-2R2MCFIXED IND 2.2UH 3A 82 MOHM SMD Sumida America Components Inc. |
21,821 |
|
规格书 |
252012CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 2.2 µH | ±20% | 3 A | 2.8A | Shielded | 82mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
CDRH62BNP-470MC-BFIXED IND 47UH 500MA 690MOHM SMD Sumida America Components Inc. |
48,674 |
|
规格书 |
CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 500 mA | - | Shielded | 690mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
0420CDMCCDS-1R0MCFIXED IND 1UH 6.5A 27 MOHM SMD Sumida America Components Inc. |
91,556 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 6.5 A | 8A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
252012CDMCDDS-R47MCFIXED IND 470NH 6.1A 21 MOHM SMD Sumida America Components Inc. |
127,430 |
|
规格书 |
252012CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 470 nH | ±20% | 6.1 A | 6.2A | Shielded | 21mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
