在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCMB133E-R68MSFIXED IND 680NH 28A 2.5 MOHM SMD Susumu |
2,408 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 nH | ±20% | 28 A | 49A | Unshielded | 2.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.130" (3.30mm) |
|
PCMC042T-R22MNFIXED IND 220NH 9A 8 MOHM SMD Susumu |
2,523 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 220 nH | ±20% | 9 A | 17A | Unshielded | 8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.079" (2.00mm) |
|
|
PCMC042T-R47MNFIXED IND 470NH 6A 15.5 MOHM SMD Susumu |
4,241 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 470 nH | ±20% | 6 A | 11.5A | Unshielded | 15.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.079" (2.00mm) |
|
|
PCMC042T-1R0MNFIXED IND 1UH 3.8A 36 MOHM SMD Susumu |
4,635 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±20% | 3.8 A | 8.5A | Unshielded | 36mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.079" (2.00mm) |
|

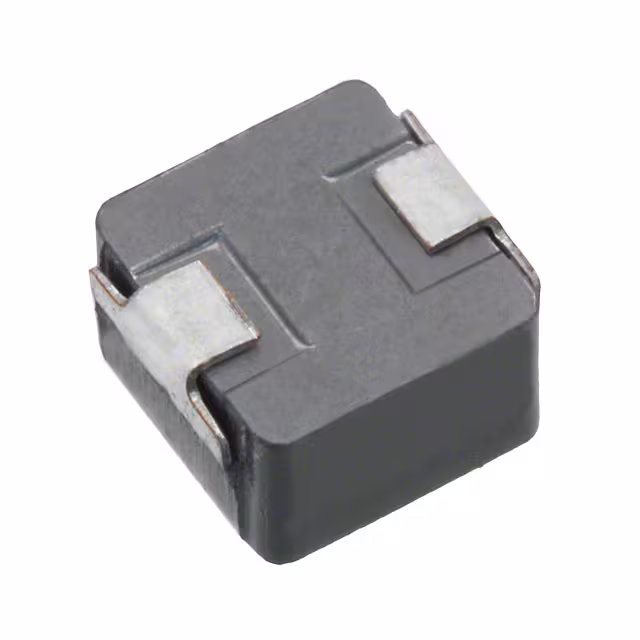

PCMC053T-R68MNFIXED IND 680NH 8.5A 12 MOHM SMD Susumu |
1,551 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 nH | ±20% | 8.5 A | 14A | Unshielded | 12mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.118" (3.00mm) |
|
|
PCMC053T-1R0MNFIXED IND 1UH 7A 14 MOHM SMD Susumu |
2,098 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±20% | 7 A | 11A | Unshielded | 14mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.118" (3.00mm) |
|
|
PCMC053T-1R2MNFIXED IND 1.2UH 6.5A 16 MOHM SMD Susumu |
4,840 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.2 µH | ±20% | 6.5 A | 11A | Unshielded | 16mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.118" (3.00mm) |
|
|
PCMC053T-1R5MNFIXED IND 1.5UH 6A 20 MOHM SMD Susumu |
4,906 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.5 µH | ±20% | 6 A | 10A | Unshielded | 20mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.118" (3.00mm) |
|
|
PCMC053T-2R2MNFIXED IND 2.2UH 5.5A 35 MOHM SMD Susumu |
1,011 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 5.5 A | 9A | Unshielded | 35mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.118" (3.00mm) |
|
|
PCMC053T-3R3MNFIXED IND 3.3UH 5A 38 MOHM SMD Susumu |
1,338 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 3.3 µH | ±20% | 5 A | 7A | Unshielded | 38mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.118" (3.00mm) |
