在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

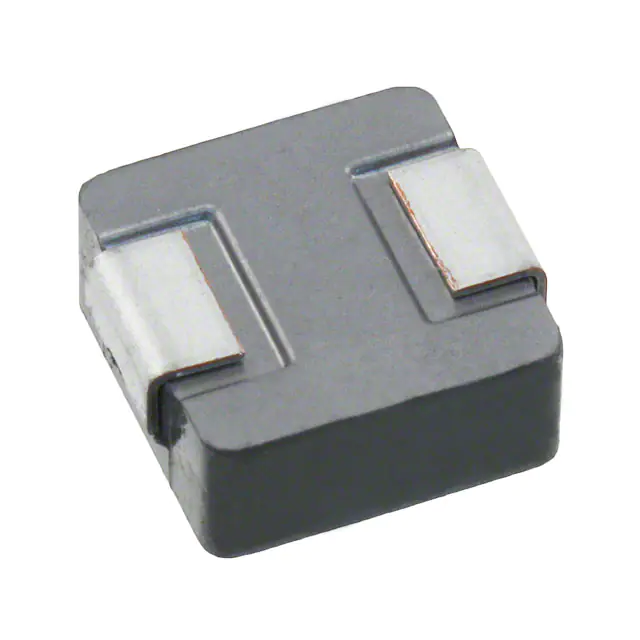

PCMC063T-1R0MNFIXED IND 1UH 11A 10 MOHM SMD Susumu |
2,889 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±20% | 11 A | 22A | Unshielded | 10mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R10MNFIXED IND 100NH 32.5A 1.7MOHM SM Susumu |
2,971 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 100 nH | ±20% | 32.5 A | 60A | Unshielded | 1.7mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R22MNFIXED IND 220NH 23A 2.5 MOHM SMD Susumu |
2,824 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 220 nH | ±20% | 23 A | 40A | Unshielded | 2.5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R33MNFIXED IND 330NH 20A 3.9 MOHM SMD Susumu |
4,209 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 330 nH | ±20% | 20 A | 30A | Unshielded | 3.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-R47MNFIXED IND 470NH 17.5A 4.2MOHM SM Susumu |
3,571 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 470 nH | ±20% | 17.5 A | 26A | Unshielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-1R2MNFIXED IND 1.2UH 10A 12 MOHM SMD Susumu |
4,229 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.2 µH | ±20% | 10 A | 20A | Unshielded | 12mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
PCMC063T-1R5MNFIXED IND 1.5UH 9A 15 MOHM SMD Susumu |
1,435 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.5 µH | ±20% | 9 A | 18A | Unshielded | 15mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|

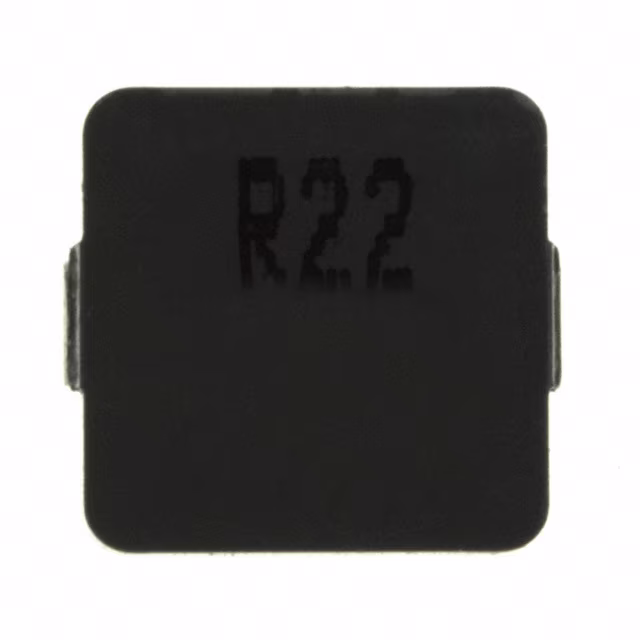

PCMC104T-R22MNFIXED IND 220NH 35A 1 MOHM SMD Susumu |
2,049 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 220 nH | ±20% | 35 A | 60A | Unshielded | 1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

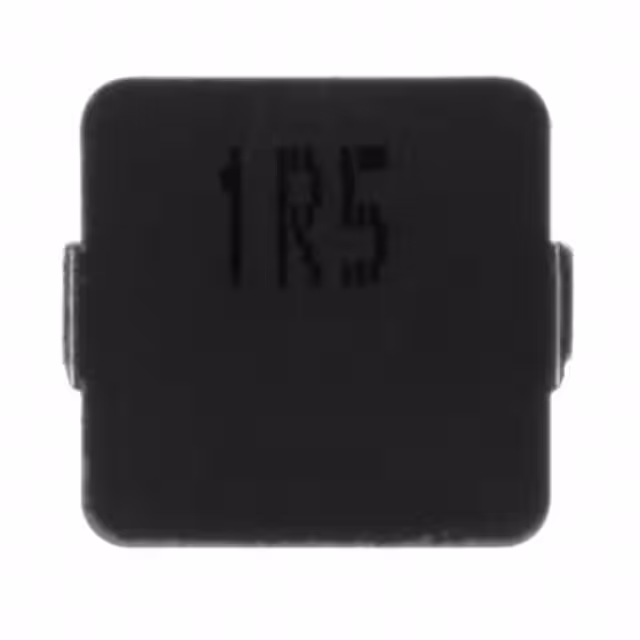

PCMC104T-1R5MNFIXED IND 1.5UH 16A 4.2 MOHM SMD Susumu |
1,986 |
|
规格书 |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.5 µH | ±20% | 16 A | 33A | Unshielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PCMB103T-8R2MSFIXED IND 8.2UH 5A 45 MOHM SMD Susumu |
2,783 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 5 A | 8.5A | Unshielded | 45mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.130" (3.30mm) |
