在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

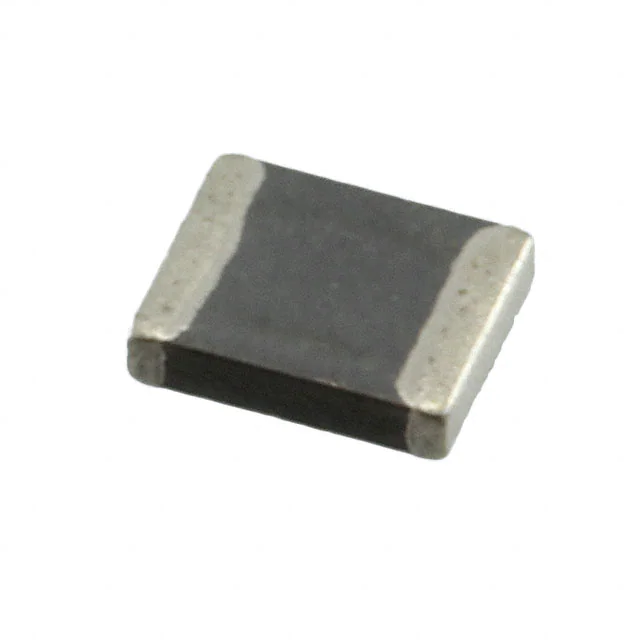

74479897122FIXED IND 220NH 3.5A 16 MOHM SMD Würth Elektronik |
2,621 |
|
规格书 |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 220 nH | ±20% | 3.5 A | 1.6A | Shielded | 16mOhm | 22 @ 1MHz | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.028" (0.70mm) |
|
|
74479897150FIXED IND 500NH 2.9A 25 MOHM SMD Würth Elektronik |
3,145 |
|
规格书 |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 500 nH | ±20% | 2.9 A | 1.1A | Shielded | 25mOhm | 25 @ 1MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.028" (0.70mm) |
|

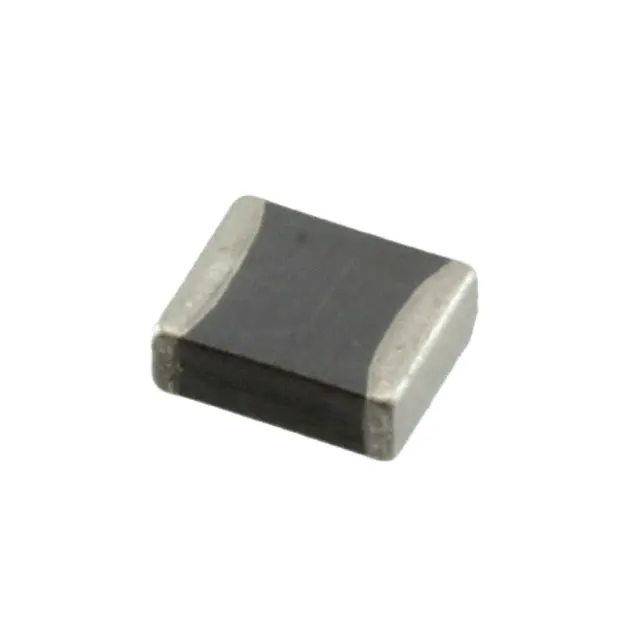

74479899111FIXED IND 110NH 4A 7 MOHM SMD Würth Elektronik |
2,863 |
|
规格书 |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 110 nH | ±20% | 4 A | 4A | Shielded | 7mOhm | 12 @ 1MHz | 300MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.047" (1.20mm) |
|
|
74479899130FIXED IND 300NH 3.9A 15 MOHM SMD Würth Elektronik |
3,880 |
|
规格书 |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 300 nH | ±20% | 3.9 A | 2.5A | Shielded | 15mOhm | 22 @ 1MHz | 115MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.047" (1.20mm) |
|
|
74479899150FIXED IND 500NH 3.8A 18 MOHM SMD Würth Elektronik |
1,811 |
|
规格书 |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 500 nH | ±20% | 3.8 A | 1.8A | Shielded | 18mOhm | 22 @ 1MHz | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.047" (1.20mm) |
|
|
74479899210FIXED IND 1UH 2.3A 50 MOHM SMD Würth Elektronik |
4,415 |
|
规格书 |
WE-PMI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 2.3 A | 2.5A | Shielded | 50mOhm | 18 @ 1MHz | 75MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.102" W (3.20mm x 2.60mm) | 0.047" (1.20mm) |
|

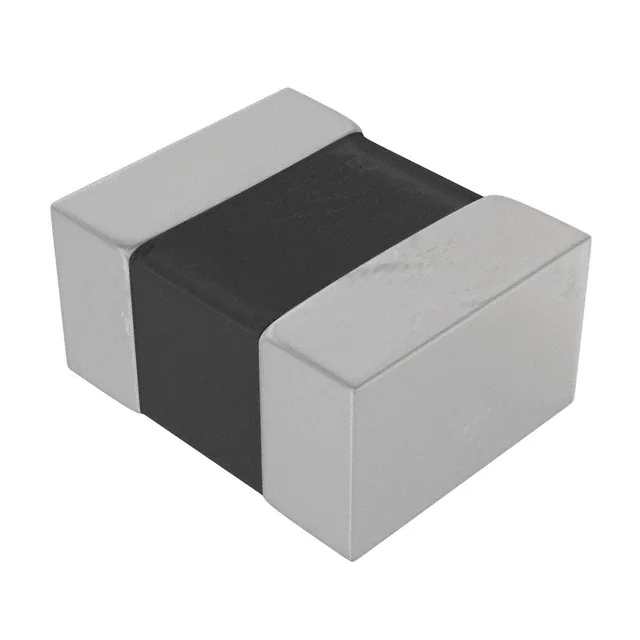

74479876222CFIXED IND 2.2UH 1.3A 210MOHM SMD Würth Elektronik |
4,357 |
|
规格书 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.3 A | 1.1A | Shielded | 210mOhm | 16 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479778310FIXED IND 10UH 1A 312.5 MOHM SMD Würth Elektronik |
3,508 |
|
规格书 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 10 µH | ±20% | 1 A | 150mA | Shielded | 312.5mOhm Max | 25 @ 1MHz | 32MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
74479776247AFIXED IND 4.7UH 1.2A 175MOHM SMD Würth Elektronik |
4,881 |
|
规格书 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 4.7 µH | ±20% | 1.2 A | 200mA | Shielded | 175mOhm Max | 20 @ 1MHz | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
.jpg)
|

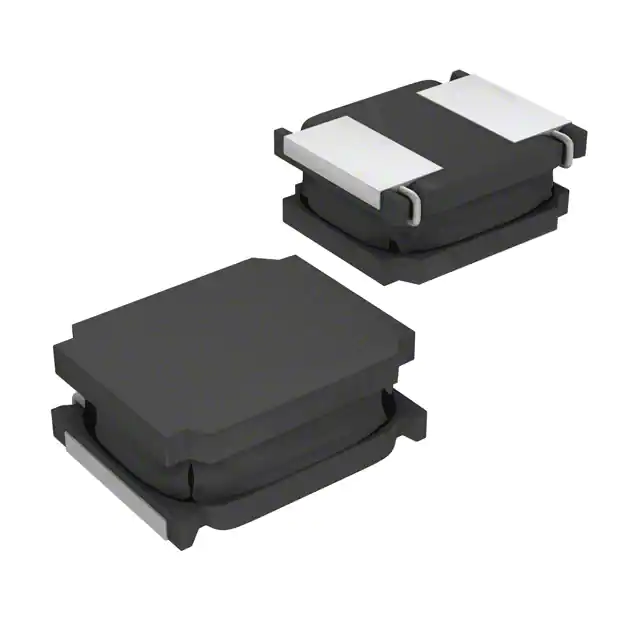

74479787215FIXED IND 1.5UH 1.6A 91 MOHM SMD Würth Elektronik |
4,884 |
|
规格书 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 µH | ±20% | 1.6 A | 800mA | Shielded | 91mOhm Max | 15 @ 1MHz | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
