在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74479775210AFIXED IND 1UH 1.3A 137.5MOHM SMD Würth Elektronik |
4,760 |
|
规格书 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | - | 1 µH | ±20% | 1.3 A | 950mA | Unshielded | 137.5mOhm Max | 18 @ 1MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|

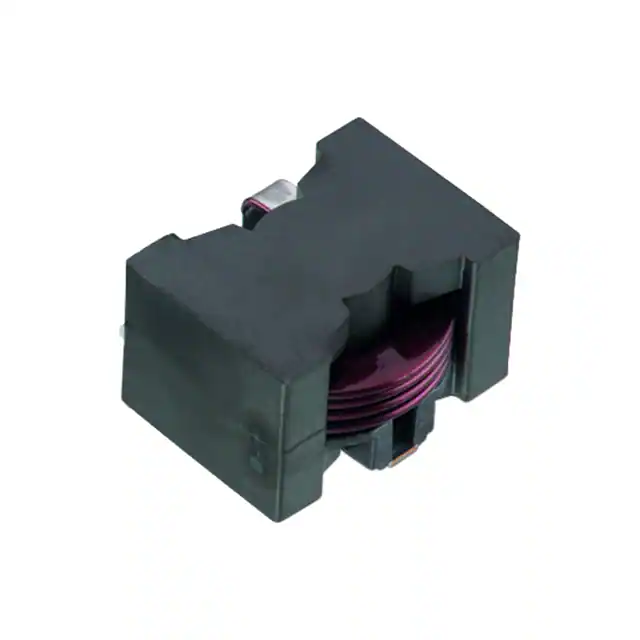

78436432068FIXED IND 6.8UH 38A 1.1 MOHM SMD Würth Elektronik |
3,623 |
|
规格书 |
WE-HCFA | Nonstandard | Tray | Obsolete | Wirewound | - | 6.8 µH | ±15% | 38 A | 24A | Shielded | 1.1mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
78436432033FIXED IND 3.3UH 38A 1.1 MOHM SMD Würth Elektronik |
4,292 |
|
规格书 |
WE-HCFA | Nonstandard | Tray | Obsolete | Wirewound | - | 3.3 µH | ±15% | 38 A | 50A | Shielded | 1.1mOhm Max | - | 34MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
78436432010FIXED IND 1UH 47A 0.6 MOHM SMD Würth Elektronik |
1,593 |
|
规格书 |
WE-HCFA | Nonstandard | Tray | Obsolete | Wirewound | - | 1 µH | ±25% | 47 A | 81A | Shielded | 0.6mOhm | - | 45MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
78436432047FIXED IND 4.7UH 38A 1.1 MOHM SMD Würth Elektronik |
2,087 |
|
规格书 |
WE-HCFA | Nonstandard | Tray | Obsolete | Wirewound | - | 4.7 µH | ±15% | 38 A | 33A | Shielded | 1.1mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
78436432015FIXED IND 1.5UH 47A 0.6 MOHM SMD Würth Elektronik |
4,659 |
|
规格书 |
WE-HCFA | Nonstandard | Tray | Obsolete | Wirewound | - | 1.5 µH | ±25% | 47 A | 53A | Shielded | 0.6mOhm | - | 34MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
74479776210FIXED IND 1UH 1.4A 112.5MOHM SMD Würth Elektronik |
3,738 |
|
规格书 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.4 A | - | Shielded | 112.5mOhm Max | 18 @ 1MHz | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479776147FIXED IND 470NH 1.6A 100MOHM SMD Würth Elektronik |
4,961 |
|
规格书 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 1.6 A | - | Shielded | 100mOhm Max | 10 @ 1MHz | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

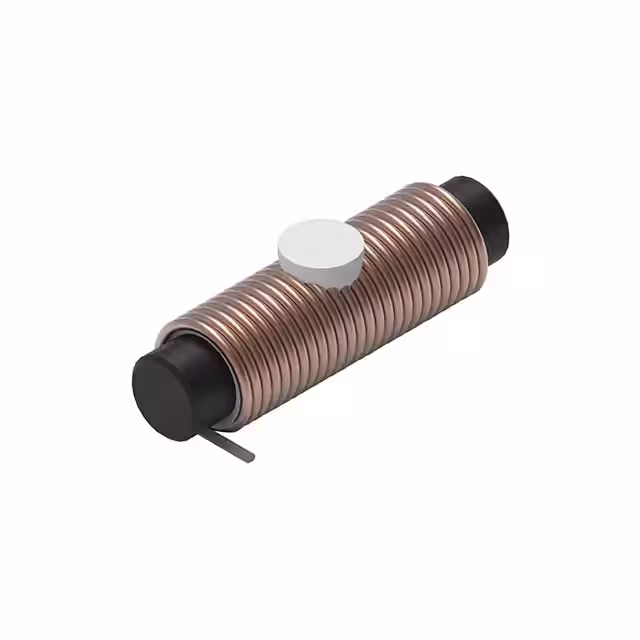

7847225100FIXED IND 10.4UH 3.25A 33MOHM SM Würth Elektronik |
3,944 |
|
规格书 |
WE-RCIS | Nonstandard | Tape & Reel (TR) | Active | - | - | 10.4 µH | ±20% | 3.25 A | 7.4A | Unshielded | 33mOhm | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.717" L x 0.236" W (18.20mm x 6.00mm) | - |
|

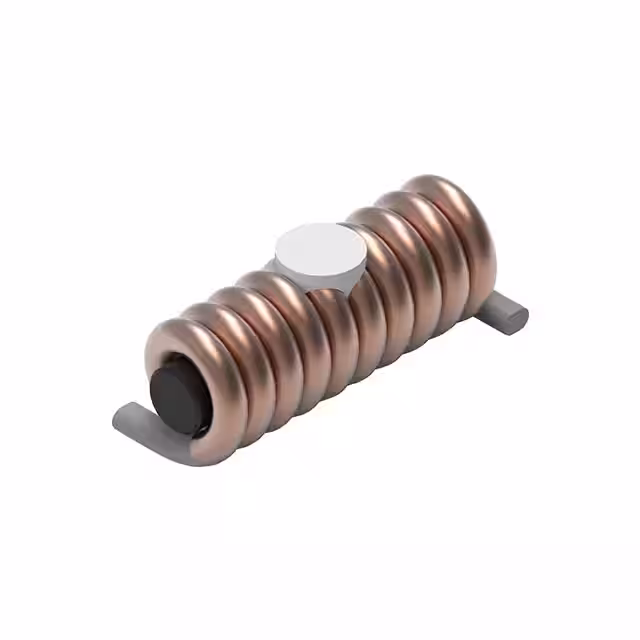

7847239015FIXED IND 1.41UH 17.5A 1.1 MOHM Würth Elektronik |
4,987 |
|
规格书 |
WE-RCIS | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.41 µH | ±20% | 17.5 A | 18.5A | Unshielded | 1.1mOhm | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.890" L x 0.346" W (22.60mm x 8.80mm) | - |
