在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

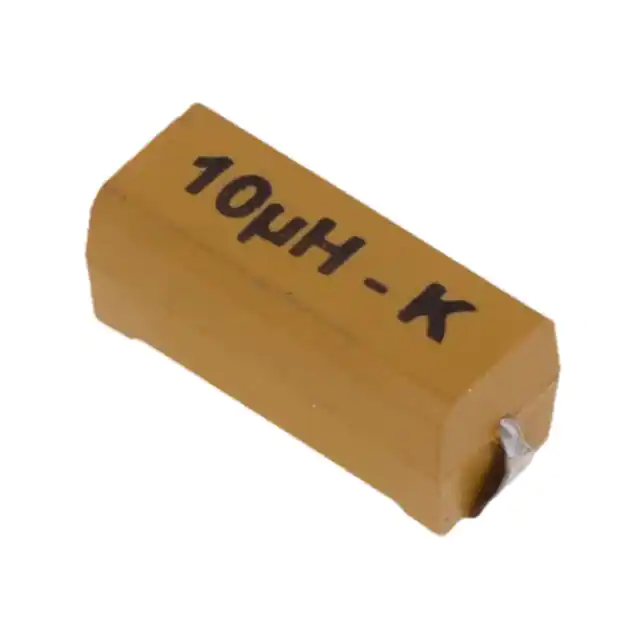

3615A100KFIXED IND 10UH 620MA 600MOHM SMD TE Connectivity Passive Product |
2,472 |
|
规格书 |
3615, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 10 µH | ±10% | 620 mA | - | Unshielded | 600mOhm Max | 35 @ 7.9MHz | 42MHz | - | -55°C ~ 100°C | 7.9 MHz | - | Surface Mount | - | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.209" (5.30mm) |
|
36502AR47JTDGFIXED IND 470NH 220MA 1.7OHM SMD TE Connectivity Passive Product |
116,990 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 470 nH | ±5% | 220 mA | - | Unshielded | 1.7Ohm Max | 33 @ 100MHz | 375MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36501JR10JTDGFIXED IND 100NH 400MA 580MOHM SM TE Connectivity Passive Product |
8,340 |
|
规格书 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 100 nH | ±5% | 400 mA | - | Unshielded | 580mOhm Max | 34 @ 250MHz | 1.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36501JR22JTDGFIXED IND 220NH 250MA 1.6OHM SMD TE Connectivity Passive Product |
5,016 |
|
规格书 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 220 nH | ±5% | 250 mA | - | Unshielded | 1.6Ohm Max | 25 @ 250MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36501E27NJFIXED IND 27NH 400MA 300MOHM SMD TE Connectivity Passive Product |
2,000 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 24 @ 250MHz | 2.48GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
36501E3N9JTDGFIXED IND 3.9NH 840MA 66MOHM SMD TE Connectivity Passive Product |
9,703 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.9 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 19 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

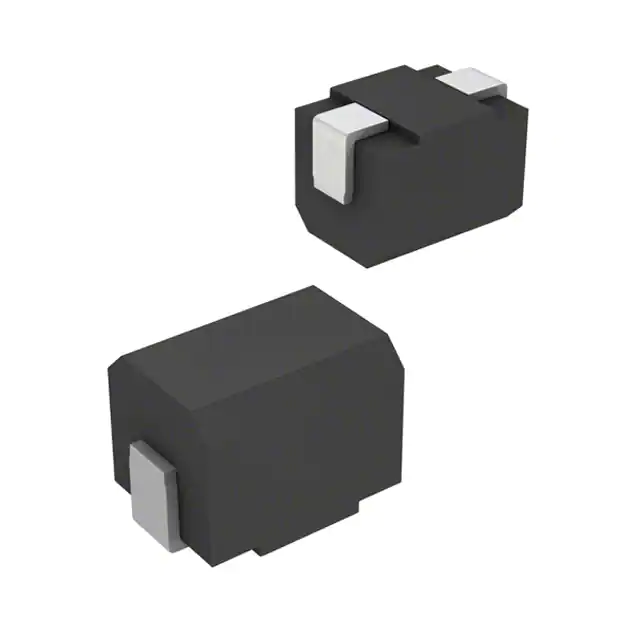

3613C1R0KFIXED IND 1UH 450MA 500 MOHM SMD TE Connectivity Passive Product |
1,970 |
|
规格书 |
3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 100MHz | - | -30°C ~ 100°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
36501J12NJTDGFIXED IND 12NH 700MA 130MOHM SMD TE Connectivity Passive Product |
19,362 |
|
规格书 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 12 nH | ±5% | 700 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502A10NJTDGFIXED IND 10NH 600MA 100MOHM SMD TE Connectivity Passive Product |
18,441 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±5% | 600 mA | - | Unshielded | 100mOhm Max | 60 @ 500MHz | 4.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502AR56JTDGFIXED IND 560NH 210MA 1.9OHM SMD TE Connectivity Passive Product |
14,016 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 560 nH | ±5% | 210 mA | - | Unshielded | 1.9Ohm Max | 23 @ 50MHz | 340MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
