在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36502AR11JTDGFIXED IND 110NH 400MA 480MOHM SM TE Connectivity Passive Product |
2,890 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 110 nH | ±5% | 400 mA | - | Unshielded | 480mOhm Max | 50 @ 250MHz | 1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502A2R2JTDGFIXED IND 2.2UH 160MA 2.7OHM SMD TE Connectivity Passive Product |
2,735 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.2 µH | ±5% | 160 mA | - | Unshielded | 2.7Ohm Max | 16 @ 7.9MHz | 60MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502A22NJTDGFIXED IND 22NH 500MA 220MOHM SMD TE Connectivity Passive Product |
2,616 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 22 nH | ±5% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

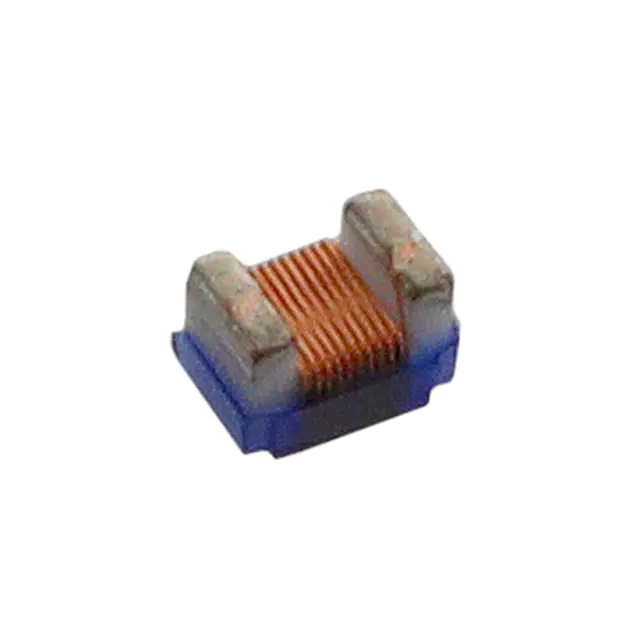

36502AR75JTDGFIXED IND 750NH 180MA 2.3OHM SMD TE Connectivity Passive Product |
2,589 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 750 nH | ±5% | 180 mA | - | Unshielded | 2.3Ohm Max | 23 @ 50MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502CR15JTDGFIXED IND 150NH 580MA 700MOHM SM TE Connectivity Passive Product |
2,475 |
|
规格书 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 150 nH | ±5% | 580 mA | - | Unshielded | 700mOhm Max | 45 @ 100MHz | 850MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36501J16NJTDGFIXED IND 16NH 700MA 110MOHM SMD TE Connectivity Passive Product |
2,458 |
|
规格书 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 16 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 35 @ 250MHz | 3.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502A33NJTDGFIXED IND 33NH 500MA 270MOHM SMD TE Connectivity Passive Product |
2,386 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±5% | 500 mA | - | Unshielded | 270mOhm Max | 60 @ 500MHz | 2.05GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502AR15JTDGFIXED IND 150NH 400MA 560MOHM SM TE Connectivity Passive Product |
2,242 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 150 nH | ±5% | 400 mA | - | Unshielded | 560mOhm Max | 50 @ 250MHz | 920MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36501J8N2JTDGFIXED IND 8.2NH 700MA 110MOHM SM TE Connectivity Passive Product |
2,238 |
|
规格书 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 8.2 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 27 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502CR33JTDGFIXED IND 330NH 450MA 1.05OHM SM TE Connectivity Passive Product |
2,180 |
|
规格书 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 330 nH | ±5% | 450 mA | - | Unshielded | 1.05Ohm Max | 45 @ 100MHz | 570MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
