在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MHQ Series.jpg)
|
MHQ0603P4N3CT000FIXED IND 4.3NH 400MA 350MOHM SM |
6,647 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.3 nH | ±0.2nH | 400 mA | - | Unshielded | 350mOhm Max | 16 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
MCQ1V2012-R470-RFIXED IND 470NH 200MA 500MOHM SM |
6,589 |
|
规格书 |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±10% | 200 mA | - | Unshielded | 500mOhm Max | 25 @ 25MHz | 125MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
MLG0603P2N4ST000FIXED IND 2.4NH 500MA 200MOHM SM |
6,484 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.4 nH | ±0.3nH | 500 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 7.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
SDCL1005C3N3STDFFIXED IND 3.3NH 300MA 200MOHM SM |
6,470 |
|
规格书 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 300 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MHQ0603P2N7BT000FIXED IND 2.7NH 500MA 250MOHM SM |
6,462 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.7 nH | ±0.1nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
.jpg)
|
LQG15HZR10J02DFIXED IND 100NH 200MA 1.25OHM SM |
6,430 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 100 nH | ±5% | 200 mA | - | Unshielded | 1.25Ohm Max | 8 @ 100MHz | 600MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG0603P8N2JTD25FIXED IND 8.2NH 250MA 850MOHM SM |
6,416 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 8.2 nH | ±5% | 250 mA | - | Unshielded | 850mOhm Max | 14 @ 500MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LCCI0402J47NGTARFIXED IND 47NH 200MA 1.1 OHM SMD |
6,403 |
|
规格书 |
LCCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 47 nH | ±5% | 200 mA | - | Unshielded | 1.1Ohm Max | 8 @ 100MHz | 1.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MCQ1V2012-R047-RFIXED IND 47NH 300MA 150MOHM SMD |
6,340 |
|
规格书 |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 47 nH | ±10% | 300 mA | - | Unshielded | 150mOhm Max | 25 @ 50MHz | 320MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
LCCI0402J27NGTARFIXED IND 27NH 300MA 800MOHM SMD |
6,250 |
|
规格书 |
LCCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±5% | 300 mA | - | Unshielded | 800mOhm Max | 8 @ 100MHz | 1.7GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
7447840018FIXED IND 1.8NH 300MA 100MOHM SM |
6,243 |
|
规格书 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
SDCL1005C10NHTDFFIXED IND 10NH 300MA 400MOHM SMD |
6,195 |
|
规格书 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±3% | 300 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
ATFC-0402-18NG-TFIXED IND 18NH 100MA 2.15OHM SMD |
6,185 |
|
规格书 |
ATFC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 18 nH | ±2% | 100 mA | - | Unshielded | 2.15Ohm Max | 13 @ 500MHz | 3.1GHz | - | -45°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|

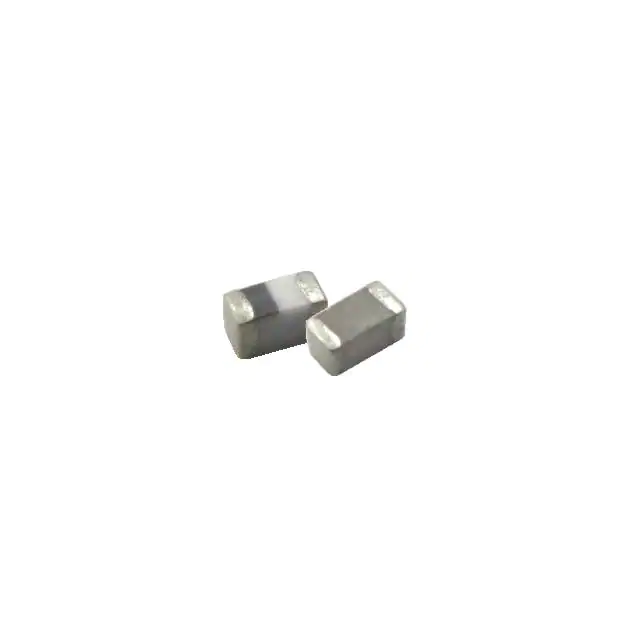

BSCH001005053N3SCPFIXED IND 3.3NH 400MA 150MOHM SM |
6,165 |
|
规格书 |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 400 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
7847804470WE-MCI MULTILAYER CERAMIC SMD IN |
6,152 |
|
规格书 |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 47 nH | ±5% | 200 mA | - | Unshielded | 1.15Ohm Max | 8 @ 100MHz | 1GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
SDCL1005C33NHTDFFIXED IND 33NH 200MA 800MOHM SMD |
6,150 |
|
规格书 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±3% | 200 mA | - | Unshielded | 800mOhm Max | 8 @ 100MHz | 1.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
MCL1608V2-470-RFIXED IND 47NH 300MA 700MOHM SMD |
6,143 |
|
规格书 |
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 47 nH | ±5% | 300 mA | - | Unshielded | 700mOhm Max | 12 @ 100MHz | 1.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MLG0603S16NJT000FIXED IND 16NH 180MA 1.1 OHM SMD |
6,043 |
|
规格书 |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 16 nH | ±5% | 180 mA | - | Unshielded | 1.1Ohm Max | 6 @ 100MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|

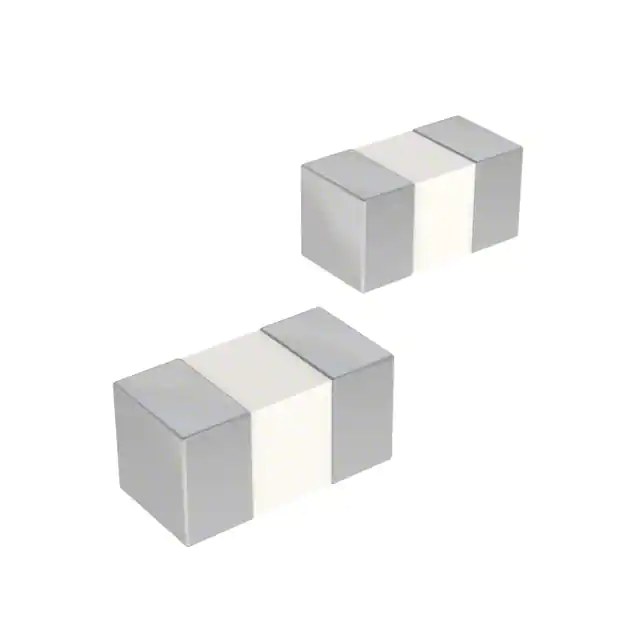

CI160808-3N9DFIXED IND 3.9NH 300MA 250MOHM SM |
6,001 |
|
规格书 |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 250mOhm Max | 10 @ 100MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MLG1005S0N4CT000FIXED IND 0.4NH 1A 100 MOHM SMD |
5,897 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.4 nH | ±0.2nH | 1 A | - | Unshielded | 100mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
