在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

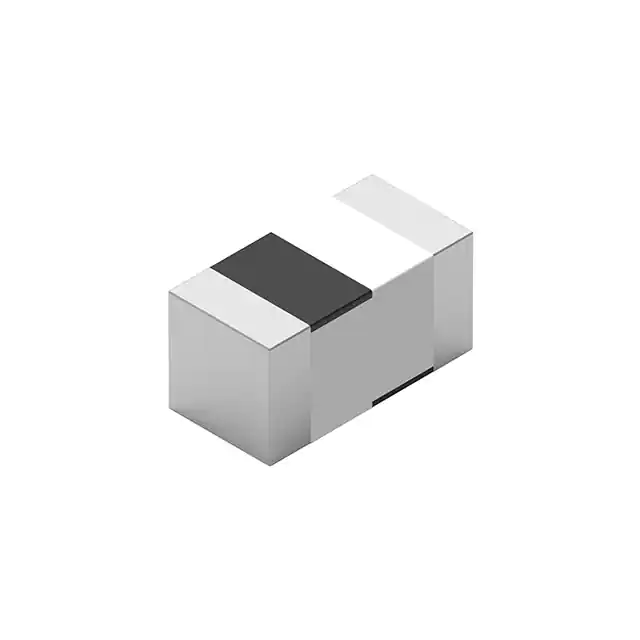

7847803820WE-MCI MULTILAYER CERAMIC SMD IN |
4,504 |
|
规格书 |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.2 nH | ±5% | 300 mA | - | Unshielded | 330mOhm Max | 8 @ 100MHz | 3.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
7847803330WE-MCI MULTILAYER CERAMIC SMD IN |
4,496 |
|
规格书 |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 300 mA | - | Unshielded | 190mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

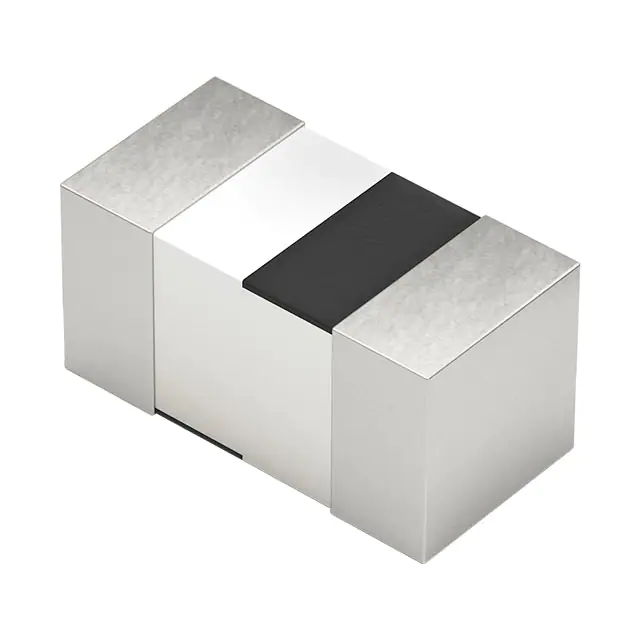

7447840112FIXED IND 12NH 300MA 410MOHM SMD |
4,487 |
|
规格书 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 12 nH | ±5% | 300 mA | - | Unshielded | 410mOhm Max | 8 @ 100MHz | 2.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
7847806180WE-MCI MULTILAYER CERAMIC SMD IN |
4,455 |
|
规格书 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 18 nH | ±5% | 300 mA | - | Unshielded | 350mOhm Max | 12 @ 100MHz | 2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQG15WZ1N0C02DFIXED IND 1NH 1.2A 0.03OHM SMD |
4,400 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1 nH | ±0.2nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 15GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
.jpg)
|

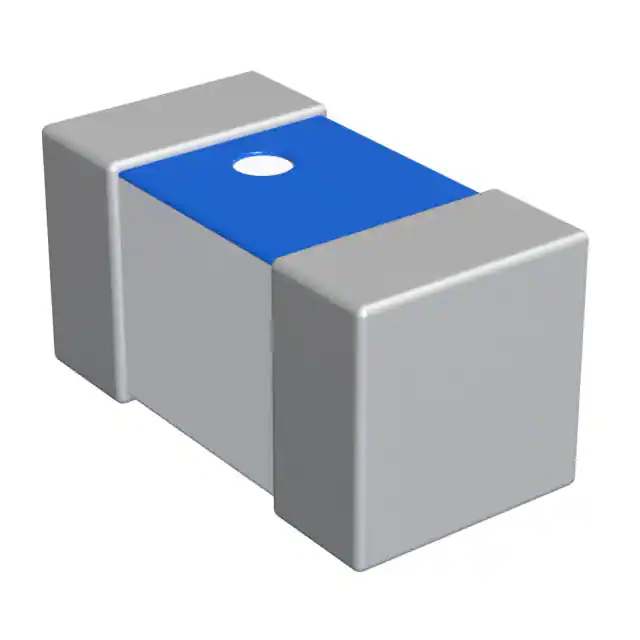

LQP03TG6N8J02DFIXED IND 6.8NH 200MA 1.15OHM SM |
4,367 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 6.8 nH | ±5% | 200 mA | - | Unshielded | 1.15Ohm Max | 12 @ 500MHz | 5.4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
7847806820WE-MCI MULTILAYER CERAMIC SMD IN |
4,330 |
|
规格书 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 82 nH | ±5% | 300 mA | - | Unshielded | 950mOhm Max | 12 @ 100MHz | 600MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQG15HS6N2C02DFIXED IND 6.2NH 600MA 0.2OHM SMD |
4,220 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 6.2 nH | ±0.2nH | 600 mA | - | Unshielded | 200mOhm Max | - | 4.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
7847804270WE-MCI MULTILAYER CERAMIC SMD IN |
4,204 |
|
规格书 |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±5% | 300 mA | - | Unshielded | 670mOhm Max | 8 @ 100MHz | 1.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
LQP02TN1N8B02DFIXED IND 1.8NH 200MA 700MOHM SM |
4,138 |
|
规格书 |
LQP02 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1.8 nH | ±0.1nH | 200 mA | - | Unshielded | 700mOhm Max | 8 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.23mm) |
|
LCCI0603J18NGTARFIXED IND 18NH 600MA 450MOHM SMD |
4,089 |
|
规格书 |
LCCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 18 nH | ±5% | 600 mA | - | Unshielded | 450mOhm Max | 12 @ 100MHz | 2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MCQ1V2012-2R7-RFIXED IND 2.7UH 50MA 600MOHM SMD |
4,042 |
|
规格书 |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.7 µH | ±10% | 50 mA | - | Unshielded | 600mOhm Max | 35 @ 10MHz | 45MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
7847803560WE-MCI MULTILAYER CERAMIC SMD IN |
4,021 |
|
规格书 |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 300 mA | - | Unshielded | 260mOhm Max | 8 @ 100MHz | 5.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MCQ1V3216-R100-RFIXED IND 100NH 250MA 250MOHM SM |
4,000 |
|
规格书 |
MCQ1V3216 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±10% | 250 mA | - | Unshielded | 250mOhm Max | 25 @ 25MHz | 235MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) |
|
|
7847806390WE-MCI MULTILAYER CERAMIC SMD IN |
4,000 |
|
规格书 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 39 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 12 @ 100MHz | 1.1GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
7447860115GWE-MK MULTILAYER CERAMIC SMT IND |
3,999 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±2% | 300 mA | - | Unshielded | 320mOhm Max | 12 @ 100MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MCL2012V1-R560-RFIXED IND 560NH 200MA 360MOHM SM |
3,995 |
|
规格书 |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 560 nH | ±20% | 200 mA | - | Unshielded | 360mOhm Max | - | 115MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCQ1V1608-R100-RFIXED IND 100NH 50MA 250MOHM SMD |
3,990 |
|
规格书 |
MCQ1V1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±10% | 50 mA | - | Unshielded | 250mOhm Max | 20 @ 25MHz | 240MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
SDCL1608C33NJTDFFIXED IND 33NH 300MA 700MOHM SMD |
3,987 |
|
规格书 |
SDCL-D | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±5% | 300 mA | - | Unshielded | 700mOhm Max | 12 @ 100MHz | 1.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MCL1608V1-R056-RFIXED IND 56NH 150MA 120MOHM SMD |
3,984 |
|
规格书 |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 56 nH | ±20% | 150 mA | - | Unshielded | 120mOhm Max | - | 260MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
