在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MLF1608DR68MTA00FIXED IND 680NH 70MA 1.25OHM SMD |
1,590 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 680 nH | ±20% | 70 mA | - | Shielded | 1.25Ohm Max | 15 @ 25MHz | 150MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQP03TQ1N2W02DFIXED IND 1.2NH 800MA 80MOHM SMD |
1,585 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Not For New Designs | Thick Film | Non-Magnetic | 1.2 nH | ±0.05nH | 800 mA | - | Unshielded | 80mOhm Max | 17 @ 500MHz | 17GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.32mm) |
|
AIMC-0402-47NJ-TFIXED IND 47NH 200MA 1.5 OHM SMD |
1,483 |
|
规格书 |
AIMC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 47 nH | ±5% | 200 mA | - | Unshielded | 1.5Ohm Max | 8 @ 100MHz | 1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
ATFC-0402HQ-1N5B-TFIXED IND 1.5NH 730MA 140MOHM SM |
1,241 |
|
规格书 |
ATFC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 1.5 nH | ±0.1nH | 730 mA | - | Unshielded | 140mOhm Max | 16 @ 500MHz | 7GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|

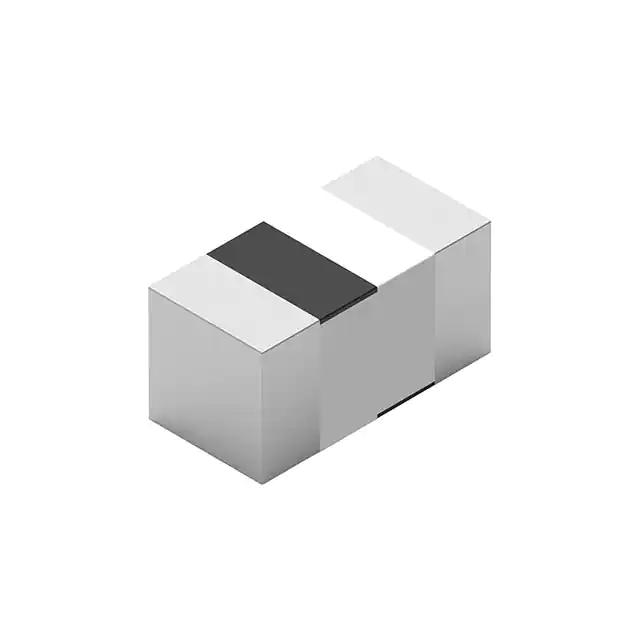

7847806121WE-MCI MULTILAYER CERAMIC SMD IN |
1,231 |
|
规格书 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 120 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 8 @ 50MHz | 500MHz | AEC-Q200 | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQG15HZ1N2C02DFIXED IND 1.2NH 1A 0.07OHM SMD |
1,226 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.2 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | - | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

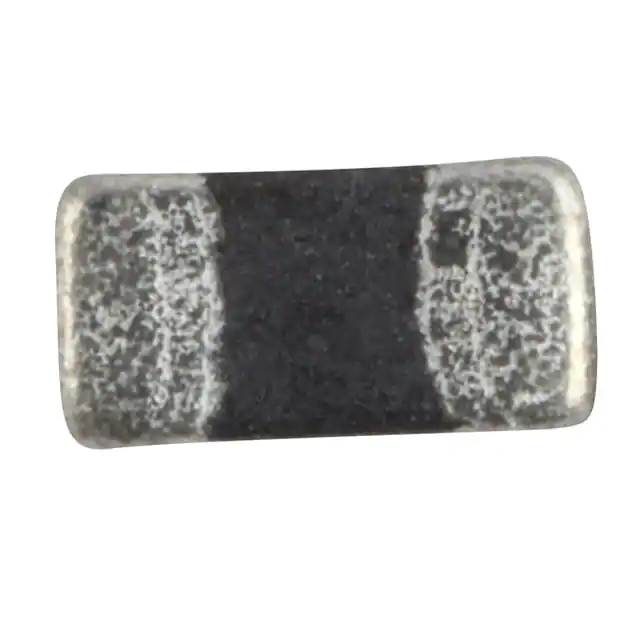

MCL1608V1-R10-RFIXED IND 100NH 150MA 150MOHM SM |
1,201 |
|
规格书 |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±20% | 150 mA | - | Unshielded | 150mOhm Max | - | 240MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQG15HN1N6C02DFIXED IND 1.6NH 1A 0.08OHM SMD |
1,130 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1.6 nH | ±0.2nH | 1 A | - | Unshielded | 80mOhm Max | - | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
Series.jpg)
|

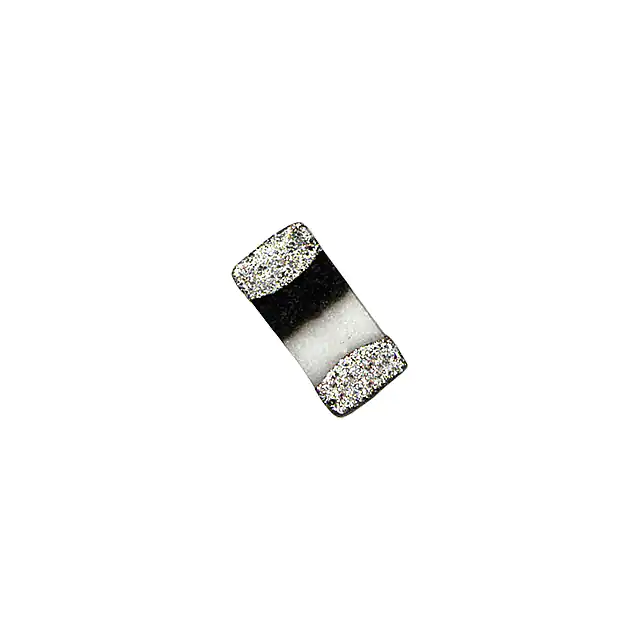

PE-0402CL1N8STTFIXED IND 1.8NH 300MA 100MOHM SM |
1,117 |
|
规格书 |
0402CL | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
7847806221WE-MCI MULTILAYER CERAMIC SMD IN |
1,115 |
|
规格书 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±5% | 300 mA | - | Unshielded | 1.5Ohm Max | 8 @ 50MHz | 400MHz | AEC-Q200 | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQP03TQ0N8W02DFIXED IND 0.8NH 1A 50 MOHM SMD |
1,110 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Not For New Designs | Thick Film | Non-Magnetic | 0.8 nH | ±0.05nH | 1 A | - | Unshielded | 50mOhm Max | 17 @ 500MHz | 18GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.32mm) |
|
MLG0603P30NJT000FIXED IND 30NH 130MA 2.2 OHM SMD |
1,104 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 30 nH | ±5% | 130 mA | - | Unshielded | 2.2Ohm Max | 10 @ 300MHz | 1.8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
-2,00mm.jpg)
|
LB2518T221MFIXED IND 220UH 40MA 4.5 OHM SMD |
1,057 |
|
规格书 |
LB | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 40 mA | - | Unshielded | 4.5Ohm | - | 5.5MHz | - | -25°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
PE-0805CD821JTTFIXED IND 783NH 180MA 2.35OHM SM |
10,000 |
|
规格书 |
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 783 nH | ±5% | 180 mA | - | Unshielded | 2.35Ohm Max | 23 @ 50MHz | 215MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
.jpg)
|
LQP02HQ51NH02EFIXED IND 51NH 100MA SMD |
15,000 |
|
规格书 |
LQP03 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 51 nH | ±3% | 100 mA | - | Unshielded | - | - | - | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
MLG0603S51NJTD25FIXED IND 51NH 50MA 2.8 OHM SMD |
14,850 |
|
规格书 |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 51 nH | ±5% | 50 mA | - | Unshielded | 2.8Ohm Max | 5 @ 100MHz | 1.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603S30NJTD25FIXED IND 30NH 100MA 1.6 OHM SMD |
14,770 |
|
规格书 |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 30 nH | ±5% | 100 mA | - | Unshielded | 1.6Ohm Max | 6 @ 100MHz | 1.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
 MHQ Series.jpg)
|
MHQ0603P1N2BT000FIXED IND 1.2NH 1A 80 MOHM SMD |
14,712 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.2 nH | ±0.1nH | 1 A | - | Unshielded | 80mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MLG0603S22NJT000FIXED IND 22NH 150MA 1.2 OHM SMD |
14,510 |
|
规格书 |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 22 nH | ±5% | 150 mA | - | Unshielded | 1.2Ohm Max | 6 @ 100MHz | 2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603S13NJTD25FIXED IND 13NH 180MA 900MOHM SMD |
13,670 |
|
规格书 |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 13 nH | ±5% | 180 mA | - | Unshielded | 900mOhm Max | 6 @ 100MHz | 2.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
