在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIML-0805-R82K-TFIXED IND 820NH 150MA 1OHM SMD |
3,866 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±10% | 150 mA | - | Shielded | 1Ohm | 25 @ 25MHz | 100MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
 MHQ Series.jpg)
|
MHQ1005P24NJT000FIXED IND 24NH 230MA 1.2 OHM SMD |
3,834 |
|
规格书 |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 24 nH | ±5% | 230 mA | - | Unshielded | 1.2Ohm Max | 20 @ 250MHz | 2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
7447860222GWE-MK MULTILAYER CERAMIC SMT IND |
3,445 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±2% | 300 mA | - | Unshielded | 1.5Ohm Max | 8 @ 50MHz | 400MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AIML-0805-R33K-TFIXED IND 330NH 250MA 0.55OHM SM |
3,000 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±10% | 250 mA | - | Shielded | 550mOhm | 20 @ 25MHz | 145MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

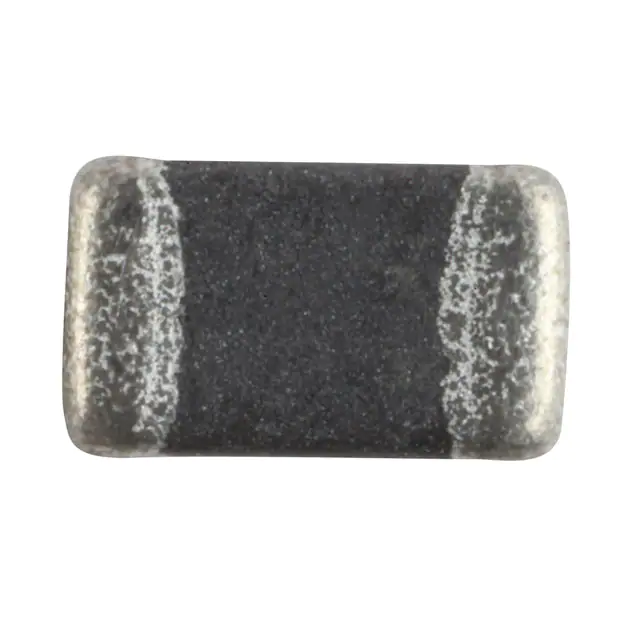

MCL2012V1-4R7-RFIXED IND 4.7UH 120MA 400MOHM SM |
2,935 |
|
规格书 |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 120 mA | - | Unshielded | 400mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
AIML-0805-3R9K-TFIXED IND 3.9UH 30MA 0.9OHM SMD |
2,730 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.9 µH | ±10% | 30 mA | - | Shielded | 900mOhm | 45 @ 10MHz | 38MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
MLG0603P1N2ST000FIXED IND 1.2NH 800MA 80MOHM SMD |
2,695 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.2 nH | ±0.3nH | 800 mA | - | Unshielded | 80mOhm Max | 14 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
MLG1005S2N0STD25FIXED IND 2NH 900MA 150 MOHM SMD |
2,610 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2 nH | ±0.3nH | 900 mA | - | Unshielded | 150mOhm Max | 7 @ 100MHz | 7.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
AIML-0805-6R8K-TFIXED IND 6.8UH 15MA 1OHM SMD |
2,564 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±10% | 15 mA | - | Shielded | 1Ohm | 50 @ 4MHz | 29MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLG1005SR12JTD25FIXED IND 120NH 150MA 2.2OHM SMD |
2,490 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 120 nH | ±5% | 150 mA | - | Unshielded | 2.2Ohm Max | 8 @ 100MHz | 600MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
AIML-0805-2R2K-TFIXED IND 2.2UH 30MA 0.65OHM SMD |
1,466 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 30 mA | - | Shielded | 650mOhm | 45 @ 10MHz | 70MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
MLG0402Q2N5ST000FIXED IND 2.5NH 200MA 800MOHM SM |
42,014 |
|
规格书 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.5 nH | ±0.3nH | 200 mA | - | Unshielded | 800mOhm Max | 2 @ 100MHz | 7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
LQP03HQ3N9C02DFIXED IND 3.9NH 500MA 170MOHM SM |
38,955 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.9 nH | ±0.2nH | 500 mA | - | Unshielded | 170mOhm Max | 20 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ1N1C02DFIXED IND 1.1NH 1.1A 40MOHM SMD |
29,083 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1.1 nH | ±0.2nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 14GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ5N6J02DFIXED IND 5.6NH 400MA 250MOHM SM |
20,662 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 5.6 nH | ±5% | 400 mA | - | Unshielded | 250mOhm Max | 20 @ 500MHz | 5.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ1N8C02DFIXED IND 1.8NH 800MA 80MOHM SMD |
16,823 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1.8 nH | ±0.2nH | 800 mA | - | Unshielded | 80mOhm Max | 20 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
MHQ0603P1N5BTD25FIXED IND 1.5NH 800MA 100MOHM SM |
16,403 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.5 nH | ±0.1nH | 800 mA | - | Unshielded | 100mOhm Max | 16 @ 500MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
HQ0603Q2N6BT01FIXED IND 2.6NH 600MA 120MOHM SM |
14,825 |
|
规格书 |
HQ-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.6 nH | ±0.1nH | 600 mA | - | Unshielded | 120mOhm Max | 20 @ 500MHz | 9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
HQ0603Q3N9BT01FIXED IND 3.9NH 500MA 170MOHM SM |
14,653 |
|
规格书 |
HQ-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.9 nH | ±0.1nH | 500 mA | - | Unshielded | 170mOhm Max | 20 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ3N1C02DFIXED IND 3.1NH 500MA 170MOHM SM |
14,433 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.1 nH | ±0.2nH | 500 mA | - | Unshielded | 170mOhm Max | 20 @ 500MHz | 7.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
