在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

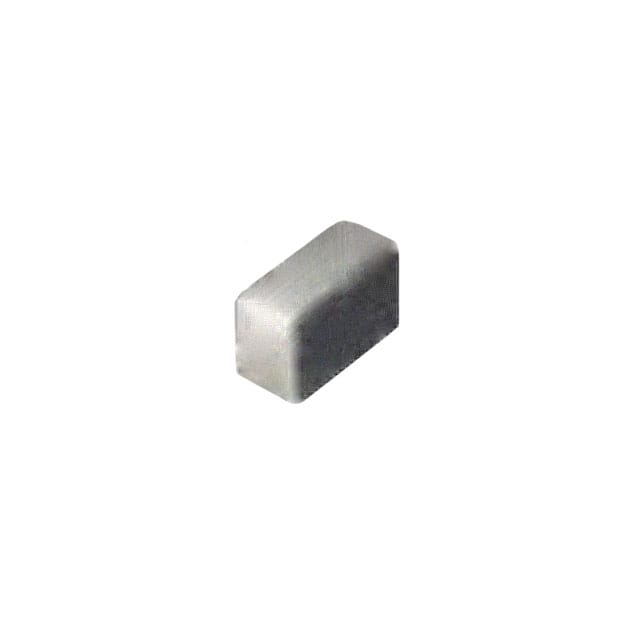

BSPQ000603047N5H00FIXED IND 7.5NH 400MA 300MOHM SM |
8,426 |
|
规格书 |
BSPQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Ceramic | 7.5 nH | ±3% | 400 mA | - | Unshielded | 300mOhm Max | 20 @ 500MHz | 4.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.43mm) |
|
MLG1005SR16JTD25FIXED IND 160NH 150MA 3.8OHM SMD |
8,209 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 160 nH | ±5% | 150 mA | - | Unshielded | 3.8Ohm Max | 8 @ 100MHz | 500MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLG0603P68NJTD25FIXED IND 68NH 100MA 3.5 OHM SMD |
8,106 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 68 nH | ±5% | 100 mA | - | Unshielded | 3.5Ohm Max | 9 @ 300MHz | 1.2GHz | AEC-Q200 | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
 MHQ Series.jpg)
|
MHQ0603P39NJT000FIXED IND 39NH 160MA 3 OHM SMD |
8,052 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 39 nH | ±5% | 160 mA | - | Unshielded | 3Ohm Max | 14 @ 300MHz | 1.6GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MLG1005S2N4CT000FIXED IND 2.4NH 800MA 150MOHM SM |
7,858 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.4 nH | ±0.2nH | 800 mA | - | Unshielded | 150mOhm Max | 7 @ 100MHz | 7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MHQ1005P30NJT000FIXED IND 30NH 220MA 1.3 OHM SMD |
7,823 |
|
规格书 |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 30 nH | ±5% | 220 mA | - | Unshielded | 1.3Ohm Max | 20 @ 250MHz | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.jpg)
|
LQG15WZ68NJ02DFIXED IND 68NH 160MA 2OHM SMD |
7,537 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 68 nH | ±5% | 160 mA | - | Unshielded | 2Ohm Max | 22 @ 250MHz | 1.1GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG0603P24NJT000FIXED IND 24NH 140MA 2.1 OHM SMD |
7,272 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 24 nH | ±5% | 140 mA | - | Unshielded | 2.1Ohm Max | 14 @ 500MHz | 2.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|

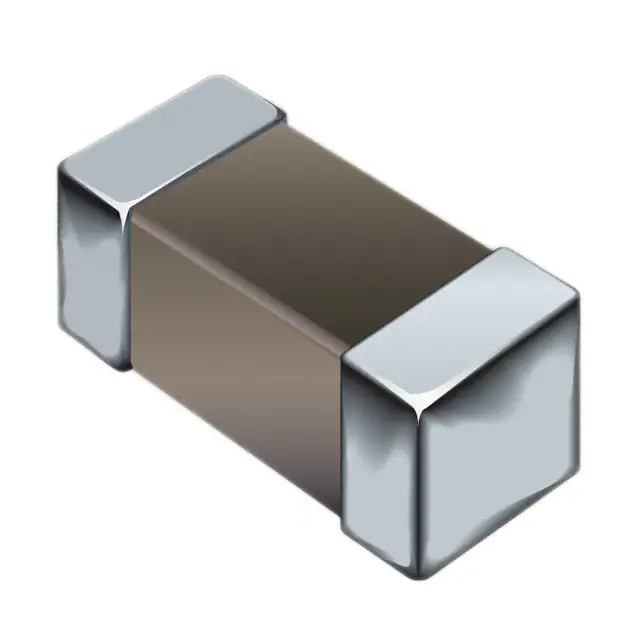

CS160808-R22KFIXED IND 220NH 200MA 400MOHM SM |
7,160 |
|
规格书 |
CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | 200 mA | - | Shielded | 400mOhm Max | 30 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1005S1N6CT000FIXED IND 1.6NH 1A 120 MOHM SMD |
6,854 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.6 nH | ±0.2nH | 1 A | - | Unshielded | 120mOhm Max | 7 @ 100MHz | 7.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MHQ0603P4N7ST000FIXED IND 4.7NH 350MA 400MOHM SM |
5,947 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.7 nH | ±0.3nH | 350 mA | - | Unshielded | 400mOhm Max | 16 @ 500MHz | 5.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P10NJT000FIXED IND 10NH 240MA 1.2 OHM SMD |
5,833 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 10 nH | ±5% | 240 mA | - | Unshielded | 1.2Ohm Max | 16 @ 500MHz | 3.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P6N8JT000FIXED IND 6.8NH 300MA 700MOHM SM |
5,784 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 6.8 nH | ±5% | 300 mA | - | Unshielded | 700mOhm Max | 16 @ 500MHz | 4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MLG0603P0N9CT000FIXED IND 0.9NH 1A 60 MOHM SMD |
5,485 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 0.9 nH | ±0.2nH | 1 A | - | Unshielded | 60mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|
MLF1608DR22KTD25FIXED IND 220NH 150MA 550MOHM SM |
5,376 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | 150 mA | - | Shielded | 550mOhm Max | 15 @ 25MHz | 290MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MHQ1005P3N3CT000FIXED IND 3.3NH 900MA 80MOHM SMD |
4,982 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.3 nH | ±0.2nH | 900 mA | - | Unshielded | 80mOhm Max | 23 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
AIML-0805-1R8K-TFIXED IND 1.8UH 50MA 0.6OHM SMD |
4,635 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.8 µH | ±10% | 50 mA | - | Shielded | 600mOhm | 45 @ 10MHz | 75MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
AIMC-0805-1N5S-TFIXED IND 1.5NH 600MA 100MOHM SM |
4,606 |
|
规格书 |
AIMC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 10 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MHQ1005P1N6CT000FIXED IND 1.6NH 1A 40 MOHM SMD |
4,423 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.6 nH | ±0.2nH | 1 A | - | Unshielded | 40mOhm Max | 23 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
AIML-0805-R15K-TFIXED IND 150NH 250MA 0.4OHM SMD |
4,035 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±10% | 250 mA | - | Shielded | 400mOhm | 20 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
