在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AS72NG0ZDFIXED IND 72NH 400MA 490MOHM SMD |
3,123 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 72 nH | ±2% | 400 mA | - | Unshielded | 490mOhm Max | 34 @ 150MHz | 1.7GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
7447880068WE-MK MULTILAYER CERAMIC SMT IND |
3,099 |
|
规格书 |
WE-MK | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 6.8 nH | ±5% | 300 mA | - | Unshielded | 250mOhm Max | 15 @ 100MHz | 2.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
.jpg)
|
744786012AFIXED IND 1.2NH 600MA 50MOHM SMD |
3,080 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.2 nH | ±0.3nH | 600 mA | - | Unshielded | 50mOhm Max | 8 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MHQ0603P4N7HTD25FIXED IND 4.7NH 350MA 400MOHM SM |
3,008 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.7 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 16 @ 500MHz | 5.5GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
ILSB0805ERR10KFIXED IND 100NH 250MA 300MOHM SM |
2,979 |
|
规格书 |
ILSB-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±10% | 250 mA | - | Shielded | 300mOhm Max | 20 @ 25MHz | 279MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
7447880222WE-MK MULTILAYER CERAMIC SMT IND |
2,855 |
|
规格书 |
WE-MK | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 12 @ 50MHz | 350MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
BWCS00292821R15G00FIXED IND 150NH 580MA 700MOHM SM |
2,659 |
|
规格书 |
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±2% | 580 mA | - | Unshielded | 700mOhm Max | 45 @ 100MHz | 850MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1411 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
SDER041B-220MSFIXED IND 22UH 950MA 492MOHM SMD |
2,563 |
|
规格书 |
SDER041B | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 950 mA | 630mA | Shielded | 492mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
744786247AFIXED IND 470NH 150MA 3.6OHM SMD |
2,415 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 470 nH | ±5% | 150 mA | - | Unshielded | 3.6Ohm Max | 8 @ 100MHz | 250MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

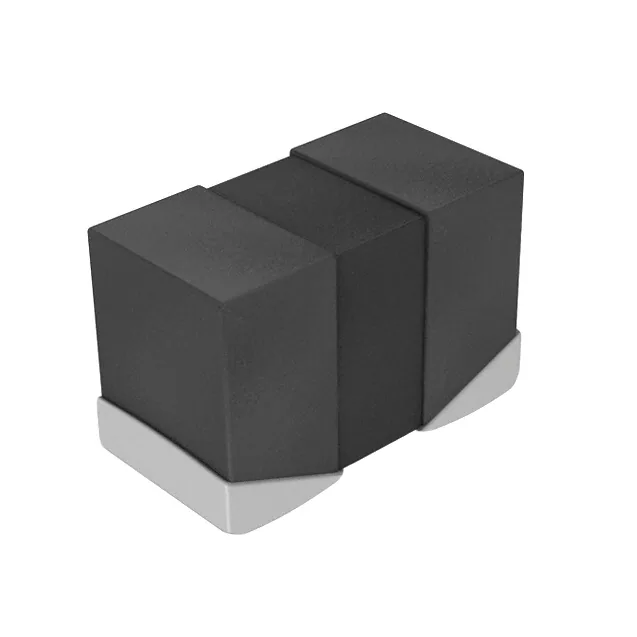

MBMK2520T1R0MFIXED IND 1UH 1.85A 72 MOHM SMD |
2,369 |
|
规格书 |
MCOIL™, MB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 1.85 A | 2.35A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQW15AN8N2J8ZDFIXED IND 8.2NH 1.5A 0.069OHM SM |
2,342 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.2 nH | ±5% | 1.5 A | - | Unshielded | 69mOhm Max | 32 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
BWCS002928212R2G00FIXED IND 2.2UH 280MA 2.8OHM SMD |
2,335 |
|
规格书 |
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 µH | ±2% | 280 mA | - | Unshielded | 2.8Ohm Max | 28 @ 50MHz | 160MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1411 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
LQW15AN4N5D8ZDFIXED IND 4.5NH 1.45A 0.06OHM SM |
2,172 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.5 nH | ±0.5nH | 1.45 A | - | Unshielded | 60mOhm Max | 34 @ 250MHz | 9.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
BWCS0029282127NG00INDUCTOR RF |
1,995 |
|
规格书 |
BWCS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 1 A | - | Unshielded | 130mOhm Max | 55 @ 350MHz | 1.6GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
BWCS00292821R18J00INDUCTOR RF |
1,990 |
|
规格书 |
BWCS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 620 mA | - | Unshielded | 770mOhm Max | 45 @ 100MHz | 750MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
BWCS00292821R75J00INDUCTOR RF |
1,929 |
|
规格书 |
BWCS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 750 nH | ±5% | 360 mA | - | Unshielded | 1.54Ohm Max | 45 @ 100MHz | 360MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
LQW15AN19NJ8ZDFIXED IND 19NH 920MA 0.156OHM SM |
1,869 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 19 nH | ±5% | 920 mA | - | Unshielded | 156mOhm Max | 30 @ 250MHz | 5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLG0603P3N6CTD25FIXED IND 3.6NH 400MA 200MOHM SM |
1,390 |
|
规格书 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.6 nH | ±0.2nH | 400 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
BSCL00201212100K00INDUCTOR RF |
102,977 |
|
规格书 |
BSCL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±10% | 15 mA | - | Unshielded | 1.1Ohm Max | 45 @ 2MHz | 24MHz | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
0402HM-4N7EKTSFIXED IND 4.7NH 750MA 70MOHM SMD |
13,466 |
|
规格书 |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±10% | 750 mA | - | Unshielded | 70mOhm | 25 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
