在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

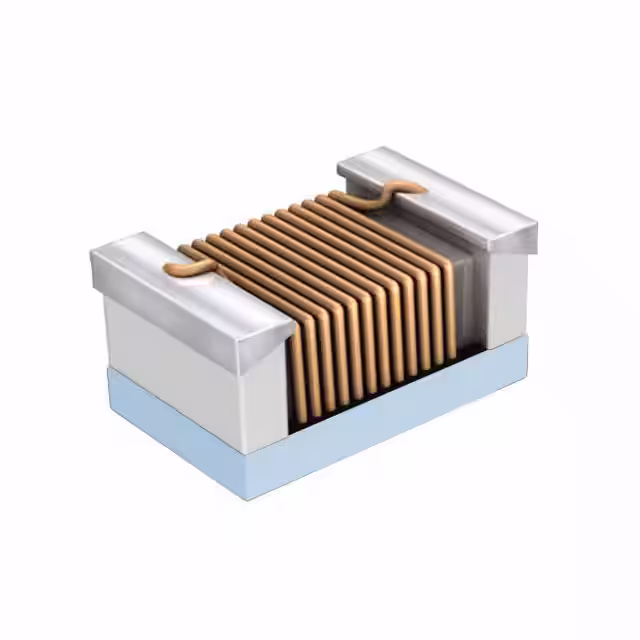

0402HC-6N0ECTSFIXED IND 6NH 760MA 56 MOHM SMD |
3,571 |
|
规格书 |
0402HC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6 nH | ±0.2nH | 760 mA | - | Unshielded | 56mOhm | 30 @ 250MHz | 7.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|

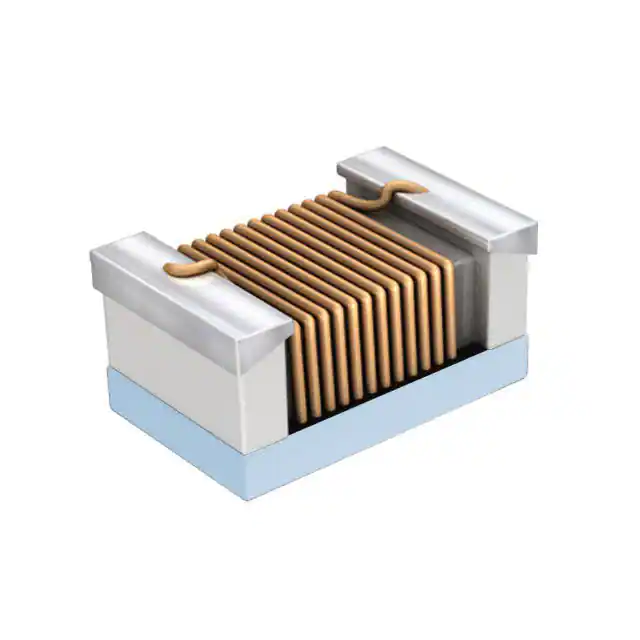

0402HP-470EKTSFIXED IND 47NH 420MA 580MOHM SMD |
3,550 |
|
规格书 |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±10% | 420 mA | - | Unshielded | 580mOhm | - | 2.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
0402HS-2N0EKTSFIXED IND 2NH 1.04A 70 MOHM SMD |
3,497 |
|
规格书 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±10% | 1.04 A | - | Unshielded | 70mOhm | 16 @ 250MHz | 11.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
-MCoil-MC-Series.jpg)
|
MCFE1608TR24MGFIXED IND 240NH 2.6A 100MOHM SMD |
3,309 |
|
规格书 |
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 2.6 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
|
0402HS-3N3EKTSFIXED IND 3.3NH 840MA 66MOHM SMD |
3,306 |
|
规格书 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±10% | 840 mA | - | Unshielded | 66mOhm | 19 @ 250MHz | 7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
-1,45mm.jpg)
|
CB2012T4R7MVFIXED IND 4.7UH 430MA 520MOHM SM |
3,000 |
|
规格书 |
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 430 mA | 300mA | Unshielded | 520mOhm Max | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LQM2MPNR47MG0LFIXED IND 470NH 1.2A 75MOHM SMD |
2,990 |
|
规格书 |
LQM2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.2 A | - | Shielded | 75mOhm Max | - | 100MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQW2BAS82NG00LFIXED IND 82NH 400MA 420MOHM SMD |
2,930 |
|
规格书 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 82 nH | ±2% | 400 mA | - | Unshielded | 420mOhm Max | 65 @ 500MHz | 1.33GHz | - | -40°C ~ 85°C | 150 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
SDWL1608CPR20JSTFFIXED IND 200NH 280MA 2 OHM SMD |
2,875 |
|
规格书 |
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 200 nH | ±5% | 280 mA | - | Unshielded | 2Ohm Max | 47 @ 250MHz | 1.25GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
TYA2520103R3M-10FIXED IND 3.3UH 1.2A 235MOHM SMD |
2,707 |
|
规格书 |
TYA252010 | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.2 A | 1.6A | Shielded | 235mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.045" (1.15mm) |
|
MLF2012A1R2KTD25FIXED IND 1.2UH 80MA 350MOHM SMD |
2,624 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±10% | 80 mA | - | Shielded | 350mOhm Max | 45 @ 10MHz | 110MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

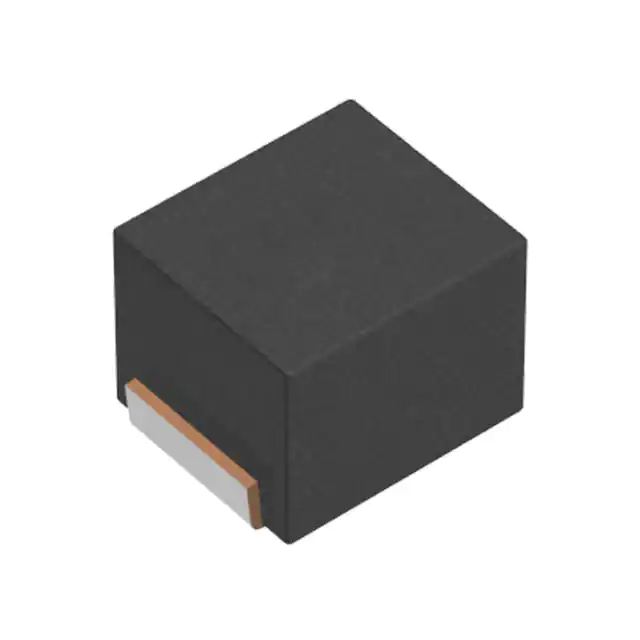

NLCV25T-R68M-EFRFIXED IND 680NH 1.26A 108MOHM SM |
2,191 |
|
规格书 |
NLCV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 1.26 A | - | Unshielded | 108mOhm Max | 5 @ 25.2MHz | 160MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
MLF2012DR18KTD25FIXED IND 180NH 300MA 250MOHM SM |
1,990 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±10% | 300 mA | - | Shielded | 250mOhm Max | 20 @ 25MHz | 280MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
LQW18AN30NJ8ZDFIXED IND 30NH 1.1A 0.12OHM SMD |
1,988 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 30 nH | ±5% | 1.1 A | - | Unshielded | 120mOhm Max | 40 @ 250MHz | 2.88GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
NLV25T-027J-EFFIXED IND 27NH 410MA 400MOHM SMD |
1,940 |
|
规格书 |
NLV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 nH | ±5% | 410 mA | - | Unshielded | 400mOhm Max | 15 @ 100MHz | 1.55GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLCV25T-R22M-EFRFIXED IND 220NH 1.69A 60MOHM SMD |
1,926 |
|
规格书 |
NLCV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 1.69 A | - | Unshielded | 60mOhm Max | 5 @ 25.2MHz | 400MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
0402HS-5N6EJTSFIXED IND 5.6NH 760MA 83MOHM SMD |
1,911 |
|
规格书 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 760 mA | - | Unshielded | 83mOhm | 20 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
-1,80mm.jpg)
|

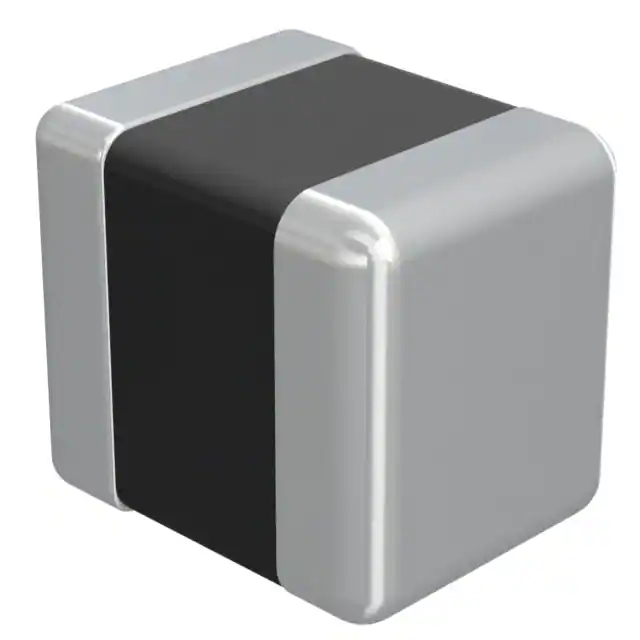

CB2016T220KVFIXED IND 22UH 190MA 1.3 OHM SMD |
1,880 |
|
规格书 |
CB | 0806 (2016 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 190 mA | 165mA | Unshielded | 1.3Ohm Max | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
-MCoil-MC-Series.jpg)
|
MCHK2012TR24MFIXED IND 240NH 4.32A 24MOHM SMD |
1,854 |
|
规格书 |
MCOIL™, MC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 4.32 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.031" (0.80mm) |
|
|
MLF2012DR39KTD25FIXED IND 390NH 200MA 450MOHM SM |
1,709 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 390 nH | ±10% | 200 mA | - | Shielded | 450mOhm Max | 25 @ 25MHz | 180MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
