在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

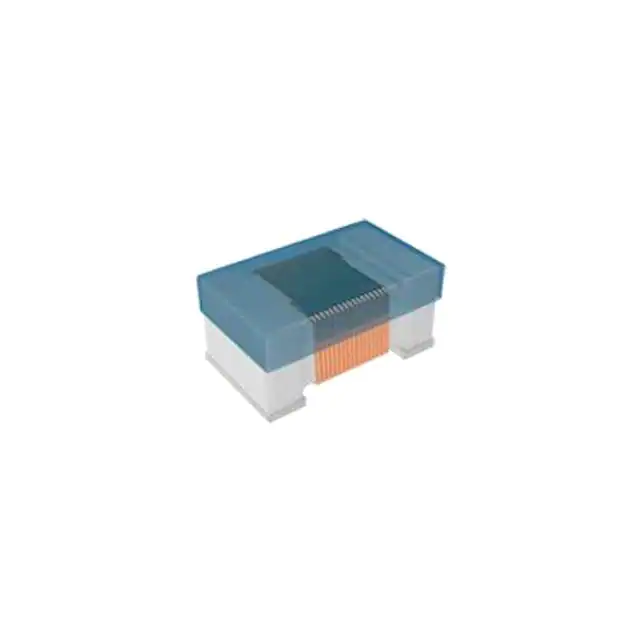

SDWL1608C2N2DSTFM11FIXED IND 2.2NH 1.4A 18MOHM SMD |
2,930 |
|
规格书 |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.5nH | 1.4 A | - | Unshielded | 18mOhm Max | 18 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C3N9CSTFM01FIXED IND 3.9NH 850MA 59MOHM SMD |
2,923 |
|
规格书 |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±0.2nH | 850 mA | - | Unshielded | 59mOhm Max | 35 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C22NJSTFM01FIXED IND 22NH 500MA 170MOHM SMD |
2,862 |
|
规格书 |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 500 mA | - | Unshielded | 170mOhm Max | 40 @ 250MHz | 4.6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C2N2CSTFM11FIXED IND 2.2NH 1.4A 18MOHM SMD |
2,845 |
|
规格书 |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.2nH | 1.4 A | - | Unshielded | 18mOhm Max | 18 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C18NGSTFM11FIXED IND 18NH 700MA 85MOHM SMD |
2,827 |
|
规格书 |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±2% | 700 mA | - | Unshielded | 85mOhm Max | 42 @ 250MHz | 3.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C8N7CSTFM01FIXED IND 8.7NH 650MA 110MOHM SM |
2,815 |
|
规格书 |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.7 nH | ±0.2nH | 650 mA | - | Unshielded | 110mOhm Max | 35 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C39NGSTFM01FIXED IND 39NH 400MA 260MOHM SMD |
2,717 |
|
规格书 |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | 400 mA | - | Unshielded | 260mOhm Max | 40 @ 250MHz | 2.8GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
BDQQ00201208R33MCAINDUCTOR PWR MOLDED 0.33UH 5.3A |
2,679 |
|
规格书 |
BDQQ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 4.5 A | 5.3A | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.031" (0.80mm) |
|
MPH252010S1R0MTFIXED IND 1UH 1.6A 75 MOHM SMD |
2,645 |
|
规格书 |
MPH | Nonstandard | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.6 A | 1.15A | Shielded | 75mOhm Max | - | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SDWL1608CR13GSTFM01FIXED IND 130NH 170MA 1.4OHM SMD |
2,636 |
|
规格书 |
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 130 nH | ±2% | 170 mA | - | Unshielded | 1.4Ohm Max | 32 @ 150MHz | 1.45GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
SDET25201B-R47MSFIXED IND 470NH 3.7A 28.5MOHM SM |
2,635 |
|
规格书 |
SDET25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 3.7 A | 3.5A | Shielded | 28.5mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
.jpg)
|
MLJ1608WR22KT000FIXED IND 220NH 600MA 260MOHM SM |
2,508 |
|
规格书 |
MLJ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±10% | 600 mA | 700mA | Shielded | 260mOhm Max | 35 @ 25MHz | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|

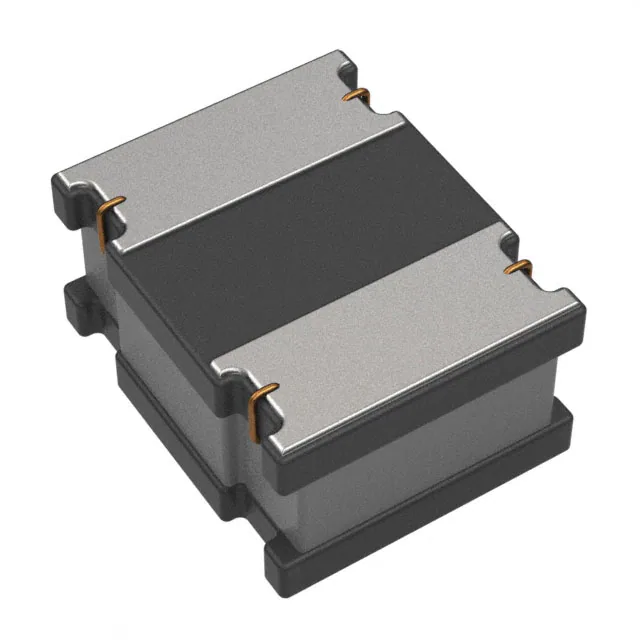

SDEM20161T-2R2MSFIXED IND 2.2UH 1.6A 0.159OHM SM |
2,506 |
|
规格书 |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 1.6 A | 1.7A | Shielded | 159mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
MLF1608DR33KTD25FIXED IND 330NH 100MA 750MOHM SM |
2,380 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±10% | 100 mA | - | Shielded | 750mOhm Max | 15 @ 25MHz | 230MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
HMLB25201B-2R2MSRFIXED IND 2.2UH 2.3A 95MOHM SMD |
2,303 |
|
规格书 |
HMLB25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 2.3 A | 2.6A | Shielded | 95mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
-2,00mm.jpg)
|
LBR2518T101KVFIXED IND 100UH 80MA 1.89OHM SMD |
2,292 |
|
规格书 |
LB, R Type | 1007 (2518 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 100 µH | ±10% | 80 mA | - | Unshielded | 1.89Ohm | - | 9MHz | AEC-Q200 | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
MLF1608C150KTD25FIXED IND 15UH 2MA 1.5 OHM SMD |
1,956 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 15 µH | ±10% | 2 mA | - | Shielded | 1.5Ohm Max | 20 @ 1MHz | 22MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
VLS201610HBX-1R5M-1FIXED IND 1.5UH 1.63A 116MOHM SM |
1,950 |
|
规格书 |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1.63 A | 2A | Shielded | 116mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
WCL2520-3R3-RFIXED IND 3.3UH 280MA 1.5OHM SMD |
1,905 |
|
规格书 |
WCL2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 µH | ±5% | 280 mA | - | Unshielded | 1.5Ohm Max | 12 @ 7.96MHz | 80MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
WCL2520-330-RFIXED IND 33UH 85MA 4.8 OHM SMD |
1,825 |
|
规格书 |
WCL2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 µH | ±5% | 85 mA | - | Unshielded | 4.8Ohm Max | 10 @ 2.52MHz | 8MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
