在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXND4040TKL680MDGFIXED IND 68UH 320MA 1.2 OHM SMD |
5,325 |
|
规格书 |
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 320 mA | 520mA | Unshielded | 1Ohm | - | 8.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

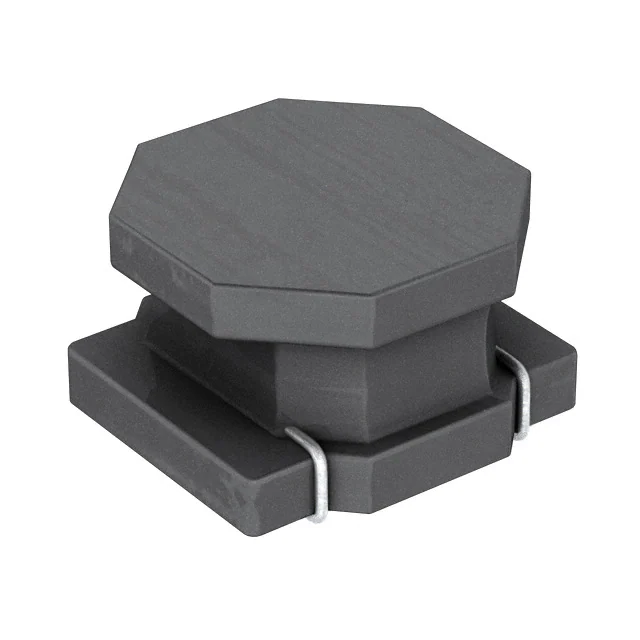

MDKK1616TR47MMFIXED IND 470NH 1.78A 95MOHM SMD |
4,970 |
|
规格书 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 1.78 A | 3.3A | Shielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.039" (1.00mm) |
|
744761136CFIXED IND 36NH 600MA 200MOHM SMD |
4,846 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±5% | 600 mA | - | Unshielded | 200mOhm Max | 36 @ 250MHz | 2.08GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
B78108E1683J009FIXED IND 68UH 780MA 900 MOHM TH |
4,367 |
|
规格书 |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 780 mA | 720mA | Unshielded | 900mOhm Max | 45 @ 796kHz | 6.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

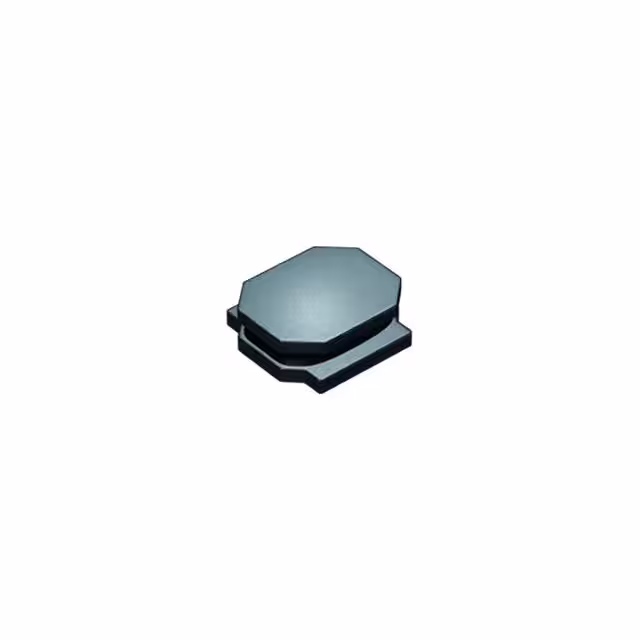

LSXBD3030KKT470MFIXED IND 47UH 235MA 2.46OHM SMD |
4,000 |
|
规格书 |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 235 mA | 220mA | Shielded | 2.05Ohm | - | 17MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
74476010CFIXED IND 10NH 600MA 120MOHM SMD |
3,822 |
|
规格书 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 600 mA | - | Unshielded | 120mOhm Max | 50 @ 1GHz | 4.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744761039CFIXED IND 3.9NH 700MA 70MOHM SMD |
3,770 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±5% | 700 mA | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
MDKK2020T4R7MMFIXED IND 4.7UH 750MA 435MOHM SM |
3,457 |
|
规格书 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 750 mA | 1.05A | Shielded | 435mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MDKK1616T4R7MMFIXED IND 4.7UH 550MA 640MOHM SM |
3,328 |
|
规格书 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 550 mA | 950mA | Shielded | 640mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.039" (1.00mm) |
|
|
744761112CFIXED IND 12NH 700MA 100MOHM SMD |
3,036 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 700 mA | - | Unshielded | 100mOhm Max | 32 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
744761182CFIXED IND 82NH 400MA 580MOHM SMD |
2,950 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 580mOhm Max | 30 @ 150MHz | 1.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
744761075CFIXED IND 7.5NH 700MA 100MOHM SM |
2,855 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 700 mA | - | Unshielded | 100mOhm Max | 28 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
744761043CFIXED IND 4.3NH 700MA 70MOHM SMD |
2,719 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.3 nH | ±5% | 700 mA | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 5.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
LQM2HPNR68MCHLFIXED IND 680NH 1.5A 150MOHM SMD |
2,539 |
|
规格书 |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 680 nH | ±20% | 1.5 A | 1.1A | Shielded | 150mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MDKK2020T2R2MMFIXED IND 2.2UH 1.2A 165MOHM SMD |
2,446 |
|
规格书 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.2 A | 1.65A | Shielded | 165mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
|
744760027CFIXED IND 2.7NH 800MA 80MOHM SMD |
2,209 |
|
规格书 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±0.2nH | 800 mA | - | Unshielded | 80mOhm Max | 30 @ 1GHz | 7.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|

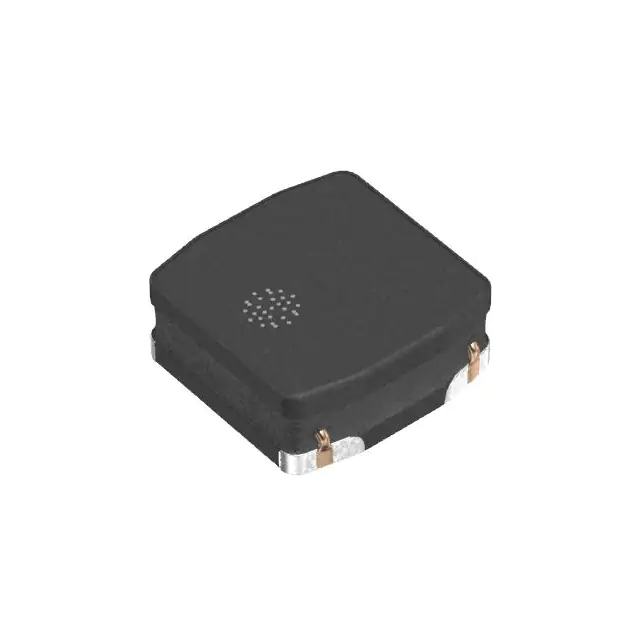

VLS4012CX-680M-1FIXED IND 68UH 540MA 1.625OHM SM |
2,136 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 540 mA | 320mA | Shielded | 1.625Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|

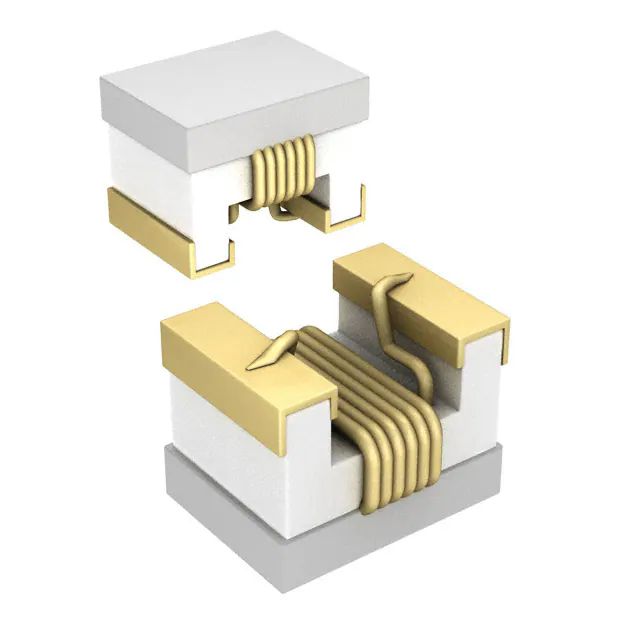

74476014CFIXED IND 47NH 500MA 310MOHM SMD |
2,000 |
|
规格书 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 500 mA | - | Unshielded | 310mOhm Max | 50 @ 500MHz | 1.65GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|

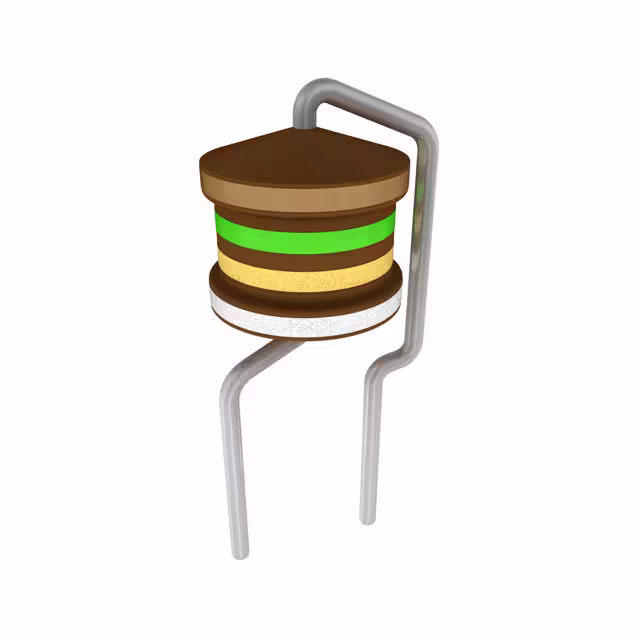

B78148E1152K000FIXED IND 1.5UH 3.8A 47 MOHM TH |
1,893 |
|
规格书 |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 3.8 A | 4.8A | Unshielded | 47mOhm Max | 60 @ 7.96MHz | 235MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
|
744760112CFIXED IND 12NH 600MA 150MOHM SMD |
1,886 |
|
规格书 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 600 mA | - | Unshielded | 150mOhm Max | 45 @ 500MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
