在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0603F-R27J-TFIXED IND 270NH 630MA 240MOHM SM |
4,715 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±5% | 630 mA | - | Unshielded | 240mOhm Max | - | 780MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
PM1210-3R3J-RCFIXED IND 3.3UH 260MA 1.2OHM SMD |
1,346 |
|
规格书 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 260 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.96MHz | 60MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
1210HS-473EKFSFIXED IND 47UH 100MA 4.3 OHM SMD |
3,955 |
|
规格书 |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 100 mA | - | Unshielded | 4.3Ohm | 25 @ 2.52MHz | 15MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
|
SDCLA1V4018-6R8-RIND SMD POWER 6.8UH 1.45 |
3,884 |
|
规格书 |
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 6.8 µH | ±20% | 1.45 A | 1.6A | Shielded | 98mOhm | - | 30MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
SDCL1V4030-1R0N-RIND 1.0 UH 5.9A SMT |
3,798 |
|
规格书 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 3.8 A | 5.9A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
CM453232-220JLFIXED IND 22UH 180MA 3.2 OHM SMD |
3,785 |
|
规格书 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
NRV3012T100MVFIXED IND 10UH 640MA 470MOHM SMD |
3,626 |
|
规格书 |
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 640 mA | 800mA | Shielded | 470mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
1210HS-393EJFSFIXED IND 39UH 110MA 3.9 OHM SMD |
3,615 |
|
规格书 |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±5% | 110 mA | - | Unshielded | 3.9Ohm | 25 @ 2.52MHz | 16MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
.jpg)
|
VLS252010HBX-R33M-1FIXED IND 330NH 3.74A 31MOHM SMD |
3,057 |
|
规格书 |
VLS-HBX-1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 3.74 A | 5.03A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
744761056AFIXED IND 5.6NH 700MA 150MOHM SM |
2,940 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 700 mA | - | Unshielded | 150mOhm Max | 16 @ 250MHz | 5.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
AISC-0603F-R12J-TFIXED IND 120NH 670MA 180MOHM SM |
2,858 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±5% | 670 mA | - | Unshielded | 180mOhm Max | - | 1.34GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
SDCHA1V5020-4R7-RIND SMD POWER 4.7UH 2.4A |
2,796 |
|
规格书 |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 2.4 A | 2.7A | Shielded | 60mOhm | - | 55MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
PM1210-1R2J-RCFIXED IND 1.2UH 215MA 750MOHM SM |
2,700 |
|
规格书 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 215 mA | - | Unshielded | 750mOhm Max | 30 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM453232-R47KLFIXED IND 470NH 545MA 320MOHM SM |
2,519 |
|
规格书 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±10% | 545 mA | - | Unshielded | 320mOhm Max | 40 @ 25.2MHz | 145MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

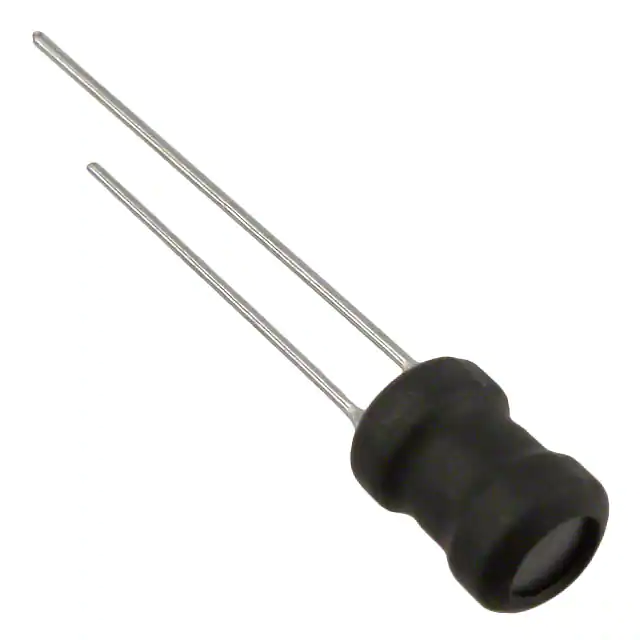

RLB0712-471KLFIXED IND 470UH 160MA 1.5 OHM TH |
2,170 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 160 mA | - | Unshielded | 1.5Ohm Max | 20 @ 796kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
PM1812-3R3J-RCFIXED IND 3.3UH 355MA 800MOHM SM |
4,477 |
|
规格书 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±5% | 355 mA | - | Unshielded | 800mOhm Max | 50 @ 7.96MHz | 45MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM453232-5R6JLFIXED IND 5.6UH 300MA 1.1OHM SMD |
2,000 |
|
规格书 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 300 mA | - | Unshielded | 1.1Ohm Max | 50 @ 7.96MHz | 33MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM453232-R33KLFIXED IND 330NH 605MA 280MOHM SM |
1,345 |
|
规格书 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±10% | 605 mA | - | Unshielded | 280mOhm Max | 40 @ 25.2MHz | 165MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPH252010HR68MTY02FIXED IND 680NH 2.1A 65MOHM SMD |
2,000 |
|
规格书 |
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 2.1 A | 3.5A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
PM1812-R10K-RCFIXED IND 100NH 800MA 180MOHM SM |
1,930 |
|
规格书 |
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 800 mA | - | Unshielded | 180mOhm Max | 35 @ 25.2MHz | 300MHz | - | -40°C ~ 100°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
