在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MHQ Series.jpg)
|
MHQ0603P12NJT000FIXED IND 12NH 240MA 1.4 OHM SMD |
11,153 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 12 nH | ±5% | 240 mA | - | Unshielded | 1.4Ohm Max | 16 @ 500MHz | 3.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
AISC-0603F-1R0J-TFIXED IND 1UH 280MA 940 MOHM SMD |
11,058 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 280 mA | - | Unshielded | 940mOhm Max | - | 410MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
MHQ0603P11NJT000FIXED IND 11NH 240MA 1.3 OHM SMD |
10,825 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 11 nH | ±5% | 240 mA | - | Unshielded | 1.3Ohm Max | 16 @ 500MHz | 3.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P13NJT000FIXED IND 13NH 180MA 1.5 OHM SMD |
10,660 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 13 nH | ±5% | 180 mA | - | Unshielded | 1.5Ohm Max | 16 @ 500MHz | 3.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N2ST000FIXED IND 2.2NH 700MA 150MOHM SM |
10,090 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.2 nH | ±0.3nH | 700 mA | - | Unshielded | 150mOhm Max | 16 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P0N7CT000FIXED IND 0.7NH 1A 70 MOHM SMD |
9,864 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.7 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P4N3ST000FIXED IND 4.3NH 400MA 350MOHM SM |
9,861 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.3 nH | ±0.3nH | 400 mA | - | Unshielded | 350mOhm Max | 16 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P36NJT000FIXED IND 36NH 160MA 2.8 OHM SMD |
9,645 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 36 nH | ±5% | 160 mA | - | Unshielded | 2.8Ohm Max | 14 @ 300MHz | 1.7GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|

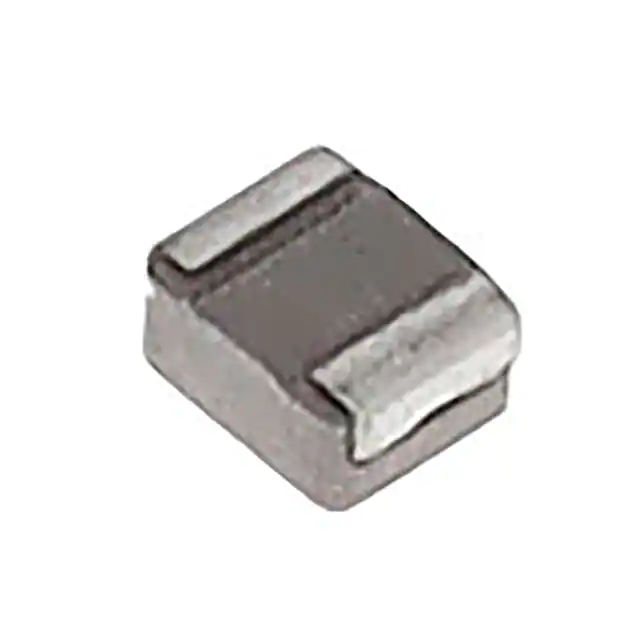

201610CDMCDDS-R47MCFIXED IND 470NH 4.6A 32 MOHM SMD |
8,406 |
|
规格书 |
201610CDMCD/DS | 0806 (2016 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 470 nH | ±20% | 4.6 A | 4.8A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
ASPI-4030S-1R2N-TFIXED IND 1.2UH 3.82A 15MOHM SMD |
5,914 |
|
规格书 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.2 µH | ±30% | 3.82 A | 5.8A | Shielded | 15mOhm | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
7447602470AWE-KI SMT WIRE WOUND CERAMIC IND |
5,800 |
|
规格书 |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 210 mA | - | Unshielded | 1.05Ohm Max | 25 @ 100MHz | 350MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
PE-0603CD5N1JTTFIXED IND 5.1NH 700MA 108MOHM SM |
5,326 |
|
规格书 |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±5% | 700 mA | - | Unshielded | 108mOhm Max | 20 @ 250MHz | 5.7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
LCXPD2020KKTR68N0GFIXED IND 680NH 1.85A 72MOHM SMD |
5,000 |
|
规格书 |
LCXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 nH | ±30% | 1.85 A | 1.85A | Unshielded | 60mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
NRS4010T3R3MDGGVFIXED IND 3.3UH 1.4A 120MOHM SMD |
4,860 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.4 A | 1.1A | Shielded | 120mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
VLS252008ET-1R5NFIXED IND 1.5UH 910MA 248MOHM SM |
3,858 |
|
规格书 |
VLS-E | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 910 mA | 1A | Shielded | 248mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
744765087AFIXED IND 8.7NH 480MA 200MOHM SM |
3,525 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.7 nH | ±5% | 480 mA | - | Unshielded | 200mOhm Max | 18 @ 250MHz | 4.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765024AFIXED IND 2.4NH 790MA 68MOHM SMD |
3,039 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.4 nH | ±0.2nH | 790 mA | - | Unshielded | 68mOhm Max | 16 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
744765119AFIXED IND 19NH 480MA 202MOHM SMD |
2,976 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 19 nH | ±5% | 480 mA | - | Unshielded | 202mOhm Max | 26 @ 250MHz | 3.04GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
SDCH1V5040-330M-RIND 33 UH 1.30A SMT |
2,965 |
|
规格书 |
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 1.2 A | 1.3A | Shielded | 219mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.161" (4.10mm) |
|
|
744765140AFIXED IND 40NH 320MA 438MOHM SMD |
2,884 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 40 nH | ±5% | 320 mA | - | Unshielded | 438mOhm Max | 26 @ 250MHz | 2.24GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
