在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WPN201610U1R0MTY01FIXED IND 1UH 3.1A 60 MOHM SMD |
2,830 |
|
规格书 |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.1 A | 3.8A | Shielded | 60mOhm Max | - | 63MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

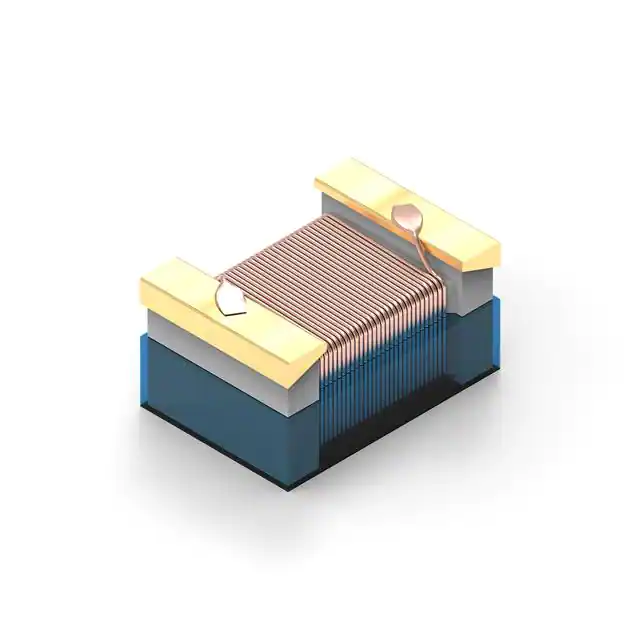

744761256AWE-KI SMT WIRE WOUND CERAMIC IND |
2,820 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 120 mA | - | Unshielded | 2.5Ohm Max | 15 @ 25MHz | 220MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
744765095AFIXED IND 9.5NH 680MA 200MOHM SM |
2,701 |
|
规格书 |
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 9.5 nH | ±5% | 680 mA | - | Unshielded | 200mOhm Max | 18 @ 250MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
AISC-0603F-220J-TFIXED IND 22UH 70MA 11.4 OHM SMD |
2,679 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 70 mA | - | Unshielded | 11.4Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|

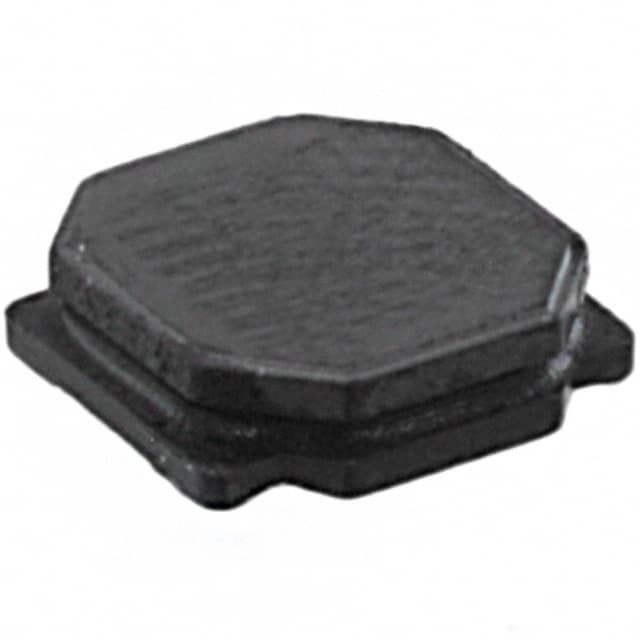

NR6020T1R5NFIXED IND 1.5UH 3.2A 31.2MOHM SM |
2,441 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.2 A | 4A | Shielded | 31.2mOhm Max | - | 93MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
SWPA4018S2R2MTFIXED IND 2.2UH 1.65A 59MOHM SMD |
2,408 |
|
规格书 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.65 A | 3.2A | Shielded | 59mOhm Max | - | 52MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
ASPI-0418FS-680M-T3FIXED IND 68UH 500MA 1.128OHM SM |
2,258 |
|
规格书 |
ASPI-0418FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 400 mA | 530mA | Shielded | 972mOhm Max | - | 7.1MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

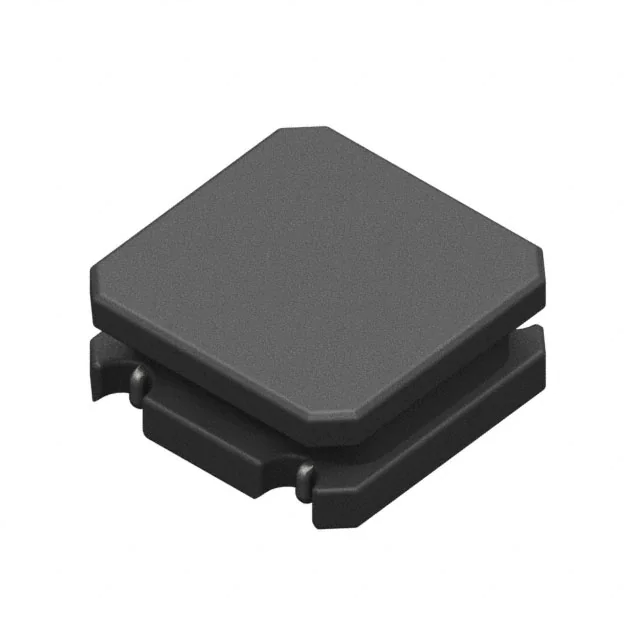

ASPI-0425-680M-T3FIXED IND 68UH 350MA 852MOHM SMD |
2,254 |
|
规格书 |
ASPI-0425 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 68 µH | ±20% | 350 mA | 350mA | Shielded | 852mOhm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
SWPA4020S2R2NTFIXED IND 2.2UH 1.85A 52MOHM SMD |
2,250 |
|
规格书 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.85 A | 3.7A | Shielded | 52mOhm Max | - | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
ASPI-U252010-4R7M-TFIXED IND 4.7UH SMD |
4,297 |
|
规格书 |
ASPI-U | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | - | - | - | Unshielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
WPN201610HR68MTFIXED IND 680NH 2.5A 65MOHM SMD |
1,940 |
|
规格书 |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 2.5 A | 4A | Shielded | 65mOhm Max | - | 77MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SWPA4030SR91NTFIXED IND 910NH 4.15A 17MOHM SMD |
1,920 |
|
规格书 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 910 nH | ±30% | 4.15 A | 6.8A | Shielded | 17mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
VLS252008ET-R47NFIXED IND 470NH 1.2A 140MOHM SMD |
1,880 |
|
规格书 |
VLS-E | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 1.2 A | 1.65A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|

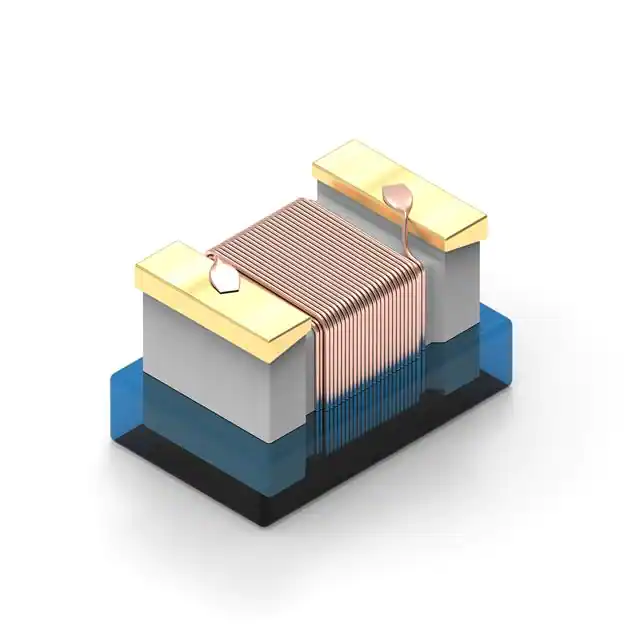

7447603150AWE-KI SMT WIRE WOUND CERAMIC IND |
1,875 |
|
规格书 |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.5 µH | ±5% | 160 mA | - | Unshielded | 5.88Ohm Max | 18 @ 50MHz | 210MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
SWPA4018S3R3MTFIXED IND 3.3UH 1.23A 91MOHM SMD |
1,742 |
|
规格书 |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.23 A | 2.9A | Shielded | 91mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
WPN201610U1R5MTFIXED IND 1.5UH 2A 110 MOHM SMD |
1,725 |
|
规格书 |
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2 A | 3.2A | Shielded | 110mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

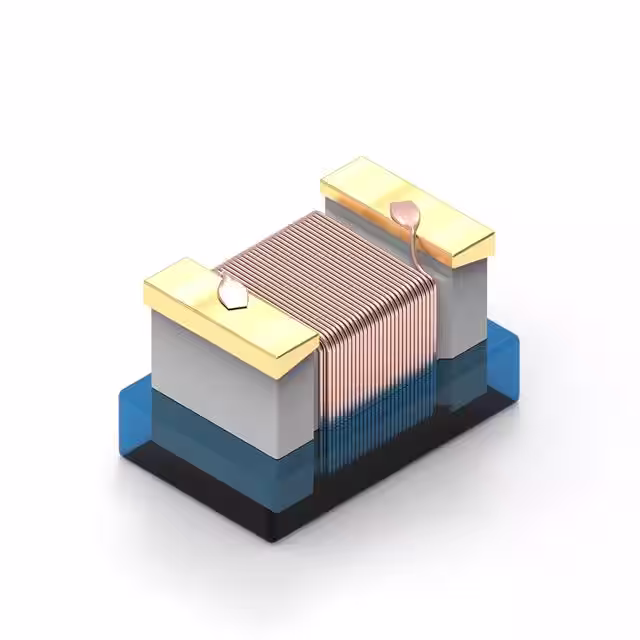

7447603180AWE-KI SMT WIRE WOUND CERAMIC IND |
1,723 |
|
规格书 |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.8 µH | ±5% | 140 mA | - | Unshielded | 6.26Ohm Max | 18 @ 50MHz | 210MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
WPN252010H4R7MTFIXED IND 4.7UH 1.1A 276MOHM SMD |
1,689 |
|
规格书 |
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.1 A | 1.5A | Shielded | 276mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
7447602680AWE-KI SMT WIRE WOUND CERAMIC IND |
1,686 |
|
规格书 |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 400 mA | - | Unshielded | 1.2Ohm Max | 15 @ 100MHz | 188MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
AISC-0603F-2R2J-TFIXED IND 2.2UH 220MA 1.5OHM SMD |
1,647 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 220 mA | - | Unshielded | 1.5Ohm Max | - | 120MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
