在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36501E20NJTDGFIXED IND 20NH 420MA 250MOHM SMD |
16,886 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 20 nH | ±5% | 420 mA | - | Unshielded | 250mOhm Max | 25 @ 250MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
PA5447.152NLTFIXED IND 1.5UH 6A 25.2MOHM SMD |
9,715 |
|
规格书 |
PA5447.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 6 A | 13A | Shielded | 25.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
36501E7N5JTDGFIXED IND 7.5NH 680MA 104MOHM SM |
5,688 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 7.5 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 22 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
36501E2N2JTDGFIXED IND 2.2NH 960MA 70MOHM SMD |
4,192 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.2 nH | ±5% | 960 mA | - | Unshielded | 70mOhm Max | 19 @ 250MHz | 10.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
36501E23NJTDGFIXED IND 23NH 400MA 300MOHM SMD |
3,990 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 23 nH | ±5% | 400 mA | - | Unshielded | 300mOhm Max | 22 @ 250MHz | 2.72GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

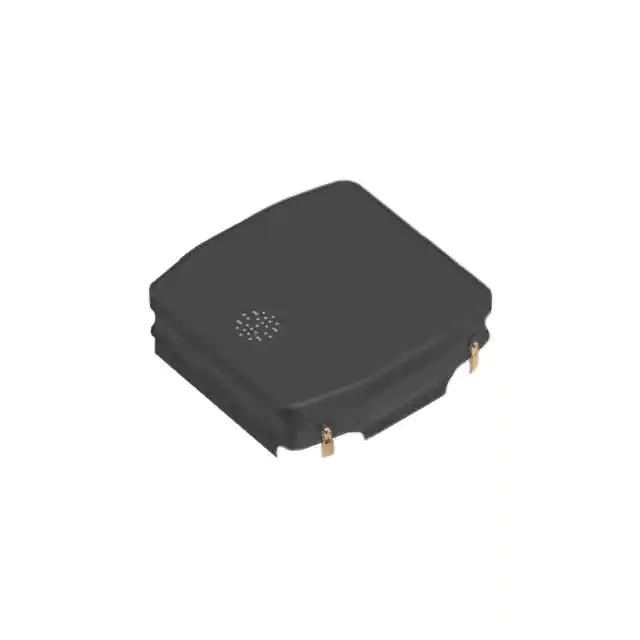

VLS4012HBX-R68M-NINDUCTORS FOR POWER CIRCUITS, WO |
3,985 |
|
规格书 |
VLS-HBX | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 5.36 A | 7A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
36501E4N3JTDGFIXED IND 4.3NH 700MA 91MOHM SMD |
3,568 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 4.3 nH | ±5% | 700 mA | - | Unshielded | 91mOhm Max | 18 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
SLF7032T-681MR16-2PFFIXED IND 680UH 160MA 3.78OHM SM |
2,003 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 160 mA | - | Shielded | 3.78Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
36501E10NJFIXED IND 10NH 480MA 195MOHM SMD |
1,912 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±5% | 480 mA | - | Unshielded | 195mOhm Max | 21 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
36501E2N0JTDGFIXED IND 2NH 1.04A 70 MOHM SMD |
1,656 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2 nH | ±5% | 1.04 A | - | Unshielded | 70mOhm Max | 16 @ 250MHz | 11.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
7440320018FIXED IND 1.8UH 640MA 140MOHM SM |
1,598 |
|
规格书 |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 640 mA | 2A | Unshielded | 140mOhm Max | 20 @ 1MHz | 60MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
36501E33NJTDGFIXED IND 33NH 400MA 350MOHM SMD |
1,439 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±5% | 400 mA | - | Unshielded | 350mOhm Max | 24 @ 250MHz | 2.35GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
36501E6N2JTDGFIXED IND 6.2NH 760MA 83MOHM SMD |
1,315 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 6.2 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 20 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
36501E5N1JTDGFIXED IND 5.1NH 800MA 83MOHM SMD |
1,308 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 5.1 nH | ±5% | 800 mA | - | Unshielded | 83mOhm Max | 20 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

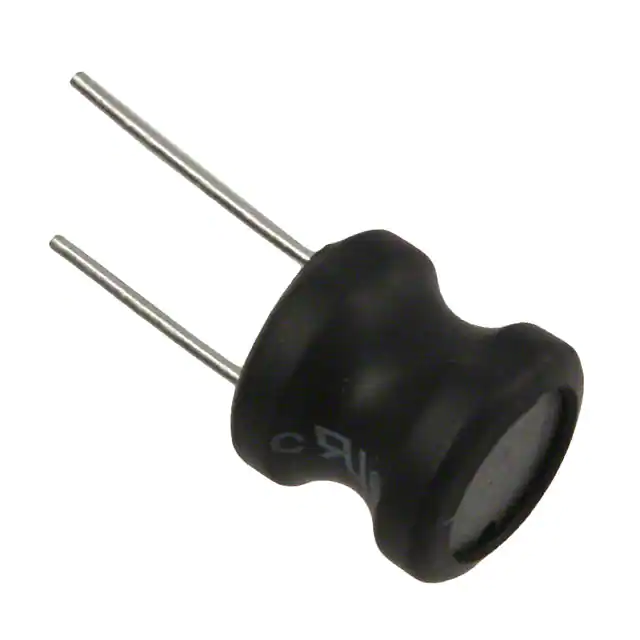

RLB1314-471KLFIXED IND 470UH 460MA 510MOHM TH |
1,170 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 460 mA | - | Unshielded | 510mOhm Max | 30 @ 796kHz | 2.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
|
RLB1314-152KLFIXED IND 1.5MH 250MA 1.7 OHM TH |
1,110 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 250 mA | - | Unshielded | 1.7Ohm Max | 30 @ 252kHz | 1.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
|
36501E8N2JTDGFIXED IND 8.2NH 680MA 104MOHM SM |
1,028 |
|
规格书 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 8.2 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 22 @ 250MHz | 4.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
RLB1314-3R3MLFIXED IND 3.3UH 5.6A 8 MOHM TH |
1,010 |
|
规格书 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.6 A | - | Unshielded | 8mOhm Max | 90 @ 7.96MHz | 59MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
P0770.222NLFIXED IND 2.2UH 2.3A 70 MOHM SMD |
4,930 |
|
规格书 |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 2.3 A | 2.3A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
P0770.472NLFIXED IND 4.7UH 1.5A 90 MOHM SMD |
4,920 |
|
规格书 |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
