在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWSA0618S-1R5MTFIXED IND 1.5UH 8A 26 MOHM SMD |
1,285 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 8 A | 9.2A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|

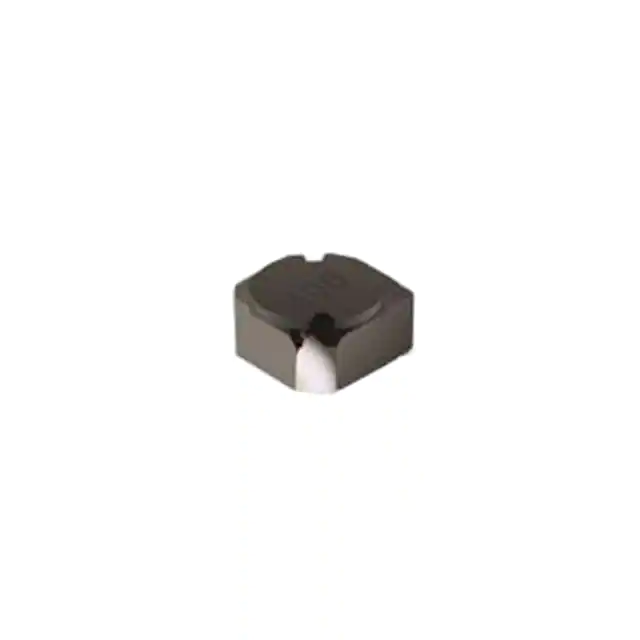

SRR4528A-4R7YFIXED IND 4.7UH 2.63A 40MOHM SMD |
20,642 |
|
规格书 |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 2.63 A | 1.58A | Shielded | 40mOhm Max | - | 54MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
PA5402.472NLTFIXED IND 4.7UH 2.6A 105MOHM SMD |
5,709 |
|
规格书 |
PA5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 2.6 A | 3.5A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|

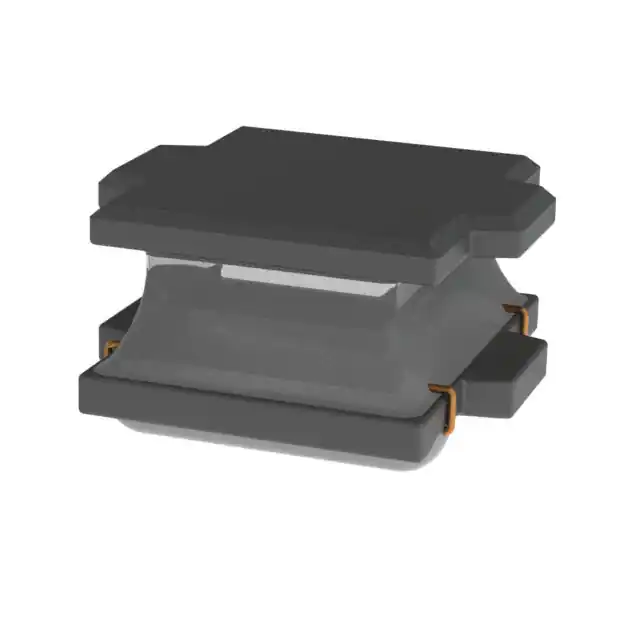

PA4338.104NLTFIXED IND 100UH 1A 290 MOHM SMD |
5,691 |
|
规格书 |
PA4338.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 100 µH | ±20% | 1 A | 1.15A | Shielded | 290mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
PA5402.152NLTFIXED IND 1.5UH 4.5A 42MOHM SMD |
5,086 |
|
规格书 |
PA5402 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 4.5 A | 7A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRR4528A-560MFIXED IND 56UH 810MA 348MOHM SMD |
3,936 |
|
规格书 |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±20% | 810 mA | 450mA | Shielded | 348mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|

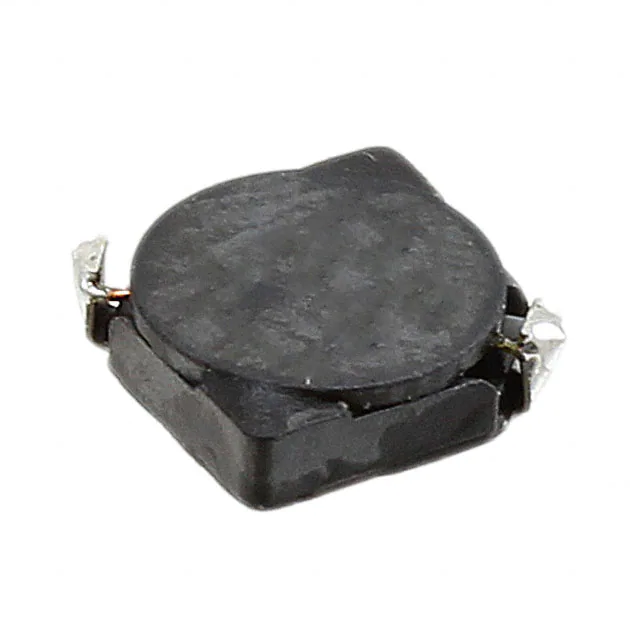

CDRH5D18NP-150NCFIXED IND 15UH 970MA 196MOHM SMD |
3,872 |
|
规格书 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 970 mA | - | Shielded | 196mOhm Max | - | - | - | -40°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|
|
MWSA0402S-R68MTFIXED IND 680NH 7A 18 MOHM SMD |
2,981 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 680 nH | ±20% | 7 A | 8A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWSA0402S-R33MTFIXED IND 330NH 10A 11 MOHM SMD |
2,920 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 330 nH | ±20% | 10 A | 12A | Shielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWSA0402S-R22MTFIXED IND 220NH 9.5A 6.6MOHM SMD |
2,788 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 220 nH | ±20% | 9.5 A | 12.5A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWSA0402S-1R2MTFIXED IND 1.2UH 6A 27 MOHM SMD |
2,750 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.2 µH | ±20% | 6 A | 6.5A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWSA0402S-R56MTFIXED IND 560NH 7A 16 MOHM SMD |
2,740 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 560 nH | ±20% | 7 A | 9A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWSA0402S-6R8MTFIXED IND 6.8UH 2.4A 175MOHM SMD |
2,724 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 6.8 µH | ±20% | 2.4 A | 2.5A | Shielded | 175mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWSA0402S-R10MTFIXED IND 100NH 13A 4 MOHM SMD |
2,620 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 100 nH | ±20% | 13 A | 22A | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWSA0402S-1R5MTFIXED IND 1.5UH 5A 46 MOHM SMD |
2,510 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 5 A | 5.5A | Shielded | 46mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

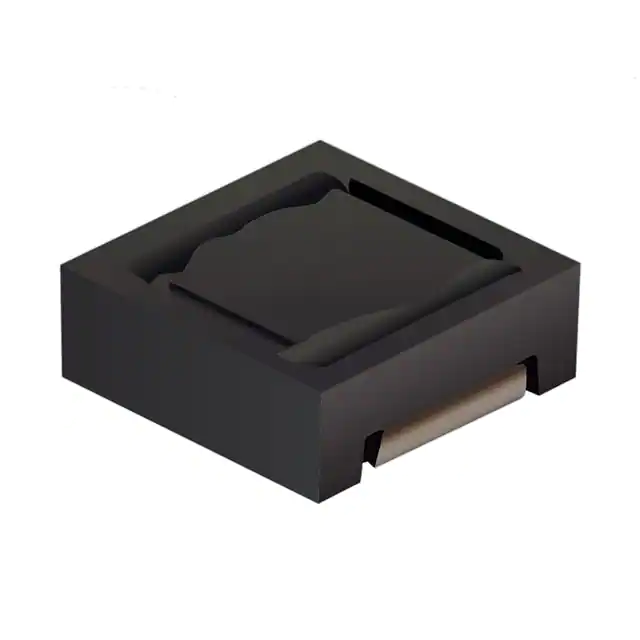

SRR4818A-180MFIXED IND 18UH 1.4A 280 MOHM SMD |
2,285 |
|
规格书 |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 1.4 A | 790mA | Shielded | 280mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|

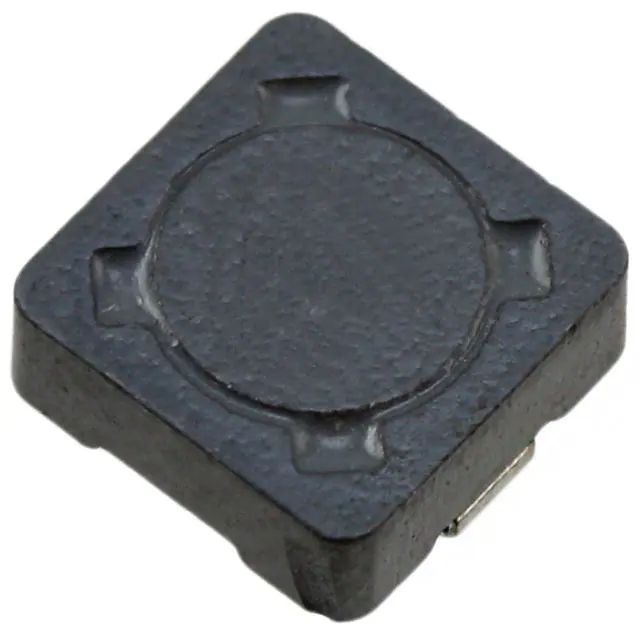

DR73-681-RFIXED IND 680UH 290MA 3.47OHM SM |
2,257 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 290 mA | 310mA | Shielded | 3.47Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DR73-820-RFIXED IND 82UH 860MA 384MOHM SMD |
2,147 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 860 mA | 890mA | Shielded | 384mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
SRR4818A-8R2YFIXED IND 8.2UH 1.9A 130MOHM SMD |
2,014 |
|
规格书 |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 1.9 A | 1.15A | Shielded | 130mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|

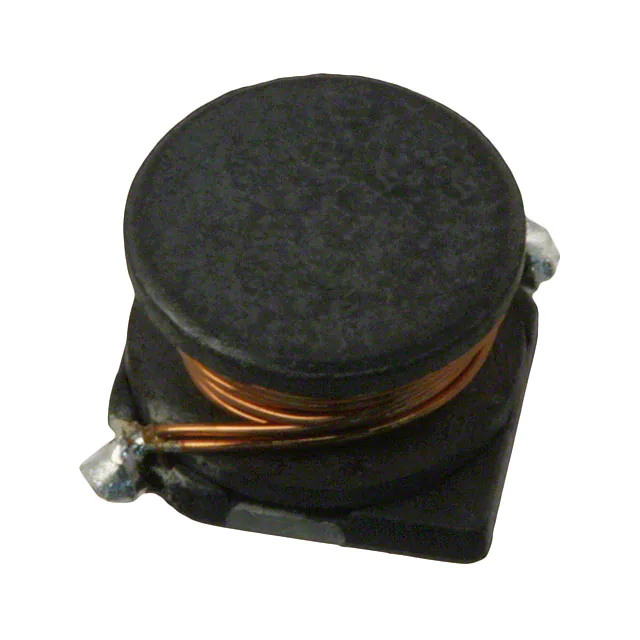

SDR7045-681KFIXED IND 680UH 300MA 2.4OHM SMD |
2,000 |
|
规格书 |
SDR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 300 mA | 260mA | Unshielded | 2.4Ohm Max | 18 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
