在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR4528A-271MFIXED IND 270UH 340MA 1.612 OHM |
1,765 |
|
规格书 |
SRR4528A | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±20% | 340 mA | 190mA | Shielded | 1.612Ohm Max | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
MWSA0402S-220MTFIXED IND 22UH 1.2A 363MOHM SMD |
1,185 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 22 µH | ±20% | 1.2 A | 1.4A | Shielded | 363mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

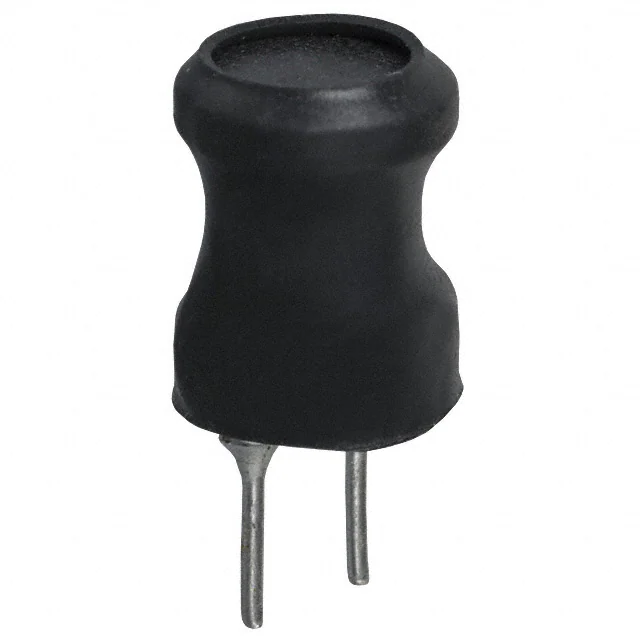

RL622-563K-RCFIXED IND 56MH 20MA 135 OHM TH |
8,574 |
|
规格书 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 mH | ±10% | 20 mA | - | Unshielded | 135Ohm Max | 20 @ 79.6kHz | 100kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.433" (11.00mm) |
|
BPSC00101140150M00FIXED IND 15UH 55 MOHM SMD |
6,582 |
|
规格书 |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | - | 3.4A | Shielded | 55mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
BPSC000303204R7MHPFIXED IND 4.7UH 1.2A 140MOHM SMD |
6,000 |
|
规格书 |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.2 A | 1A | Shielded | 140mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
BPSC001011406R8M00FIXED IND 6.8UH 31 MOHM SMD |
5,630 |
|
规格书 |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | - | 5A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
SPM5030VT-R47M-DFIXED IND 470NH 12.9A 0.0054OHM |
5,535 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 12.9 A | 14.7A | Shielded | 5.4mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
|
|
BPSC000505304R7MS0FIXED IND 4.7UH 162 MOHM SMD |
3,869 |
|
规格书 |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | - | 840mA | Shielded | 162mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
0630CDMCDDS-R22MCFIXED IND 220NH 24A 3 MOHM SMD |
2,613 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 220 nH | ±20% | 23 A | 40A | Shielded | 3.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

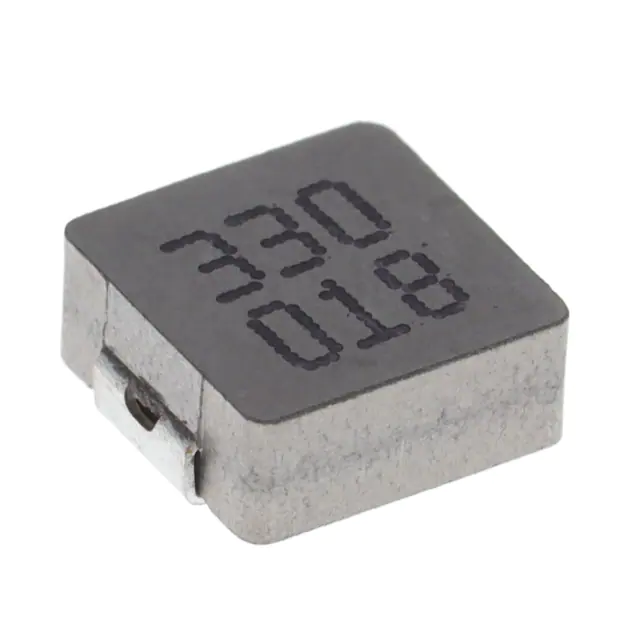

0630CDMCCDS-330MCFIXED IND 33UH 2.1A 258MOHM SMD |
2,039 |
|
规格书 |
0630CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 2.1 A | 2.3A | Shielded | 258mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
BPSC00060630100MS0INDUCTOR POWER |
1,500 |
|
规格书 |
BPSC | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | - | 950mA | Shielded | 65mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|

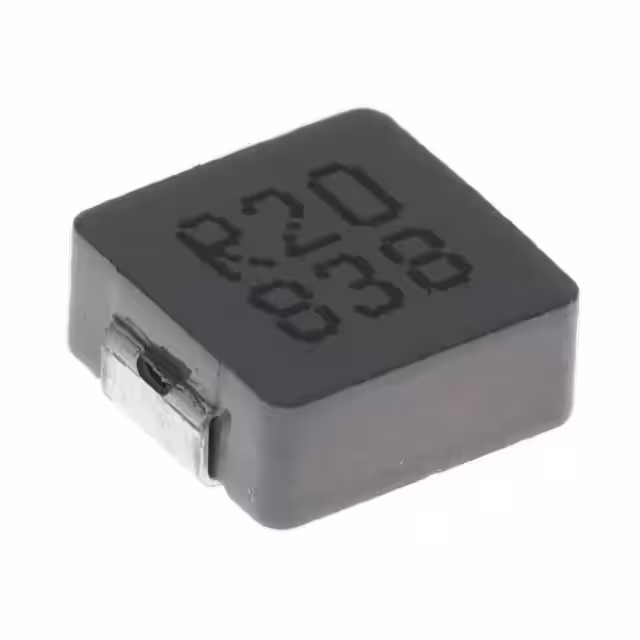

0630CDMCDDS-R20MCFIXED IND 200NH SMD |
1,497 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 200 nH | ±20% | 24 A | 41A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

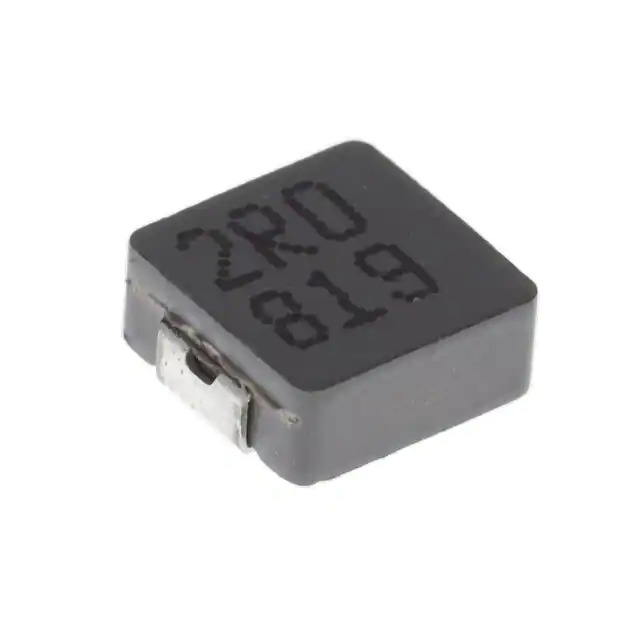

0630CDMCDDS-2R0MCFIXED IND 2UH SMD |
1,409 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2 µH | ±20% | 9.5 A | 14.8A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

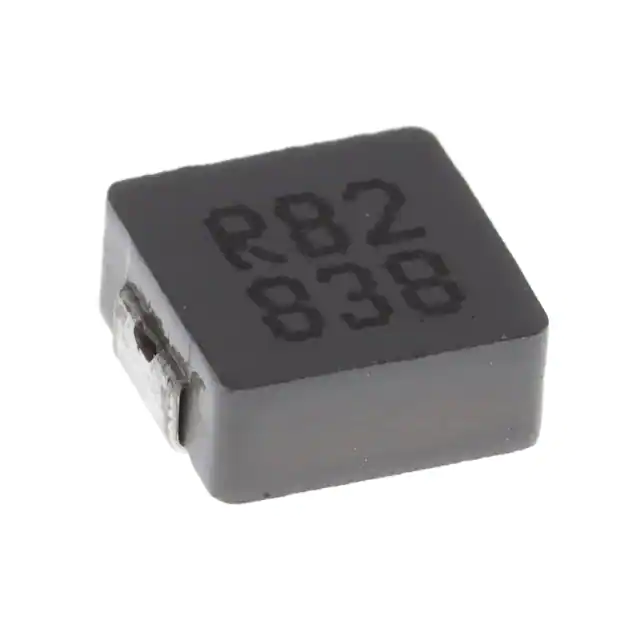

0630CDMCDDS-R82MCFIXED IND 820NH 14.8A 6MOHM SMD |
1,232 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 820 nH | ±20% | 16 A | 20.8A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
0630CDMCDDS-R56MCFIXED IND 560NH 18.8A 4.5MOHM SM |
1,135 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 560 nH | ±20% | 18.8 A | 23.8A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
0630CDMCDDS-R47MCFIXED IND 470NH 20A 4.1MOHM SMD |
3,176 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 470 nH | ±20% | 19.5 A | 24.6A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
ECS-MPI4040R2-4R7-RFIXED IND 4.7UH 2.2A 105MOHM SMD |
2,898 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.2 A | 4.3A | Shielded | 105mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
AMDLA3020Q-3R3MTFIXED IND 3.3UH 2.8A 83 MOHM SMD |
2,795 |
|
规格书 |
AMDLA3020Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 2.6 A | 3.7A | Shielded | 94mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|

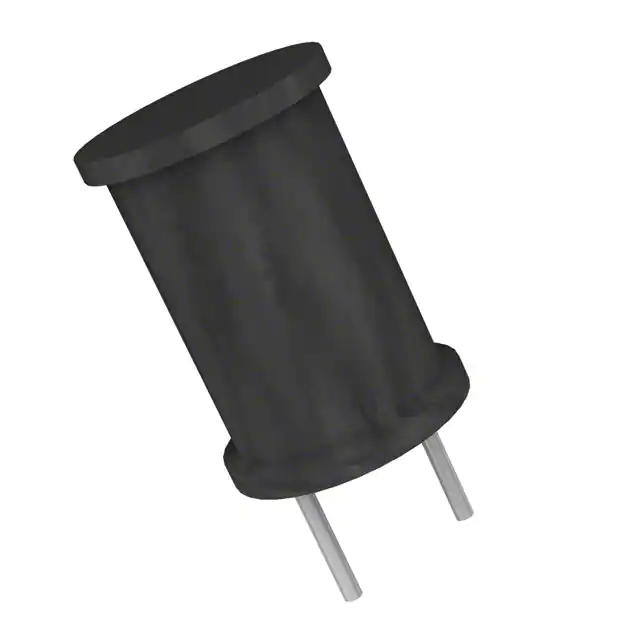

AIUR-02H-101KFIXED IND 100UH 720MA 210MOHM TH |
2,421 |
|
规格书 |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | 1.4A | Unshielded | 210mOhm Max | 20 @ 790kHz | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|

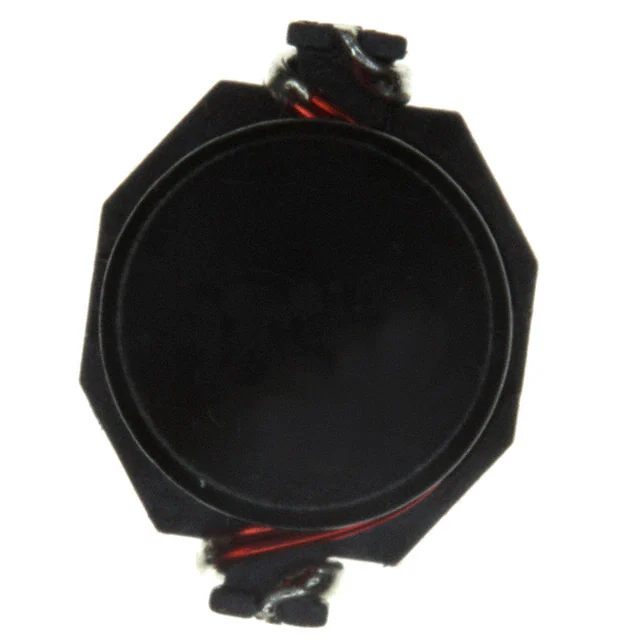

P0751.222NLTFIXED IND 2.2UH 6.1A 15 MOHM SMD |
5,767 |
|
规格书 |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
