在线询价固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXL1V0707-3R3-RFIXED IND 3.3UH 15.1A 9.42 MOHM |
225 |
|
规格书 |
EXL1V0707 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 15.1 A | 15.1A | Shielded | 9.42mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|

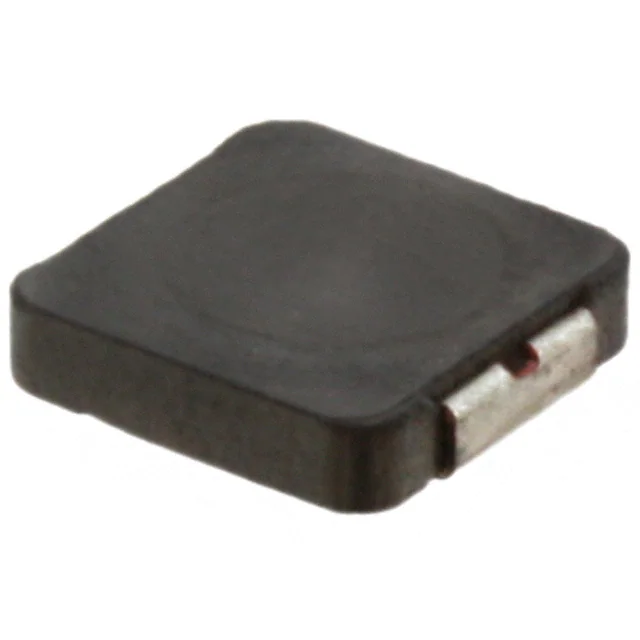

IHLP2020ABERR10M01FIXED IND 100NH 13.5A 4.6MOHM SM |
7,998 |
|
规格书 |
IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 13.5 A | 35A | Shielded | 4.6mOhm Max | - | 256MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
0415CDMCCDS-R22MCFIXED IND 220NH 12A 7.2MOHM SMD |
5,495 |
|
规格书 |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 12 A | 14A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
IHLP2020ABERR47M01FIXED IND 470NH 6.5A 19.2MOHM SM |
4,007 |
|
规格书 |
IHLP-2020AB-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 6.5 A | 18A | Shielded | 19.2mOhm Max | - | 108MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
IHLP1616BZER2R2M1AIHLP-1616BZ-1A 2.2 20% ER E3 |
3,950 |
|
规格书 |
IHLP-1616BZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 3.25 A | 3.25A | Shielded | 48mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|

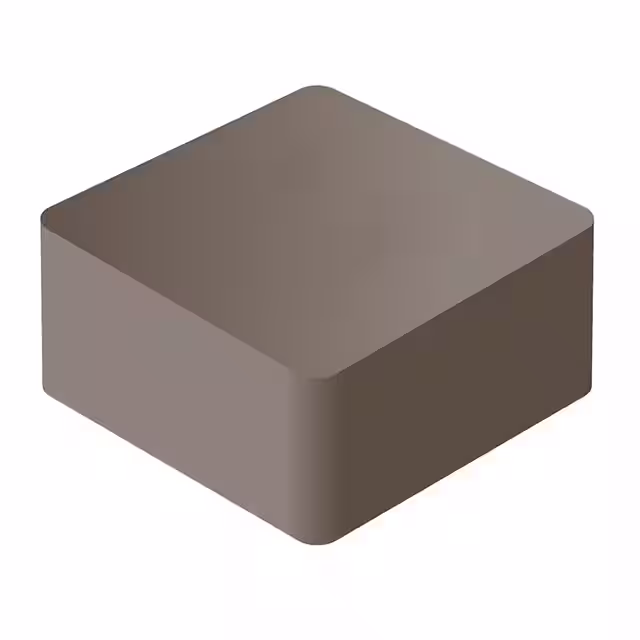

SRP4018FA-R68MFIXED IND SMD |
3,014 |
|
规格书 |
SRP4018FA | Nonstandard | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - |
|
MWSA0618S-R47MTFIXED IND 470NH 11.5A 8.4MOHM SM |
3,000 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 470 nH | ±20% | 11.5 A | 18A | Shielded | 8.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
|
MWSA0603S-5R6MTFIXED IND 5.6UH 5.5A 42MOHM SMD |
2,992 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 5.6 µH | ±20% | 5.5 A | 6.5A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
MWLA0603S-R68MTFIXED IND 0.68UH 5.5MOHM 25000MA |
2,945 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP4018FA-1R0MFIXED IND SMD |
2,890 |
|
规格书 |
SRP4018FA | Nonstandard | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - |
|
|
0415CDMCCDS-6R8MCFIXED IND 6.8UH 2.1A 206.4 MOHM |
2,888 |
|
规格书 |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 2.1 A | 2.5A | Shielded | 206.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
0415CDMCCDS-2R2MCFIXED IND 2.2UH 3.3A 78MOHM SMD |
2,455 |
|
规格书 |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.3 A | 5.5A | Shielded | 78mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
SBC3-332-151FIXED IND 3.3MH 150MA 7.66OHM TH |
1,961 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 150 mA | 170mA | Unshielded | 7.66Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|
|
0415CDMCCDS-3R3MCFIXED IND 3.3UH 3.2A 92.4MOHM SM |
1,823 |
|
规格书 |
0415CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 3.2 A | 4A | Shielded | 92.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
|
SBC3-681-361FIXED IND 680UH 360MA 1.62OHM TH |
1,646 |
|
规格书 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 360 mA | 380mA | Unshielded | 1.62Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.453" (11.50mm) |
|

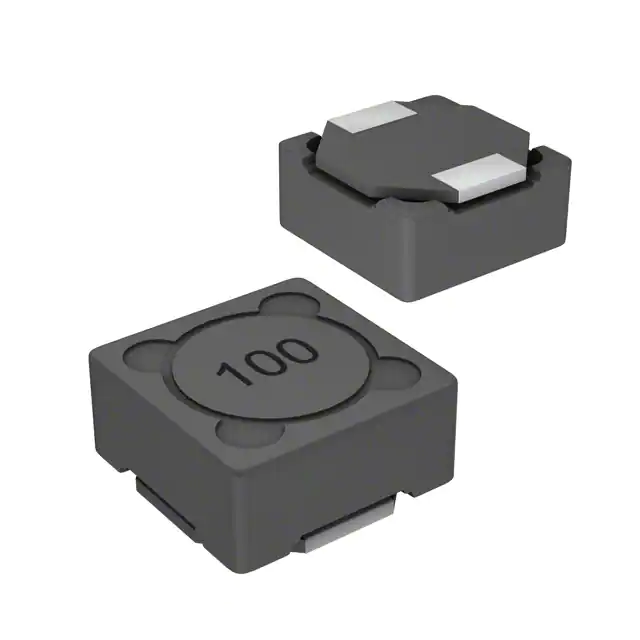

SRR1260-1R5YFIXED IND 1.5UH 8.8A 9.5MOHM SMD |
1,590 |
|
规格书 |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.8 A | 9.9A | Shielded | 9.5mOhm Max | 24 @ 7.96MHz | 86MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
MWLA0624S-R47MTFIXED IND 0.47UH 5.1MOHM 26000MA |
1,500 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 15 A | 26A | Shielded | 5.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
|
MWLA0603S-R20MTFIXED IND 0.2UH 2.7MOHM 41000MA |
1,500 |
|
规格书 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 200 nH | ±20% | - | - | Shielded | 2.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
MWSA0618S-1R0MTFIXED IND 1UH 8.5A 16 MOHM SMD |
1,500 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 8.5 A | 12A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
|
MWSA0624S-1R5MTFIXED IND 1.5UH 8.2A 20MOHM SMD |
1,500 |
|
规格书 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 8.2 A | 13.5A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
